By Tony Thacker – Images by Marc Gewertz

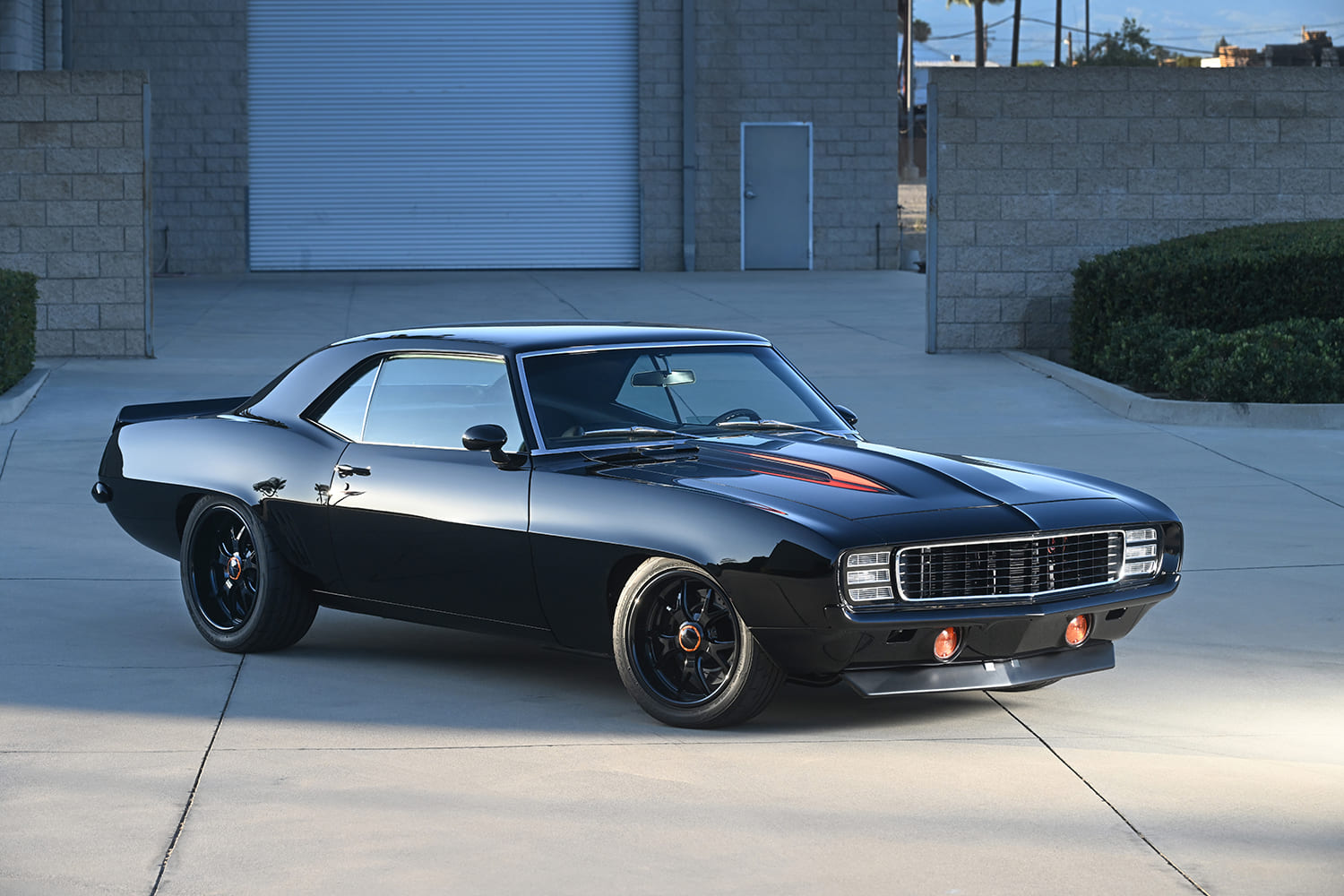

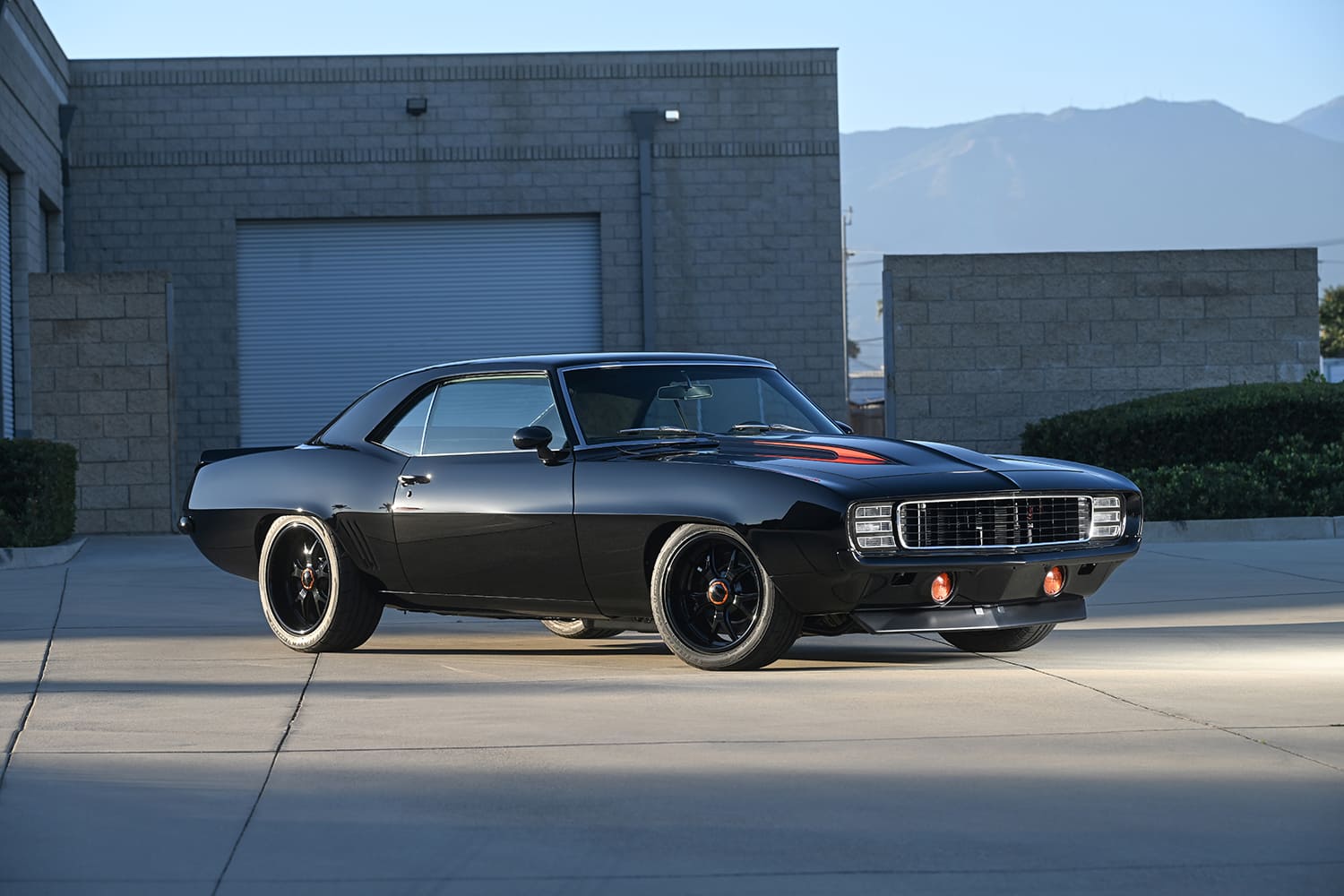

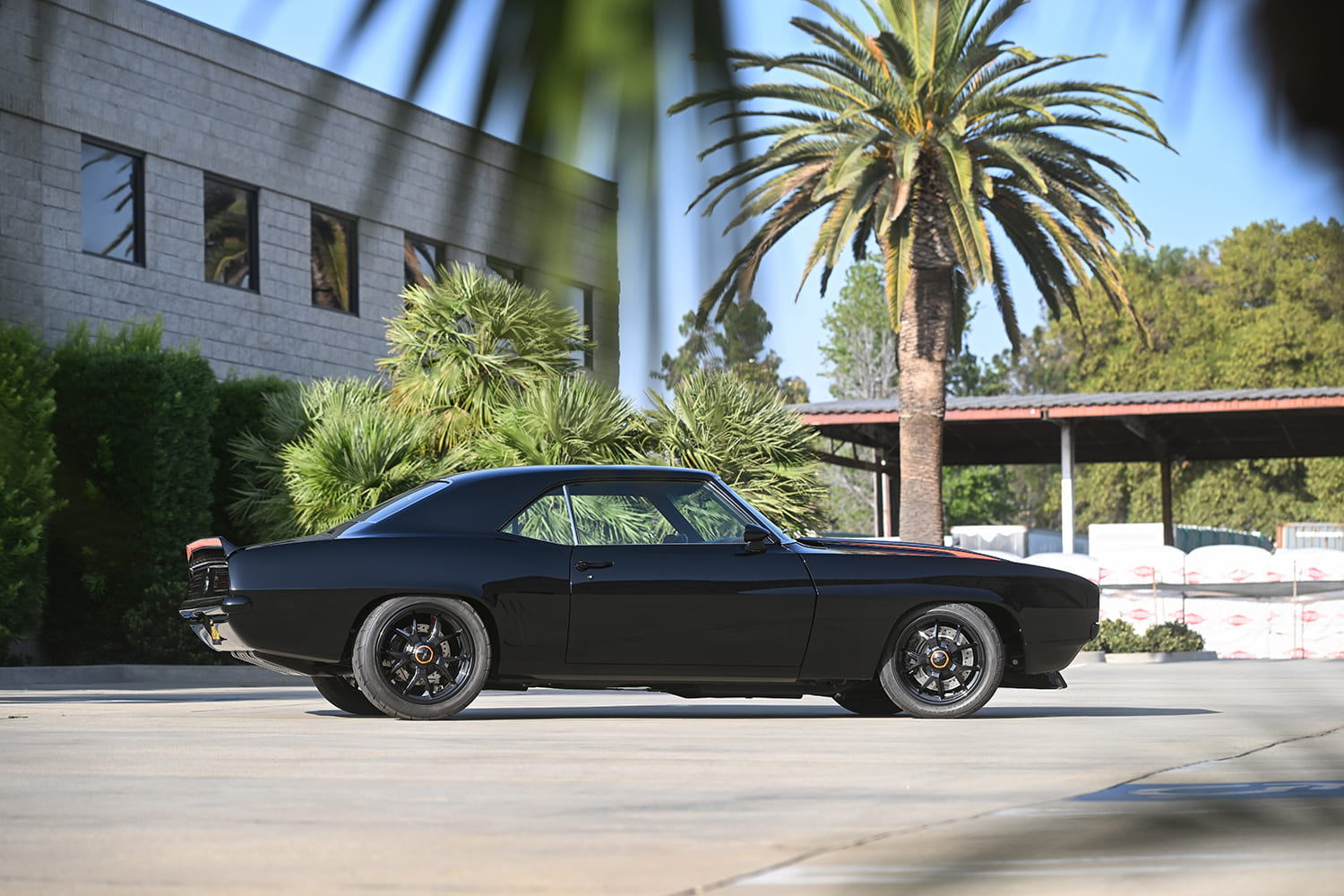

Doing things with your father, for your father, or in memory of your father is one of life’s great pleasures. And so it was that Jeff Pont reworked this 1969 Camaro in memory of his father, Duane.
“Duane was a lifelong muscle car enthusiast and for as long as I can remember,” Jeff says, “he dreamed of owning a 1969 Camaro. Years ago, I was blessed to spend a weekend with him at Barrett-Jackson where he fell in love with one particular ’69. I’ll never forget the moment it came across the auction block—I placed a bid, won it, and looked over to see his face filled with pure joy and disbelief.
“That car quickly became one of his greatest joys,” Jeff fondly remembers. “He loved taking it out for weekend drives and especially enjoyed picking up his grandchildren from school in it. It was a special tradition.
“Unfortunately, Duane was diagnosed with lung cancer and a few weeks before he [died], I took the car out to keep it running and refuel it,” Jeff says. “After I parked it back in his garage, it was just a little off from straight. That small detail mattered to him—he wanted everything just right, especially his pride and joy. Despite his declining health, he got in to straighten it out. Sadly, he accidentally hit the gas and bumped the front end into the garage wall. He was heartbroken. I came over immediately and reassured him, ‘Don’t worry, Dad, it can be fixed. I’ll make it even better.’ Unfortunately, just one week later, he [died]; but I never forgot that promise.”
Eventually, the car was taken to Jeff’s friend Steve Sbelgio’s Eclipse Engineering that used to be in Whittier, California, where Sbelgio removed the TREMEC and replaced it with a 4L80E built by Dave Dibbs at Orange County Transmissions in Costa Mesa. Steve also removed the existing GM MEFI engine controller used on all Ram Jet engines and replaced it with a Holley Dominator ECM for both the engine and the trans.
Unfortunately, things went a bit south when it was discovered that some previous rear fender repair work was not quite up to scratch. A deep dive revealed that new quarter-panels had been welded on top of the rotten ones partially left underneath. There was nothing for it but to have Pauly Rivera at Mick’s Paint, in Pomona, California, remove the quarter-panels and replace them along with the inner fenders with new sheetmetal. “While you’re at it,” Jeff said, “let’s smooth out the firewall, fix the funked up inner front fenders, detail the bumpers, and repaint the car. Oh, and let’s install stack injection and black out everything.”
A bit of TLC turned into a major overhaul at Mick’s, but the result was worth the effort. Fabricator Rivera began by removing the rear quarters from the door all the way back to the rear panel and up to the roof panel—it was a major task after which Rivera installed new Dynacorn quarters. Another unforeseen problem was the discovery of holes around the roof where the factory vinyl roof trim had been removed. The holes, and there were many, that had been filled with Bondo and not welded, had to be ground out and welded.
Attention next moved to the front where the gnarly inner fenders were removed and extensively reworked as was the firewall while all the A/C lines, wiring, and so on were carefully rerouted and hidden along with the wiper motor. Meanwhile, the tops of the framerails, that would be seen, were likewise massaged for a smooth finish.

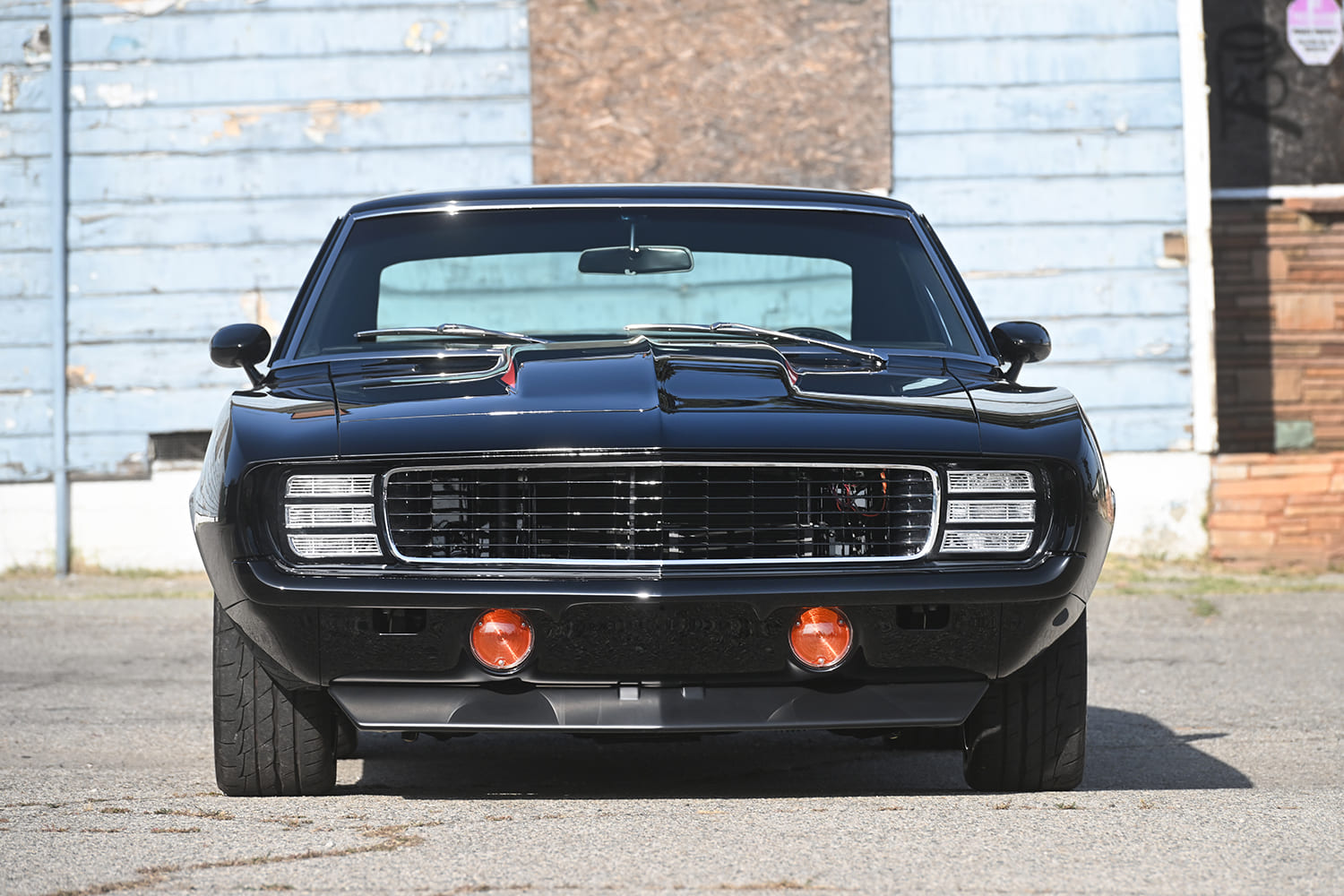

Having completed the major bodywork, Rivera moved onto the bumpers, which were cut, shut, shaved and re-contoured for a more precise fit to the body. Again, it was lots of work that would go mostly unnoticed, but it’s those details that separate the good from the bad. From Rivera’s fab department Jeff’s Camaro was passed along to Mick’s paint team. “It’s always a challenge to improve on an already-nice car,” Mick says, “but Jeff had a vision for this black-on-black tribute to Duane and entrusted us to execute it. We encountered a few more problems than we anticipated but hopefully we executed the rebuild with attitude and taste.”

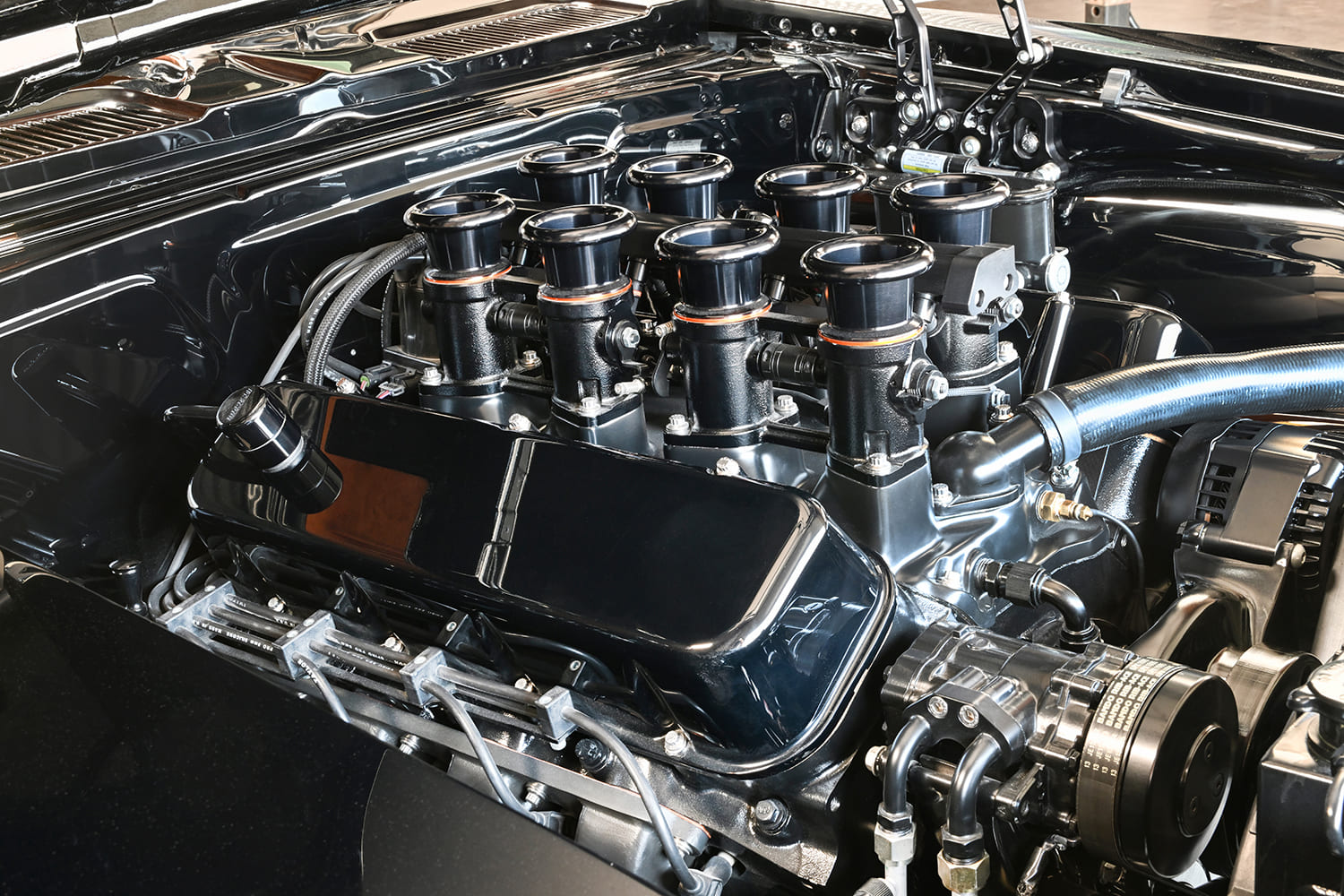

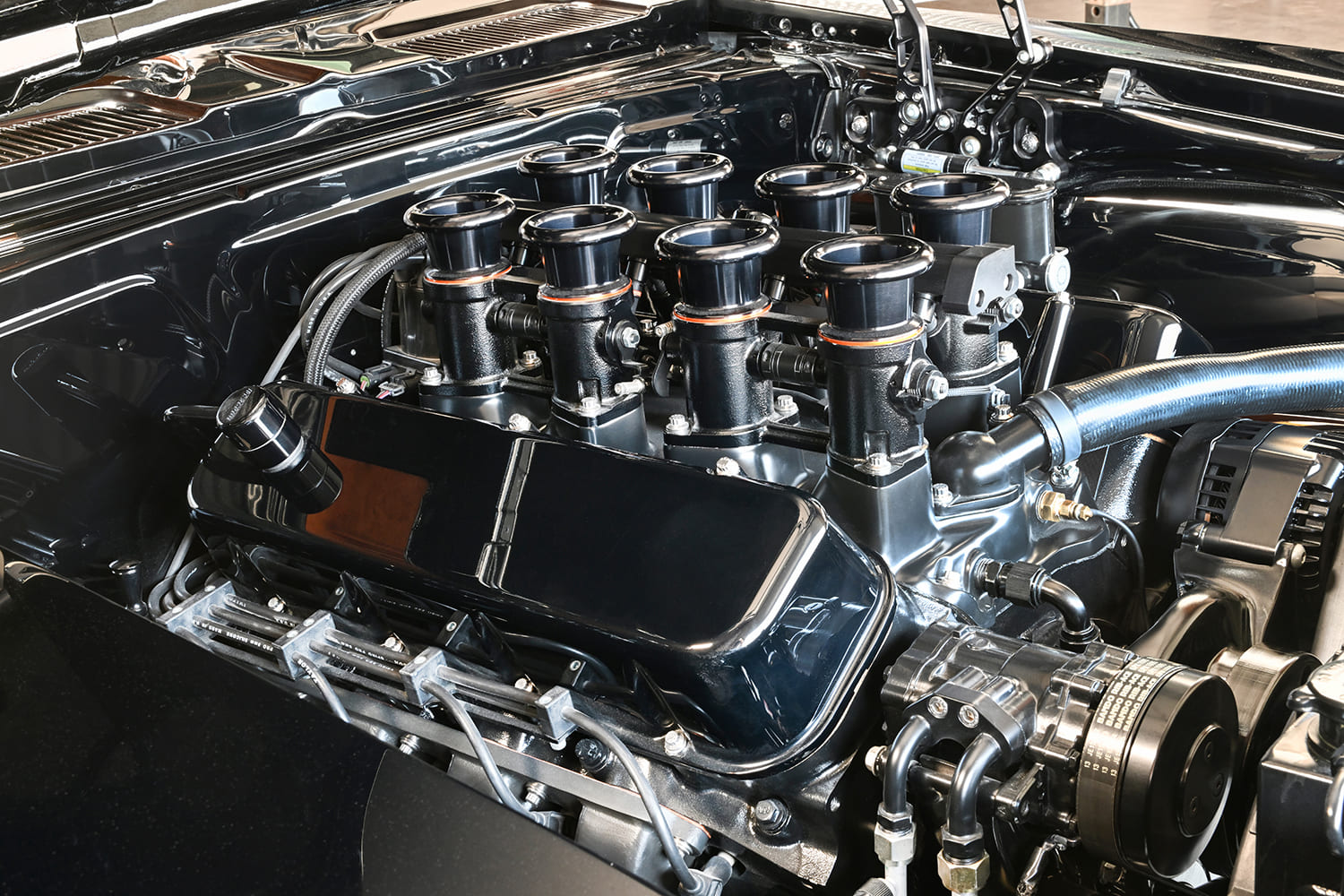

Simultaneous to all the bodywork, Sbelgio was working on replacing the GM MEFI system with a Borla eight-stack Chevrolet V-8 injection kit with 50mm IDA throttle bodies for oval-port heads. According to Sbelgio, “This is a fairly simple swap, however, new fuel lines and throttle linkage using a Lokar pedal and cable were required. We retained the factory Ram Jet distributor but used a Holley engine management system to control idle speed and ignition timing. The most time-consuming operation was the balancing and synchronization of the injectors before developing the calibration.” Once the componentry had been determined, all the parts were detailed in black with orange anodized accents to match the graphics and wheels.
“This car is now a legacy piece.” Jeff surmised, “As a family of car lovers, we plan to keep it in the family for generations. My family and I all take joy in cruising together, and I know my dad is smiling down from heaven—especially knowing this Camaro might end up in a magazine.”
Check out this story in our digital edition here.
TECH CHECK
Owner: Jeff Pont
Vehicle: 1969 Camaro
Engine
Type: Chevy 502 Ram Jet
Displacement: 502 ci
Compression Ratio: 9.6:1
Bore: 4.47 inches
Stroke: 4 inches
Builder: GM
Rotating Assembly: GM
Valvetrain: GM
Camshaft: Hydraulic roller
Induction: Borla eight-stack
Fuel Injection: Borla eight-stack custom finish
Headers: Sanderson QP cast
Valve Covers: Moroso billet, smoothed and painted by Mick’s Paint, Moroso breathers moved to the rear
Accessory Drive: Holley
Ancillaries: SPAL dual fans controlled by Holley management system
Drivetrain
Transmission: 4L80E
Torque converter: Custom Pro Torque 2,500-rpm stall
Rear Axle: Rebuilt 12-bolt Posi
Chassis
Front Suspension: KYB shocks
Rear Suspension: KYB shocks
Brakes: Wilwood discs
Master Cylinder: Wilwood
Booster: CPP HydraStop
Suspension Mods: Lowered
Wheels & Tires

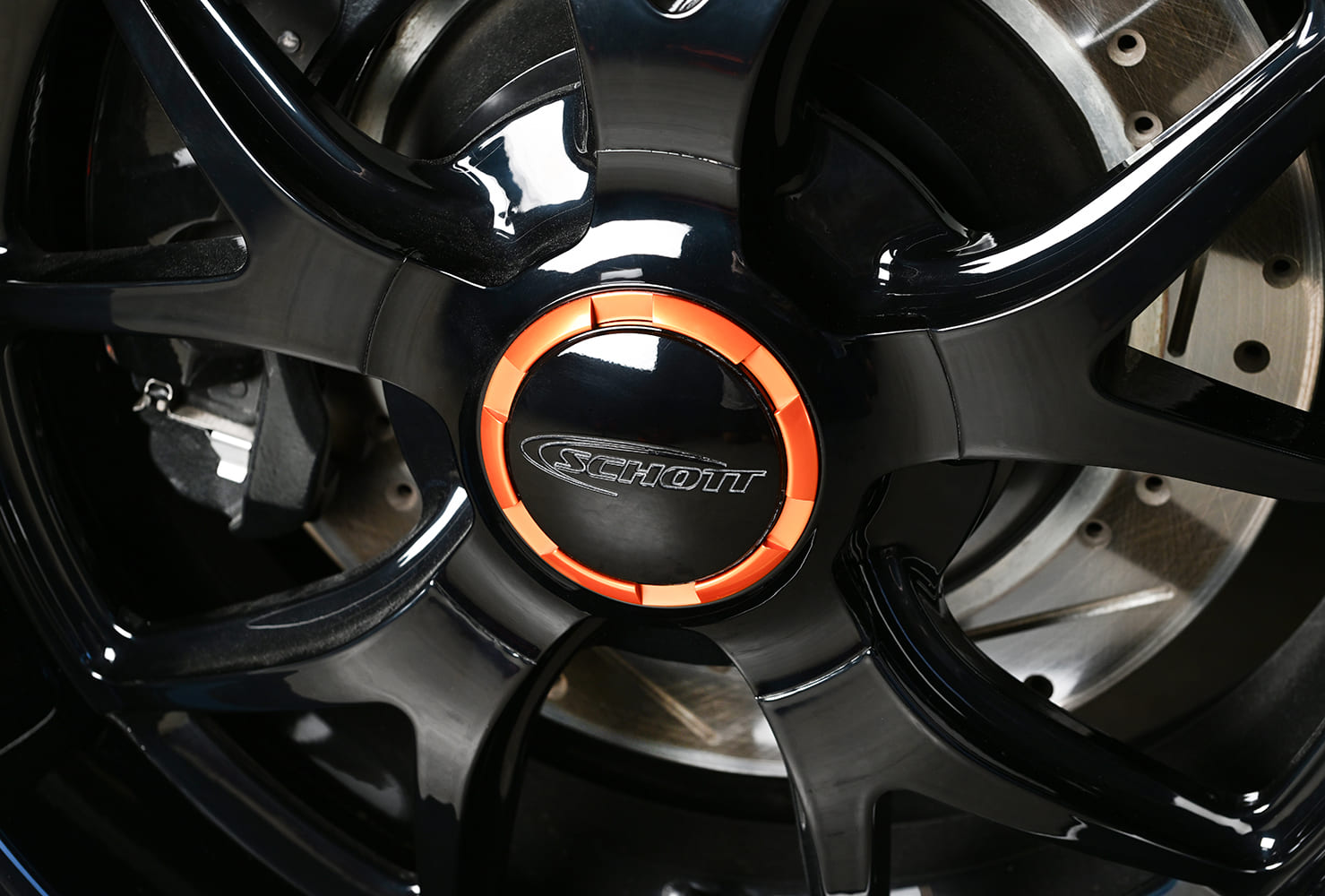

Wheels: Schott GT Cover-Loc painted black
Tires: Firestone Firehawk, 235/45R17 front, 275/40R18 rear

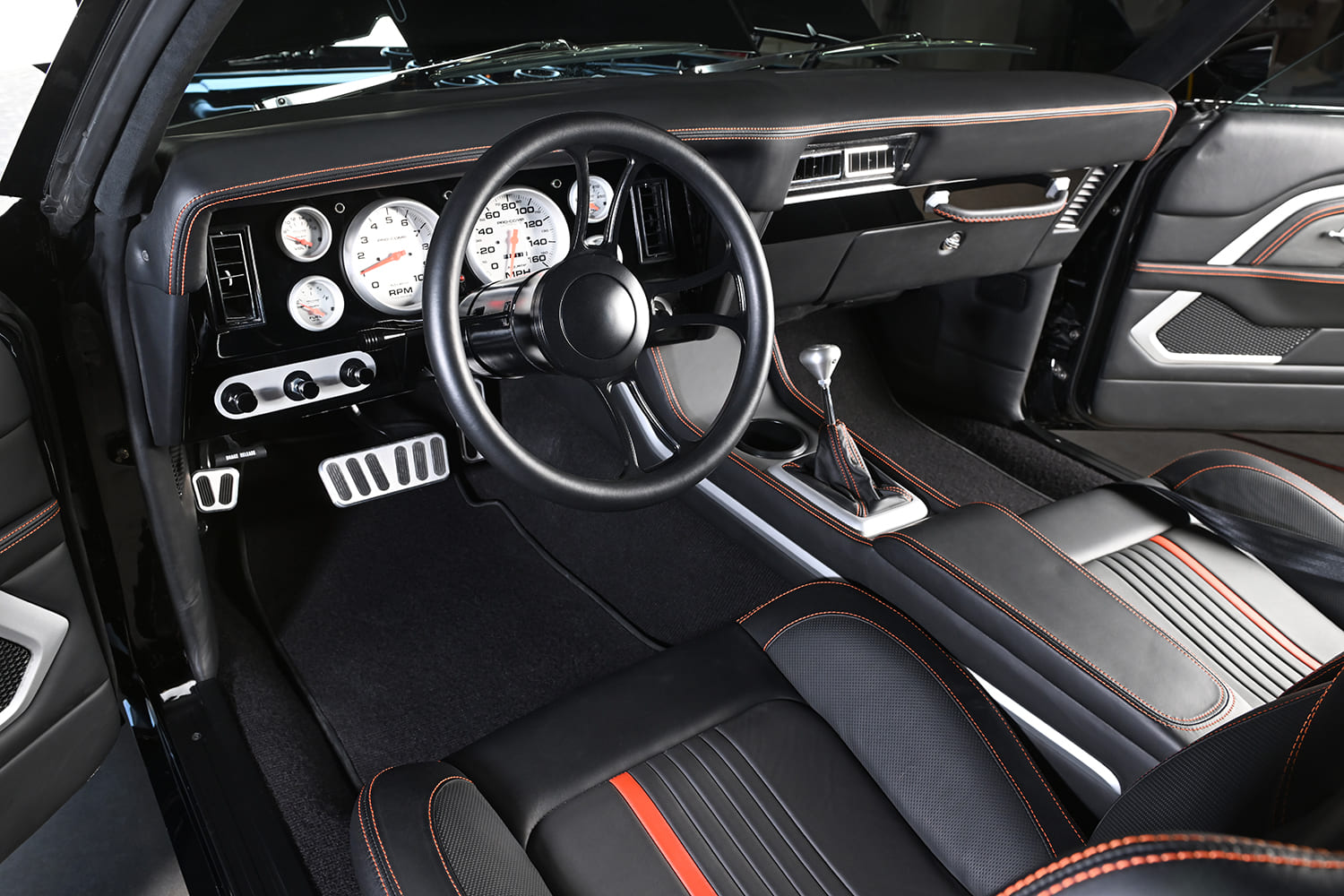

Interior

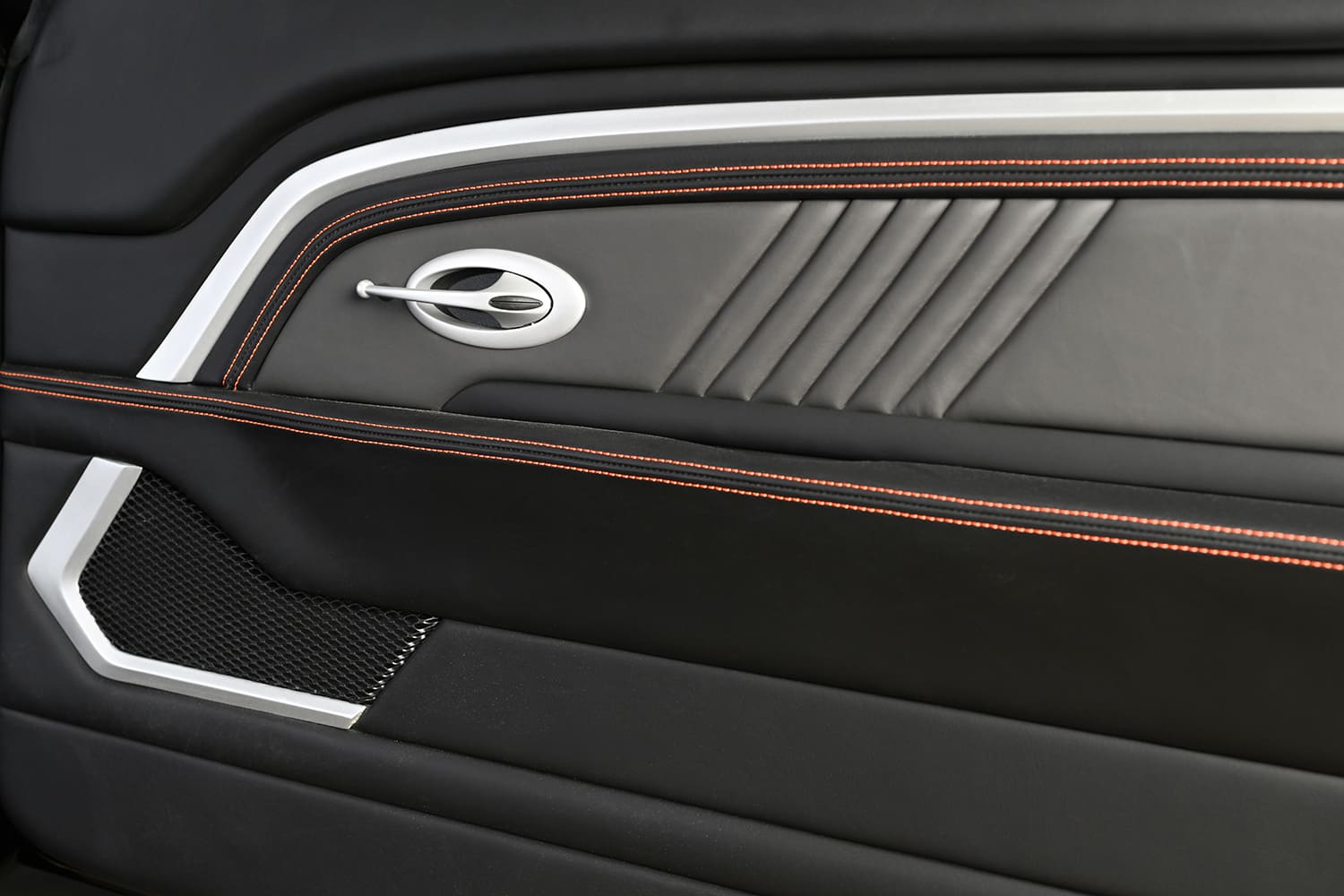

Upholstery: Gabe’s Custom Interiors, center console reworked by Collins Interiors

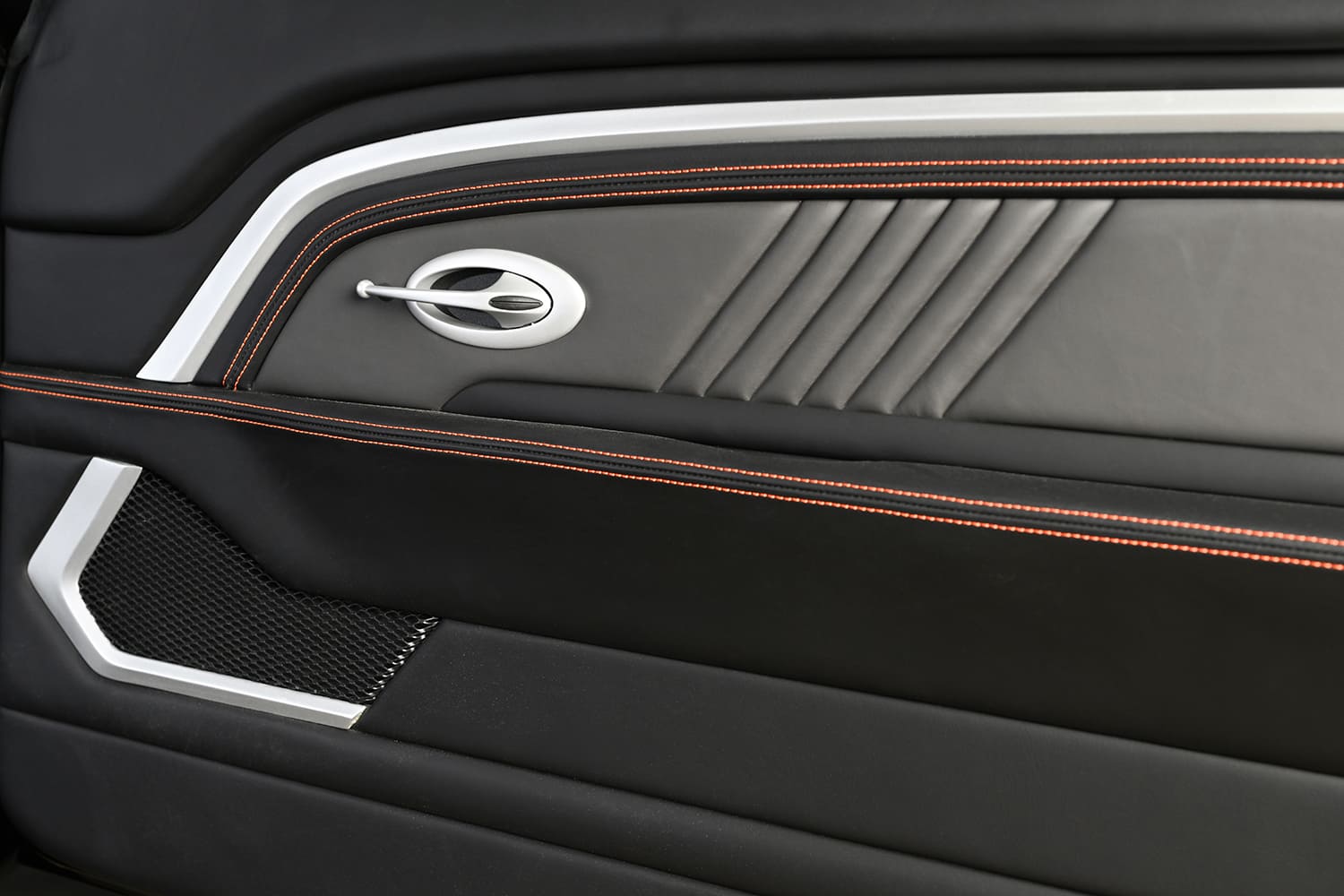

Trim: Custom-made aluminum by Gabe’s

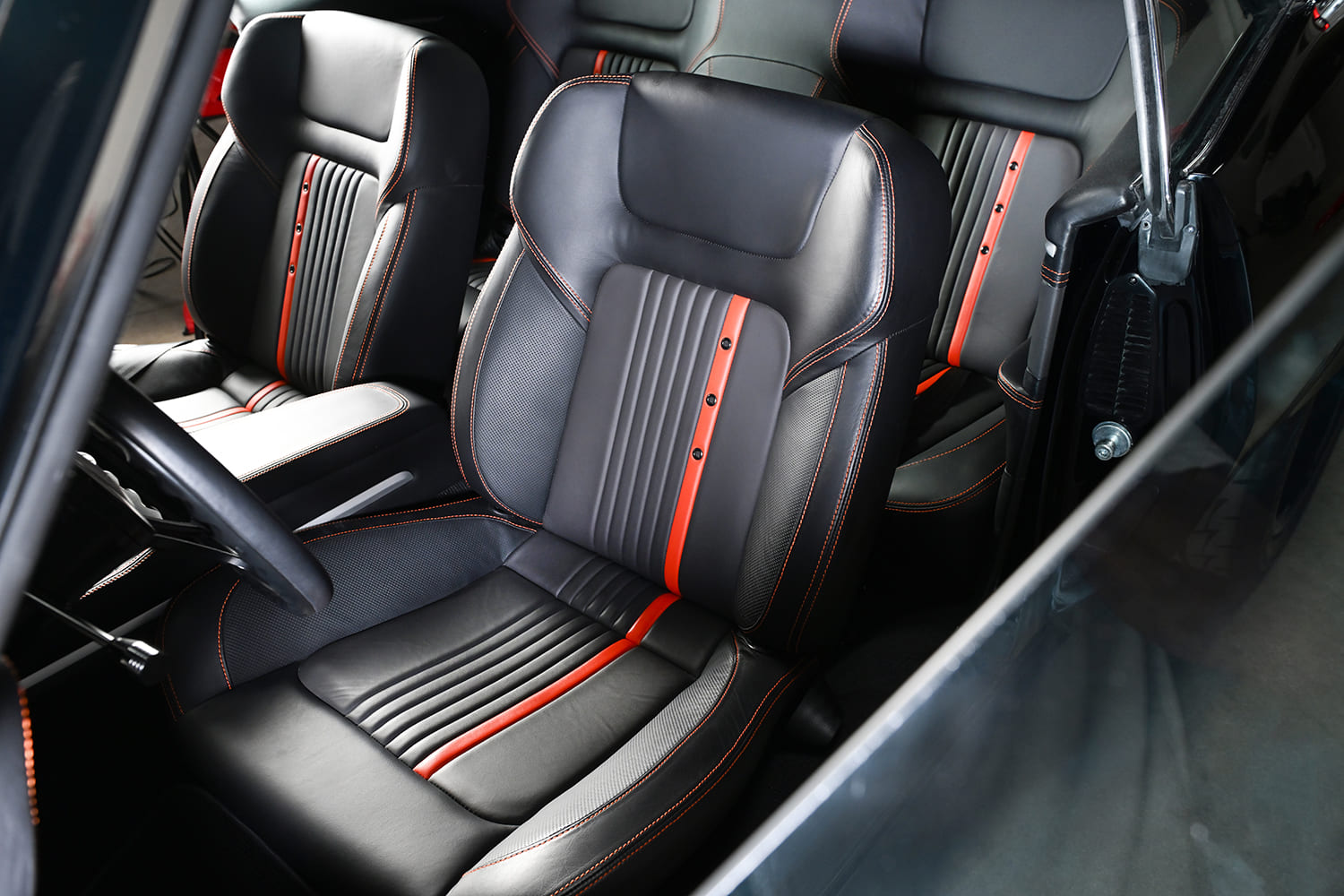

Seats: Custom upholstered

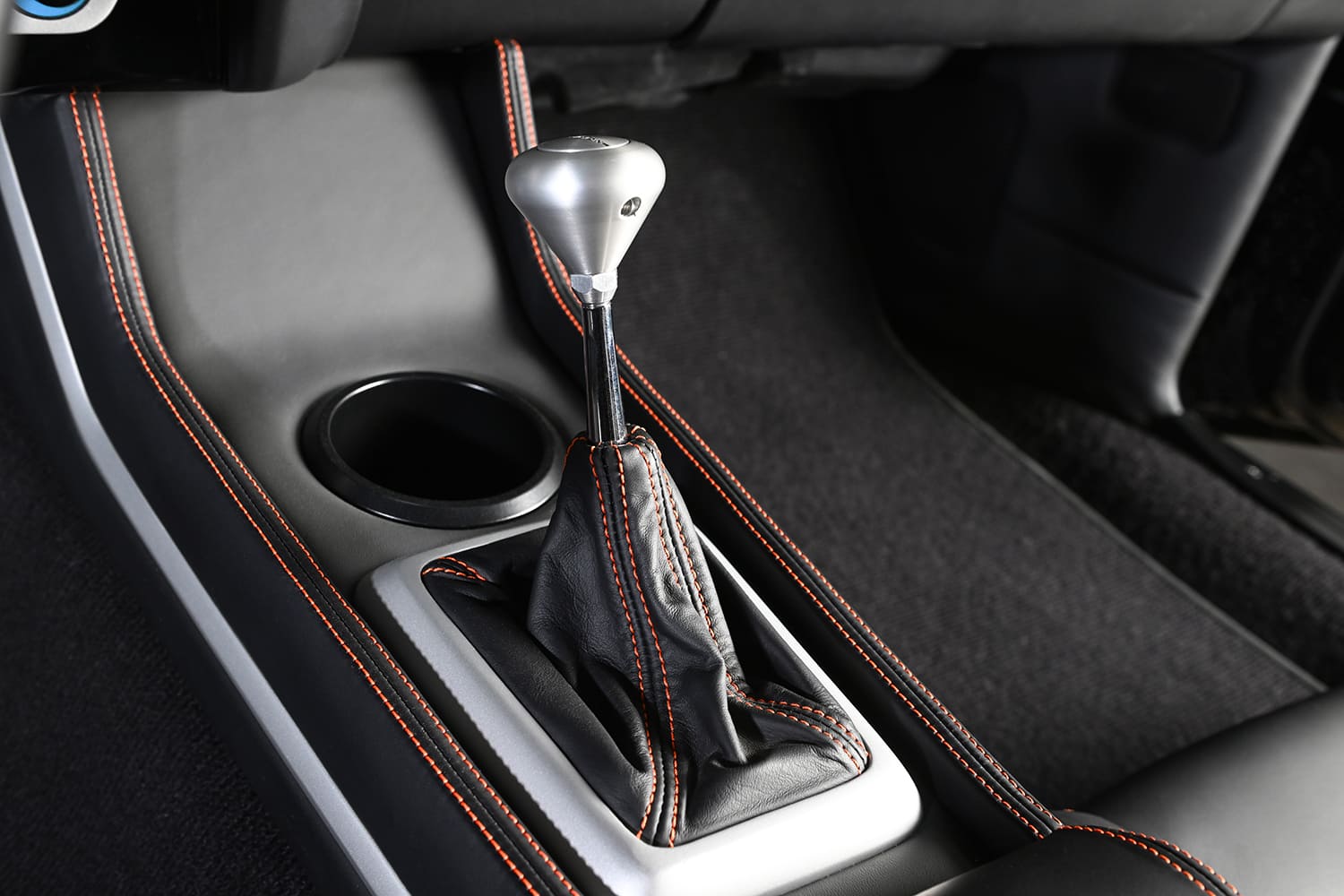

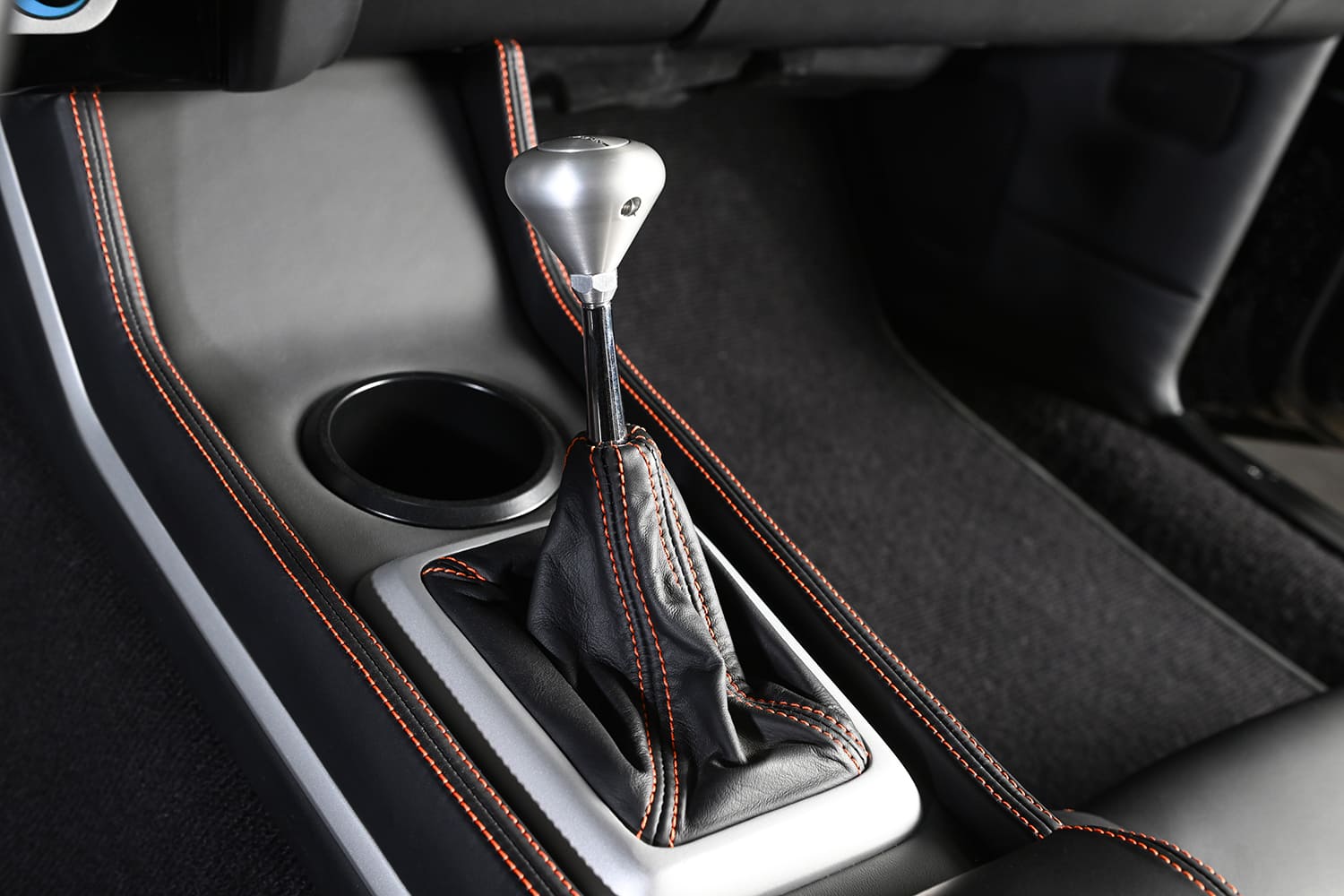

Shifter: Lokar

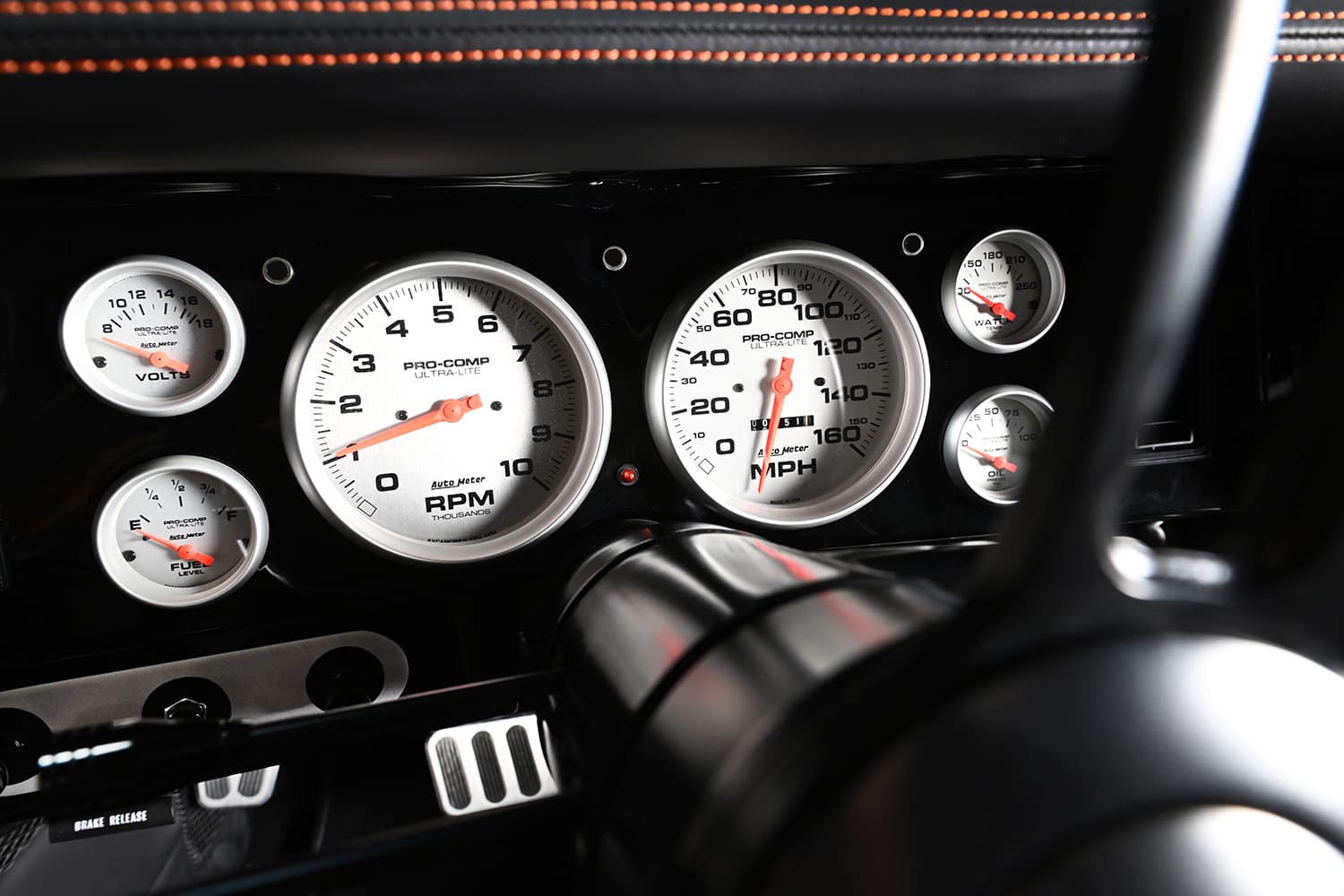

Instrumentation: Auto Meter Pro Comp Ultra-Lite Analog
HVAC: Vintage Air
Exterior
Bodywork and Paint: Mick’s Paint (Pomona, CA); custom smooth inner fenders by Pauly Rivera at Mick’s Paint
Firewall: Custom by Pauly Rivera at Mick’s Paint
Paint: PPG

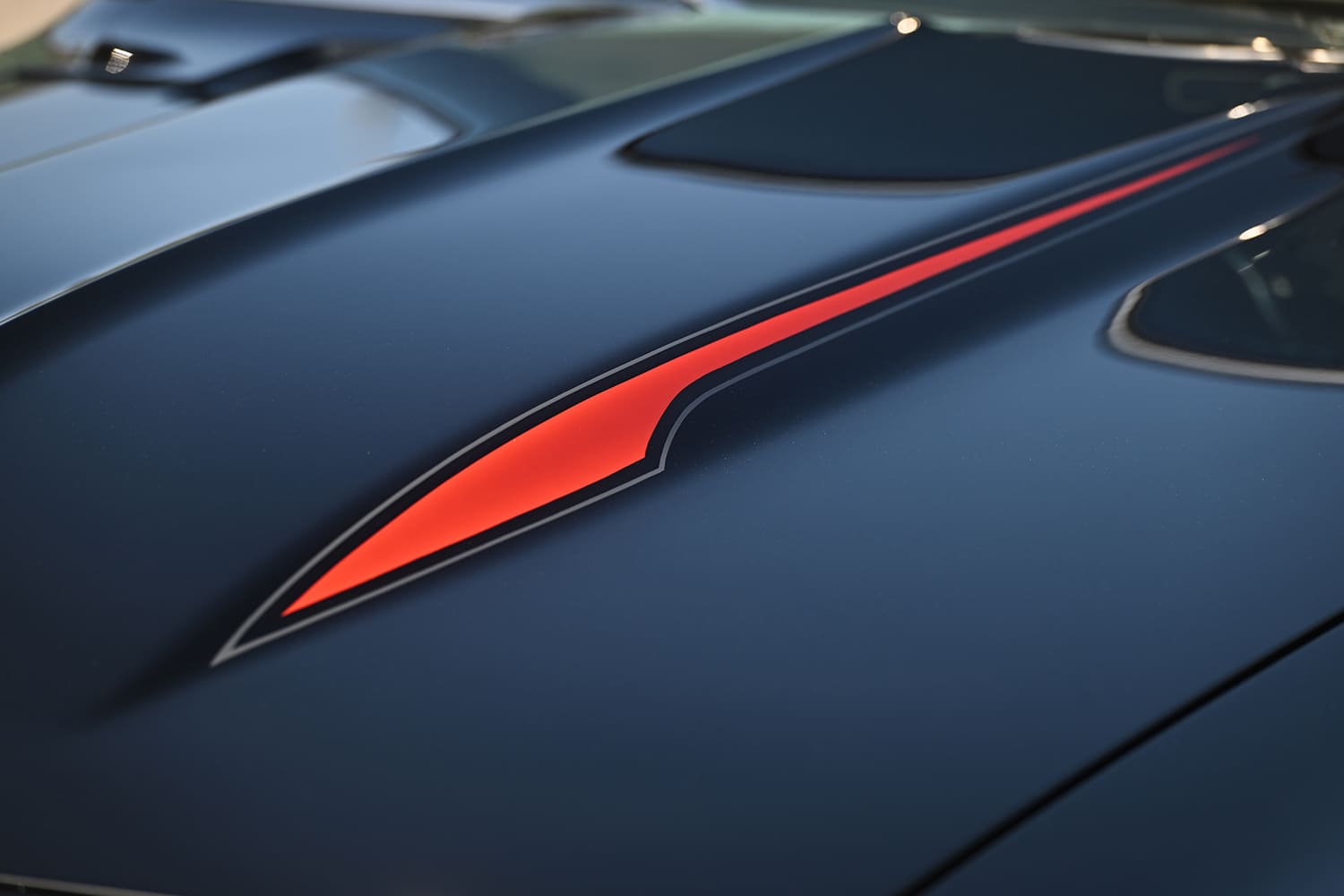

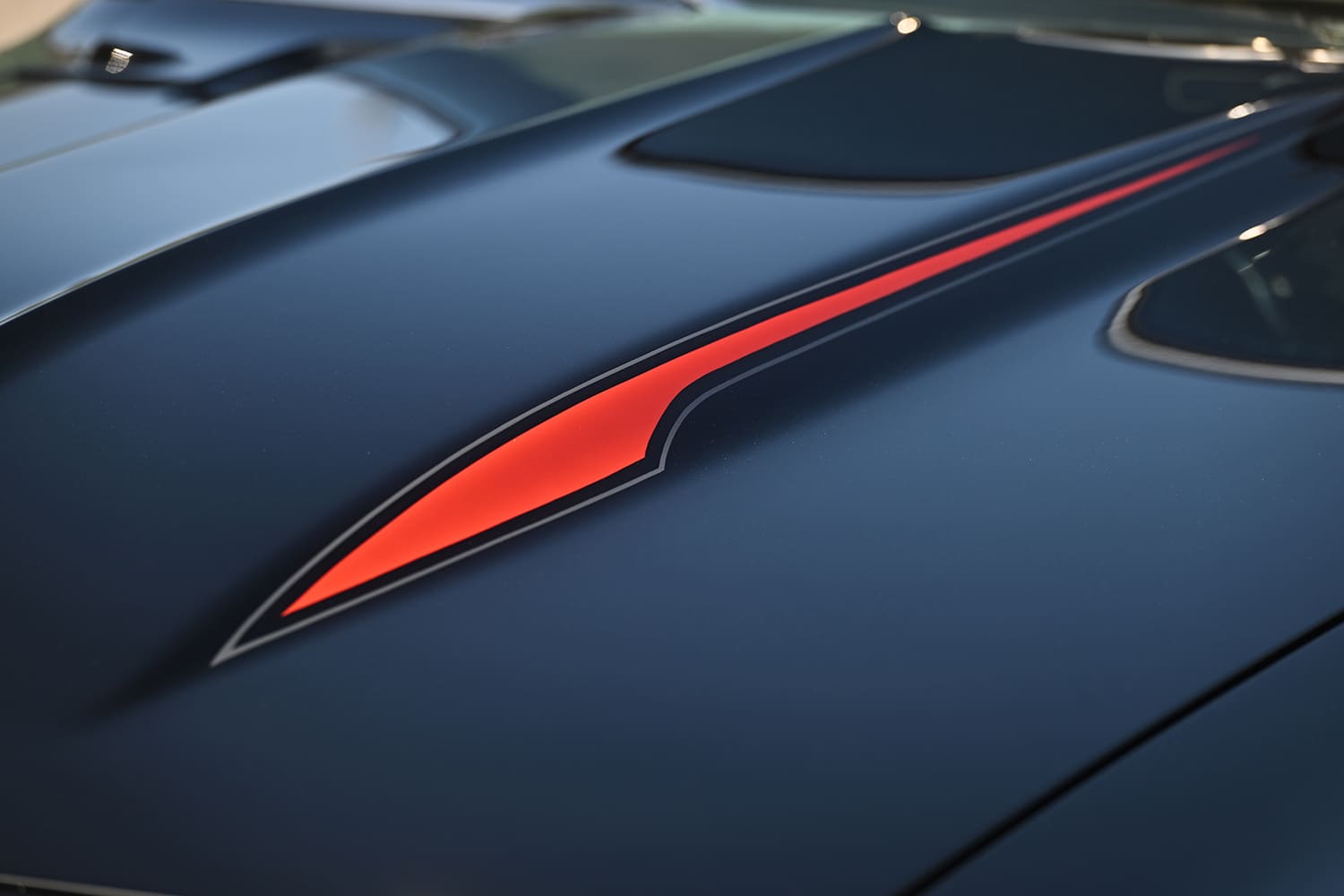

Graphic Design: Eric Brockmeyer
Graphics: Brad King

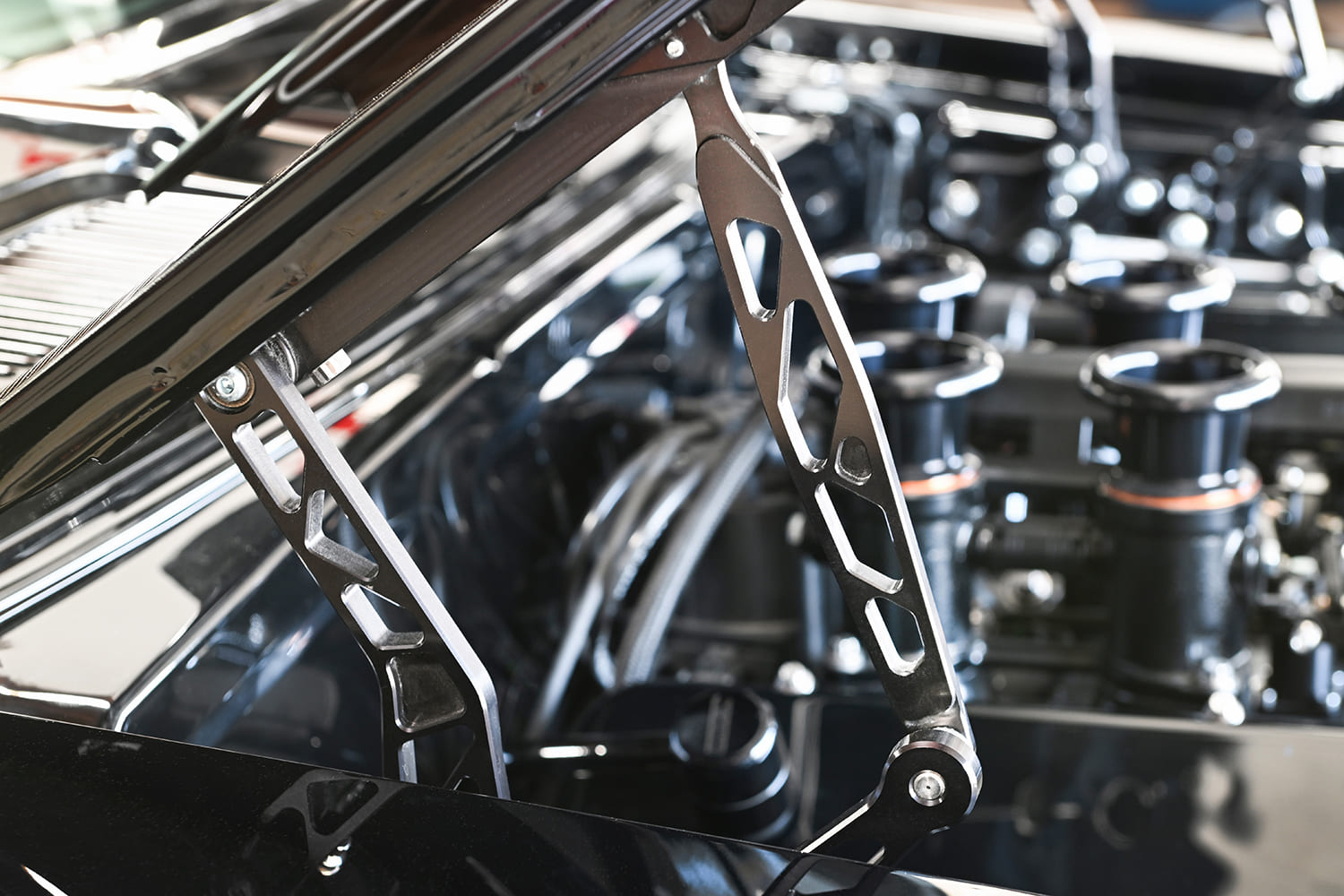

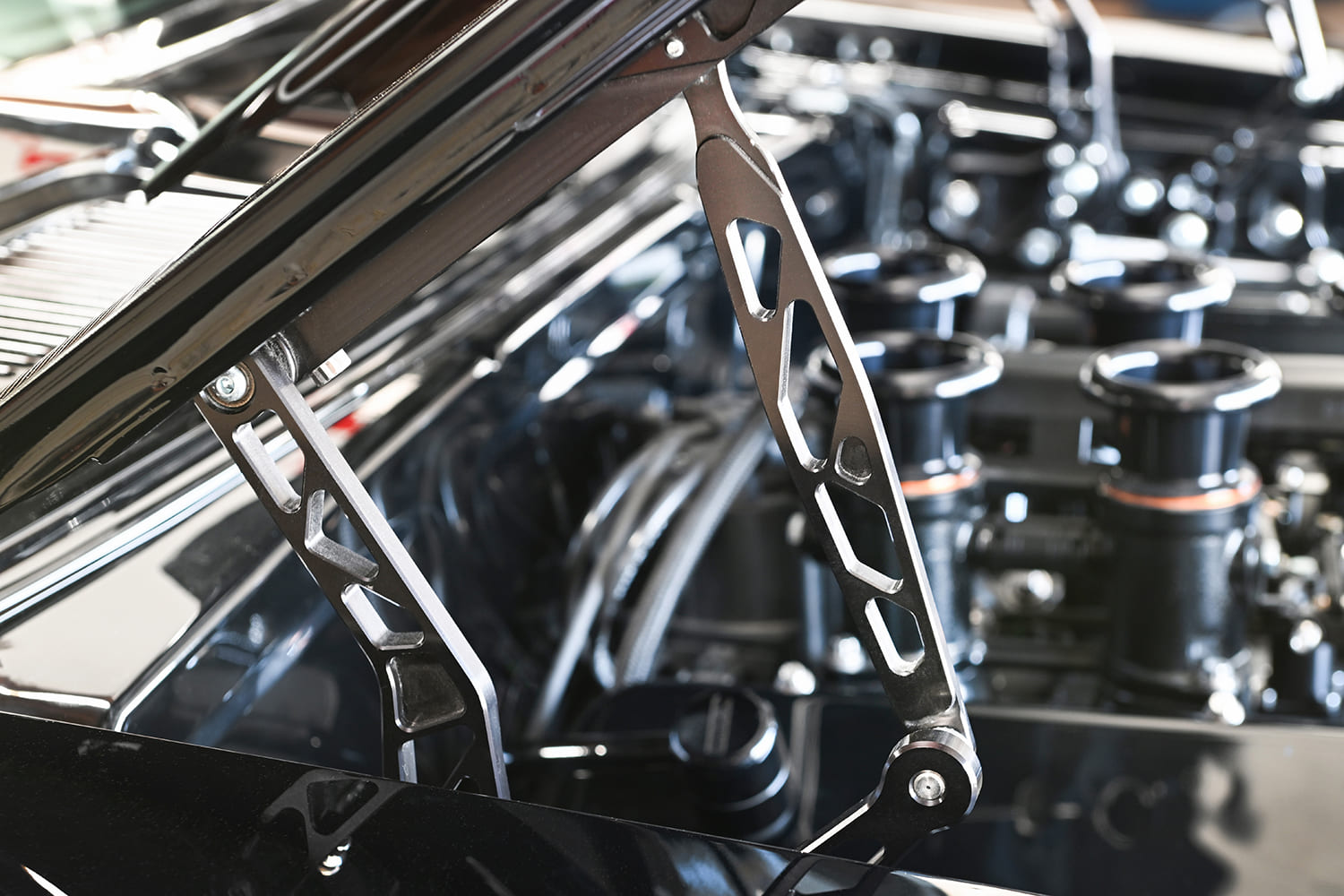

Hood Hinges: Eddie Motorsports
Grille: Stock
Bumpers: Smoothed and shaped by Pauly Rivera at Mick’s Paint
Headlights: Stock

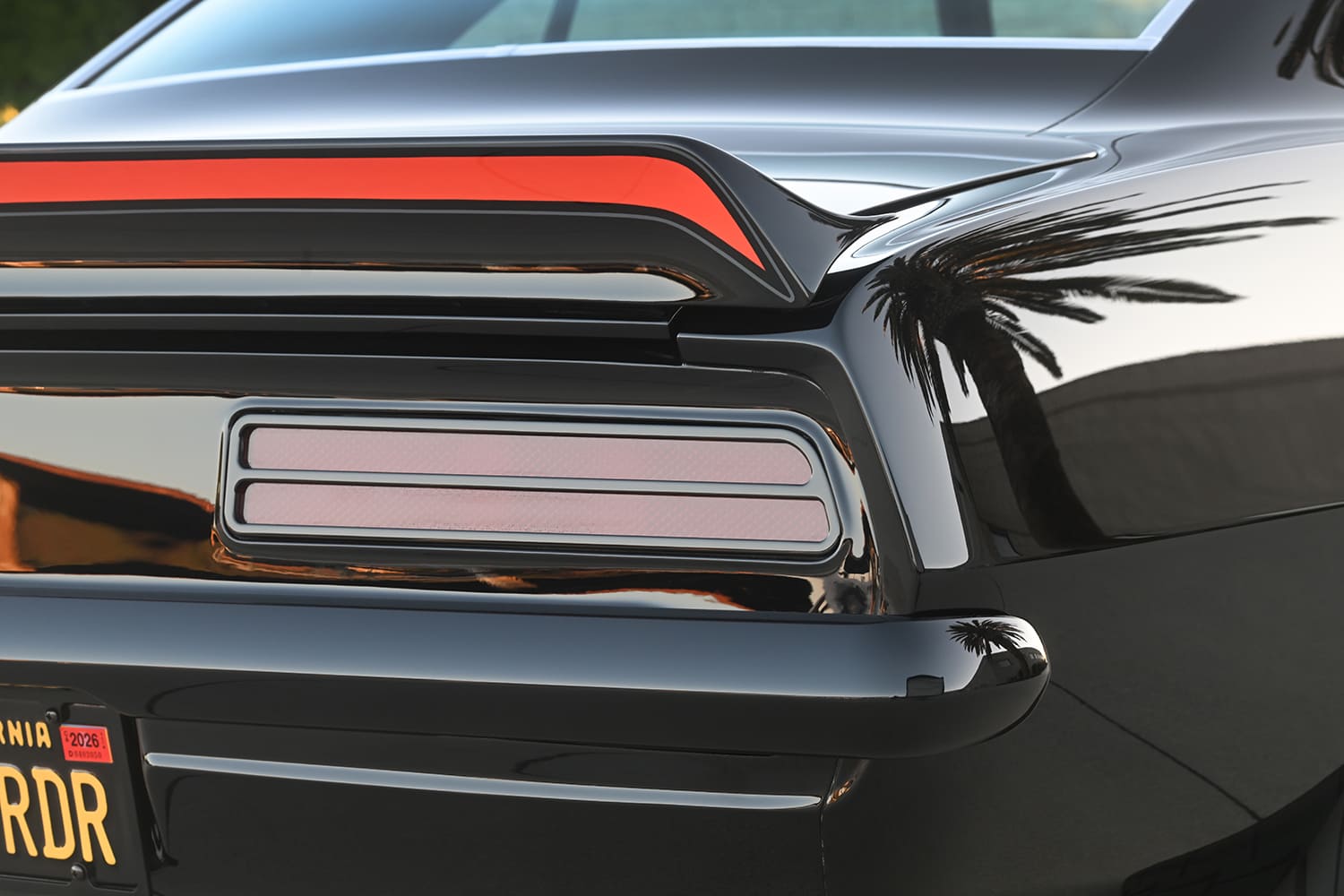

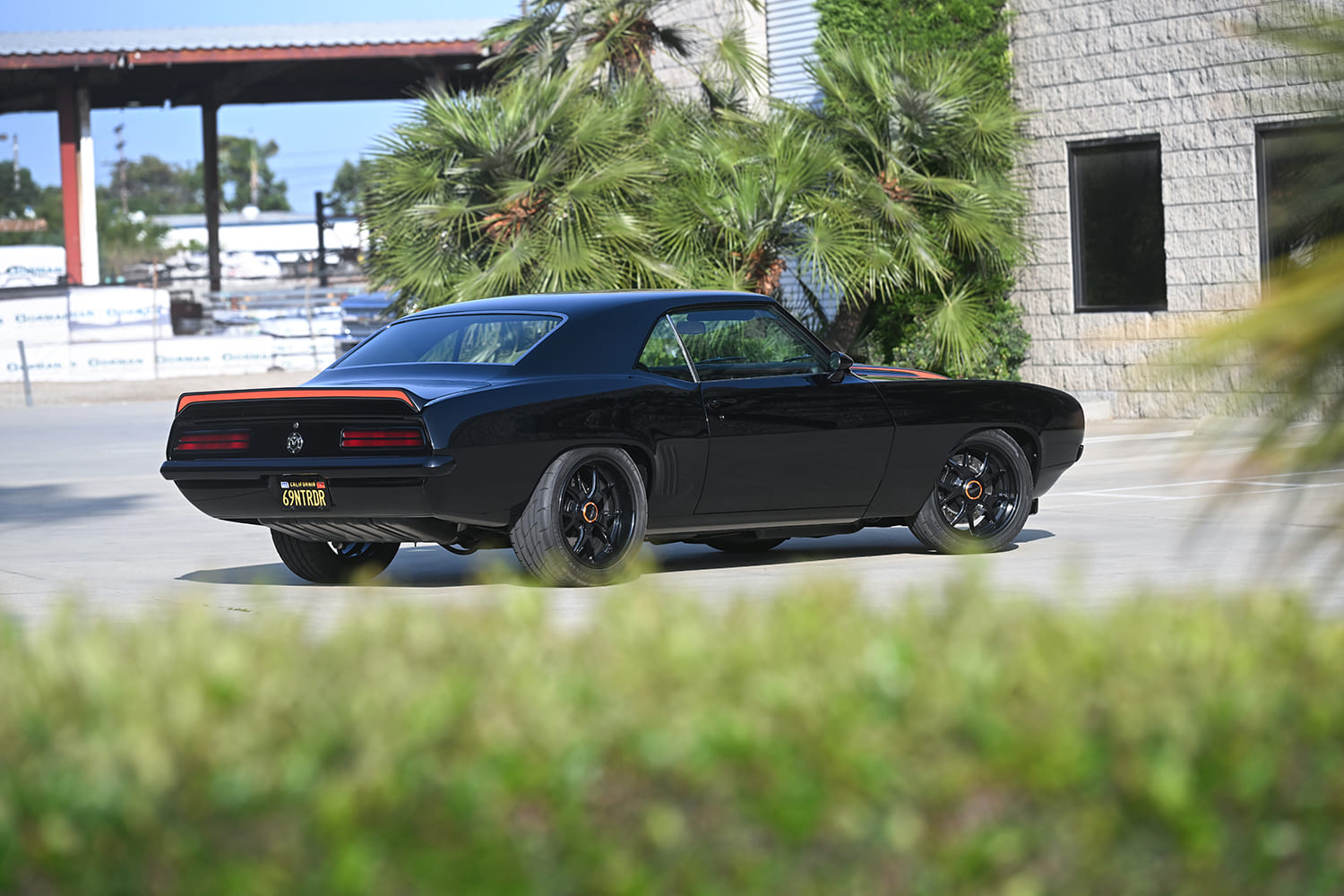

Taillights: Billet frames painted black, custom lenses
Side Mirrors: 1970 Camaro
Door handles: Eddie Motorsports
