Next Level Corvette Performance with LS3 Power & Roadster Shop Chassis Suspension
By Brian Brennan – Photography NotStock Photography

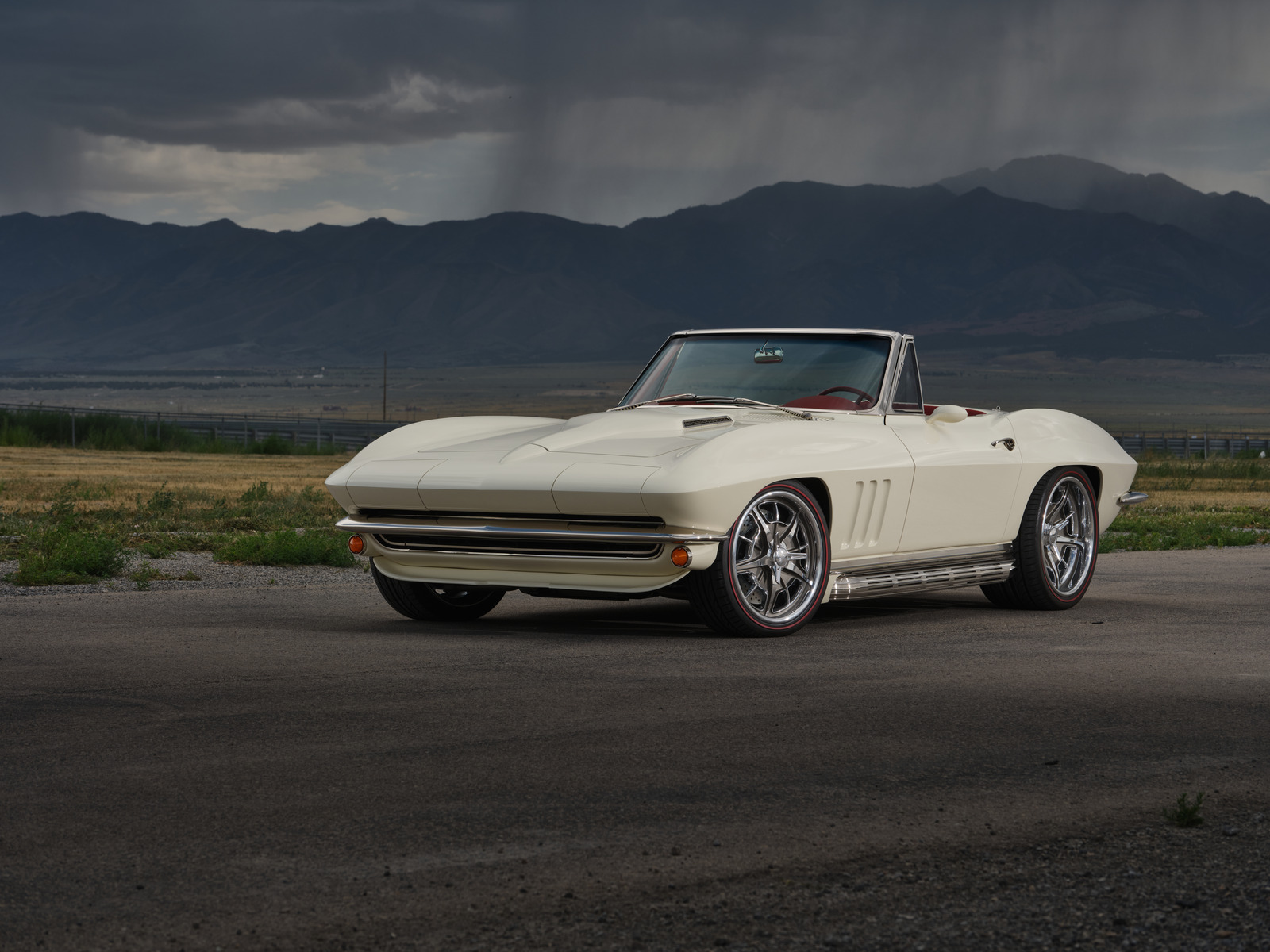

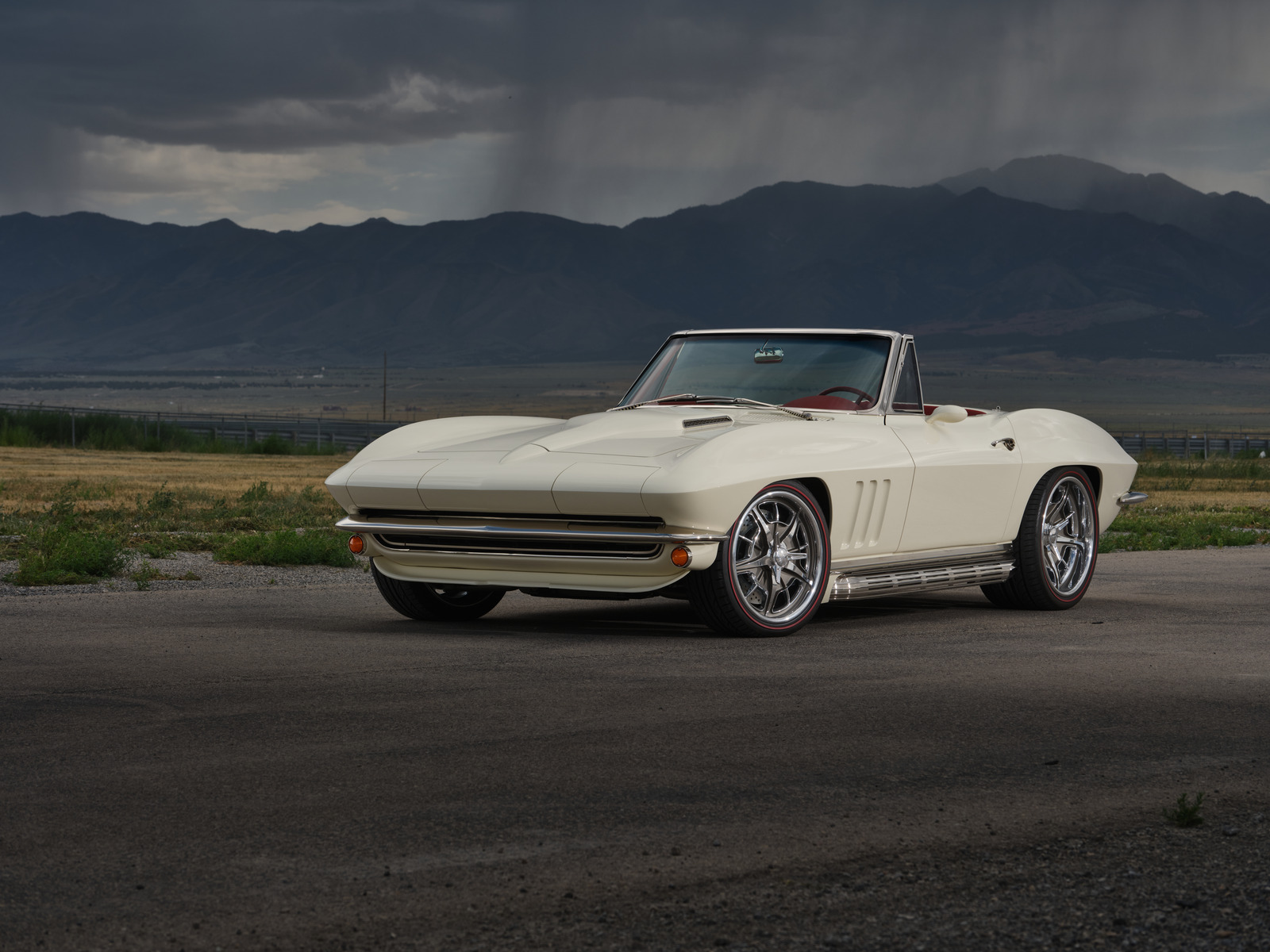

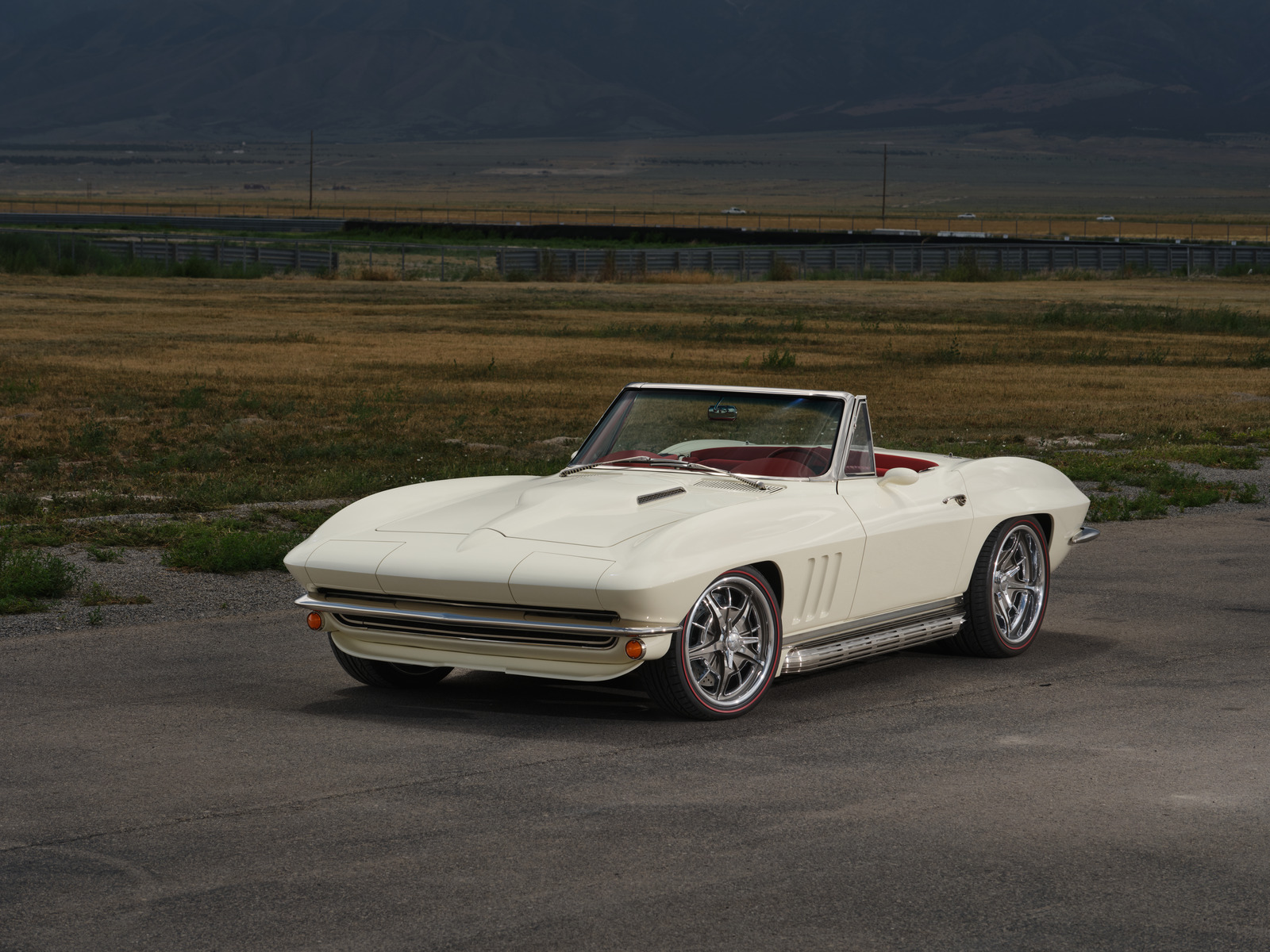

Corvettes will always be viewed as the ultimate “factory hot rod.” Since its inception, the Corvette nameplate has been synonymous with performance. One only has to look at how many hot rods built in the late ’50s-70s featured early Corvette performance parts. Later-model Corvettes are still the standard-bearer for the ultimate engine performance with the LS and then LT V8s, followed by all manner of suspension items that have now found their way underneath our hot rods. Alex Short of Utah’s 1966 Corvette convertible features what you would expect, plus additional later-model Corvette performance via powertrain and suspension enhancements.

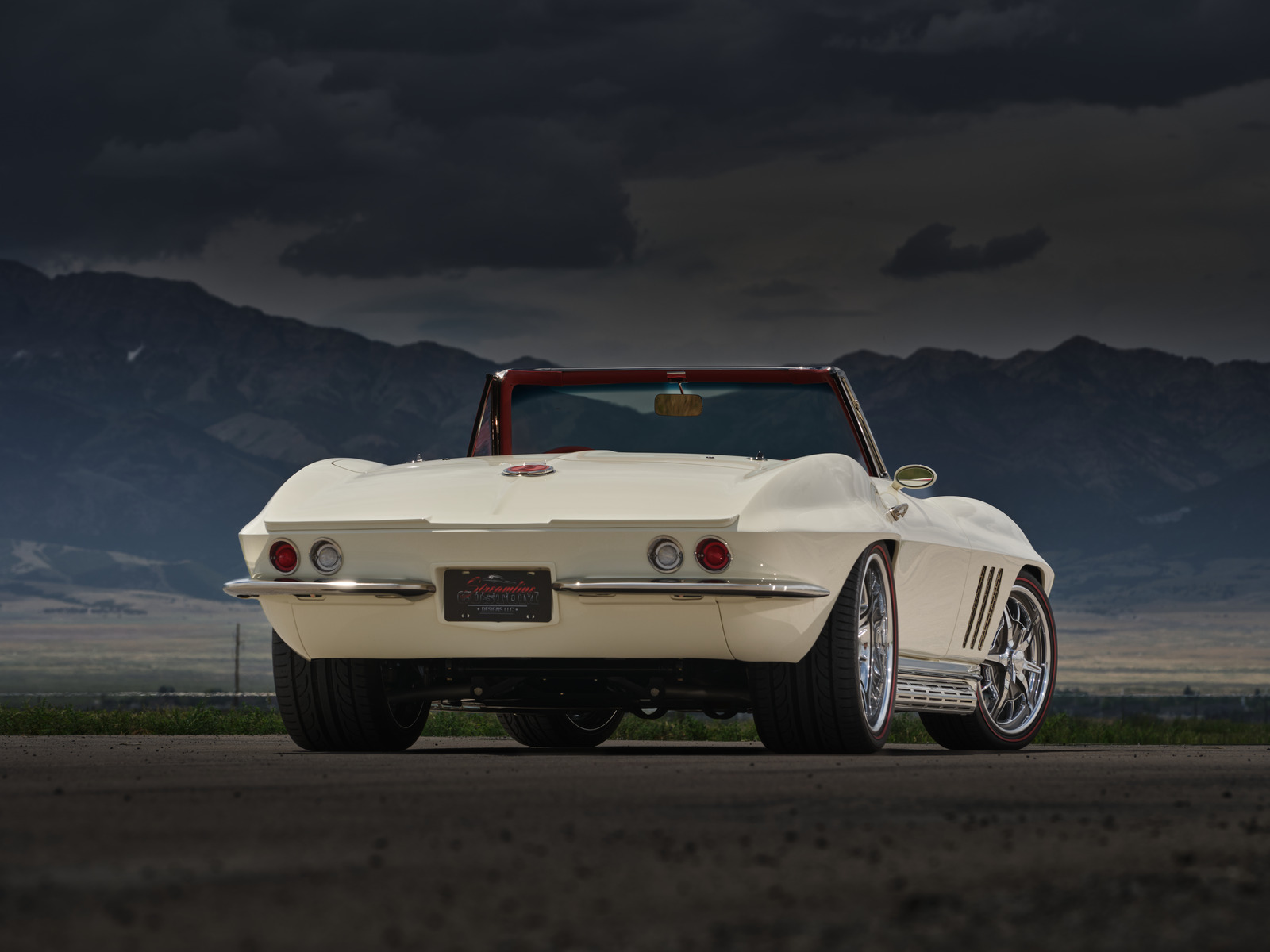

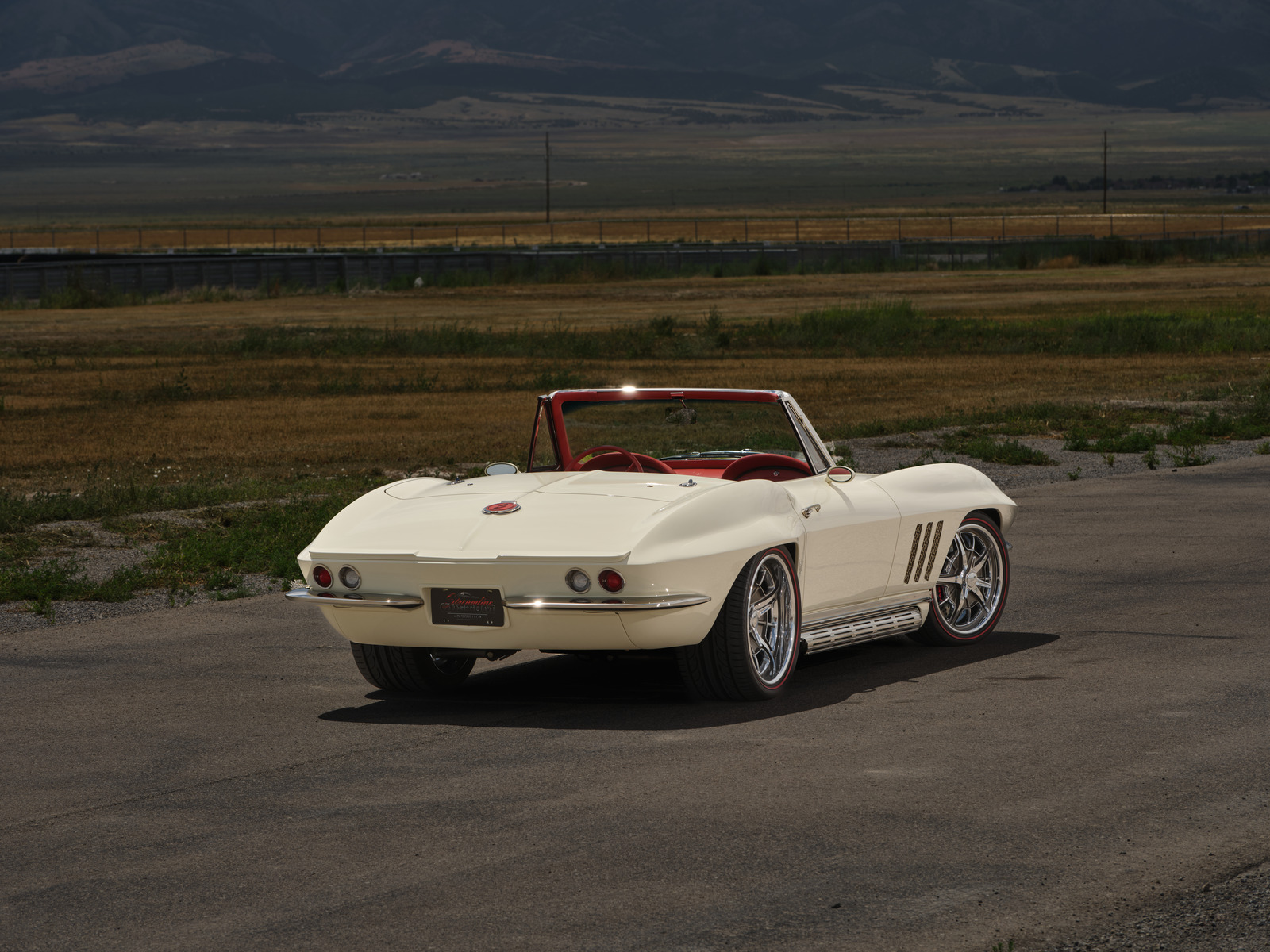

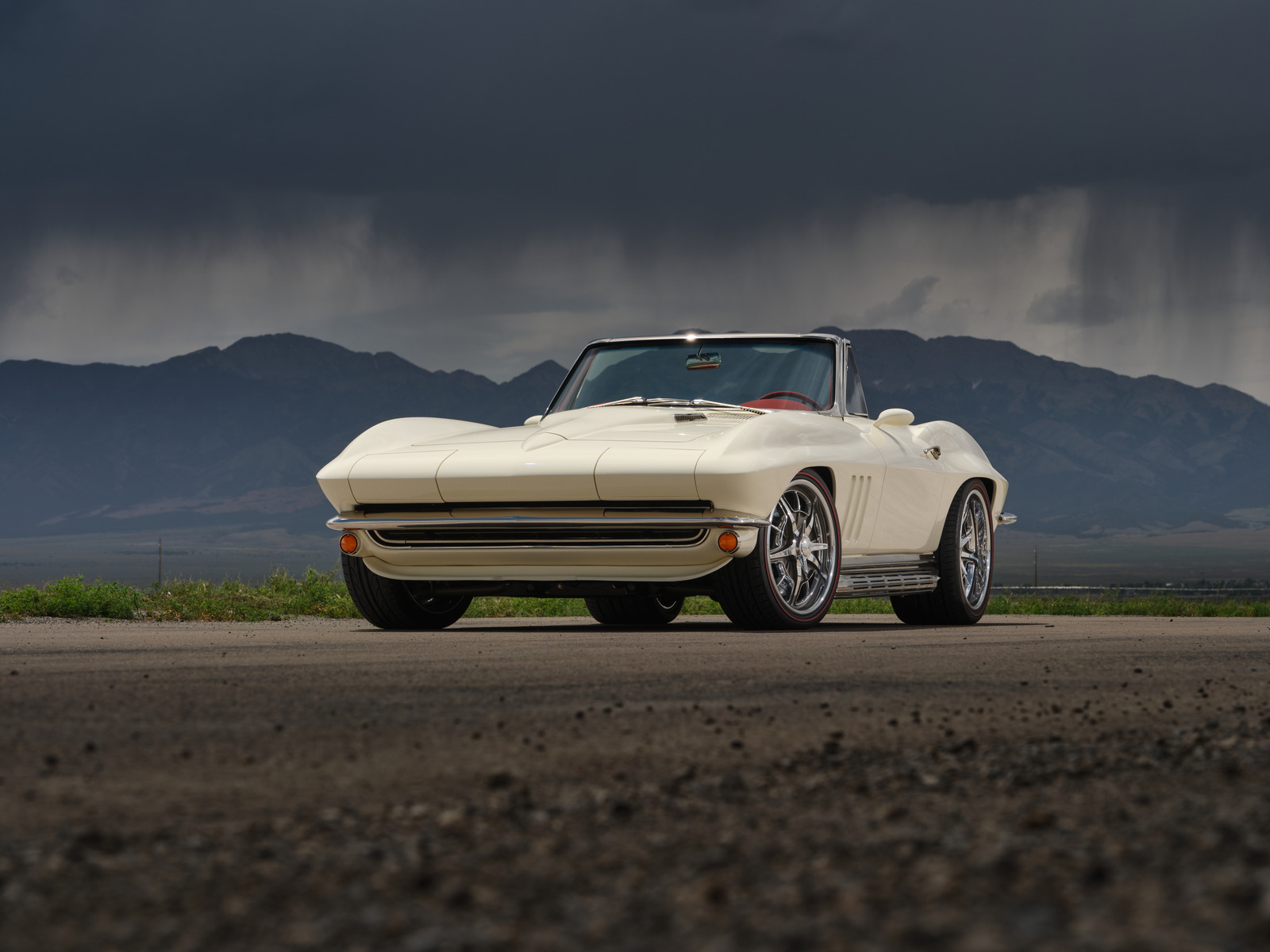

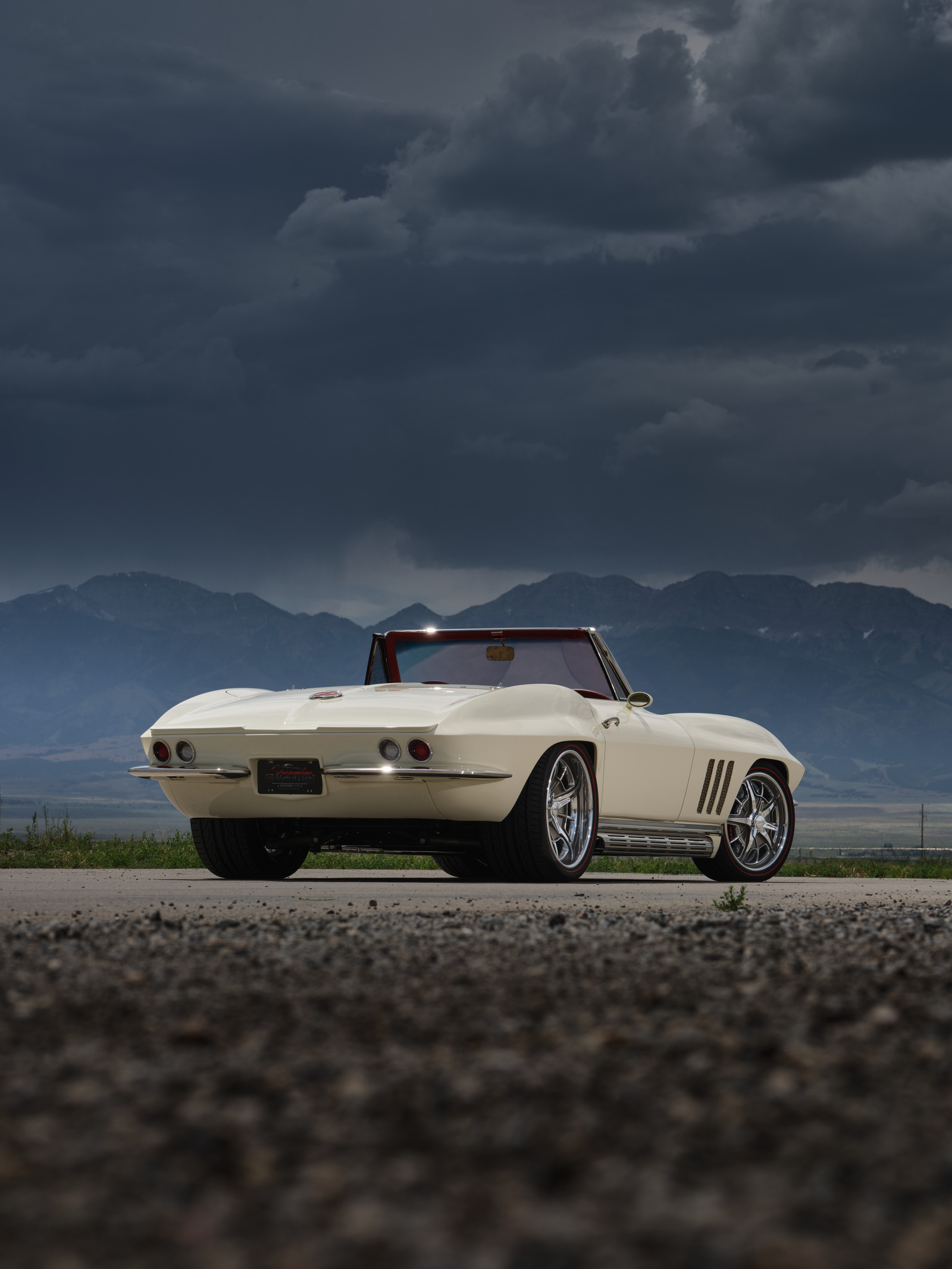

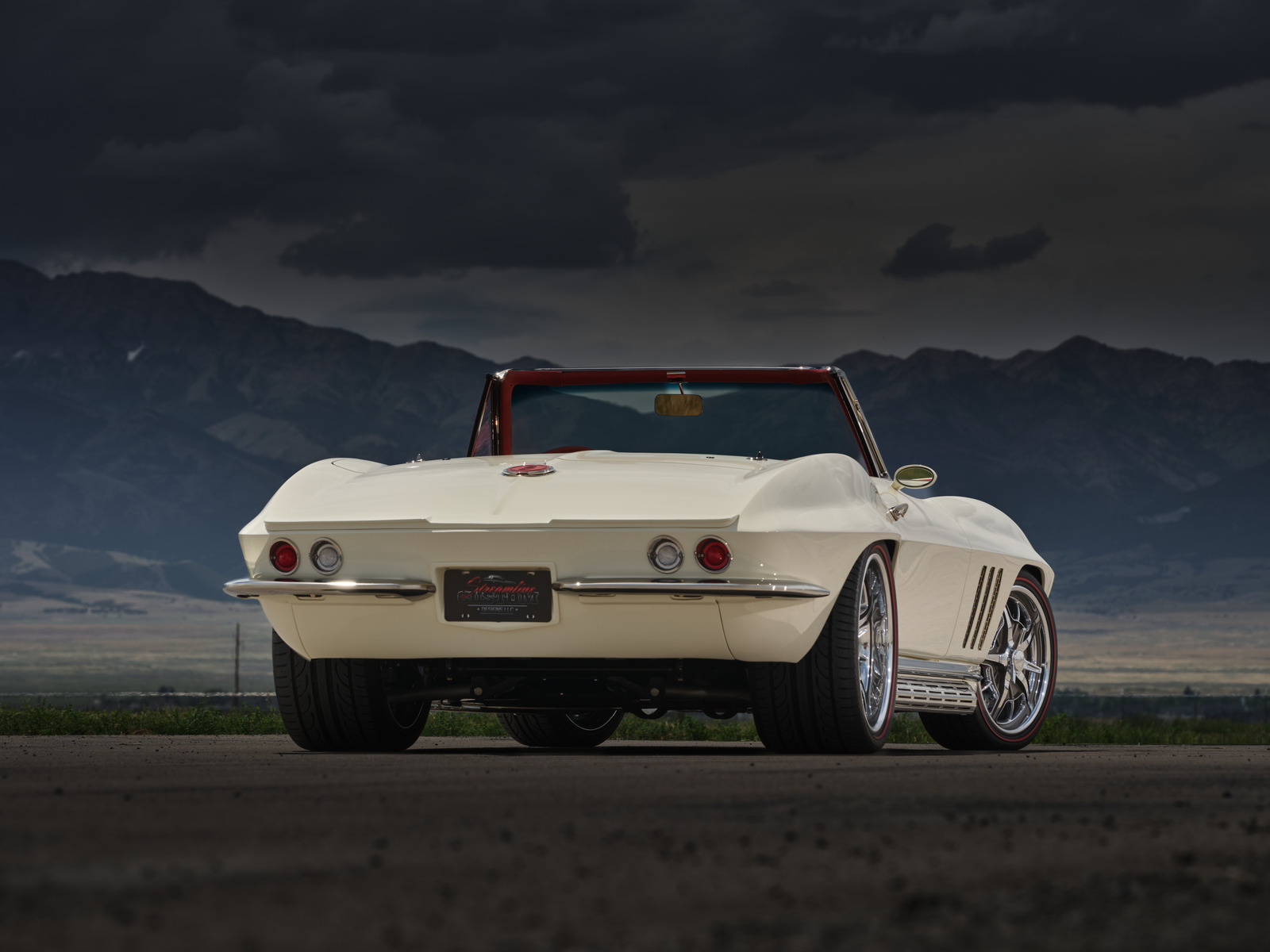

While Alex’s Corvette looks everything like a 1966 convertible, there are a surprising number of subtle changes that add to the aesthetic appeal and serve a purpose. Beginning with a widebody rear quarter-panel kit from Dynamic Corvette, it allows for the oversized wheel and tire combination and the enhanced suspension derived from using a Roadster Shop Fast Track chassis. Let’s finish with the body mods before entering the chassis and oversized wheel and tire combo.
Read More: Making a Case for Drum Brakes vs. Disc Brakes

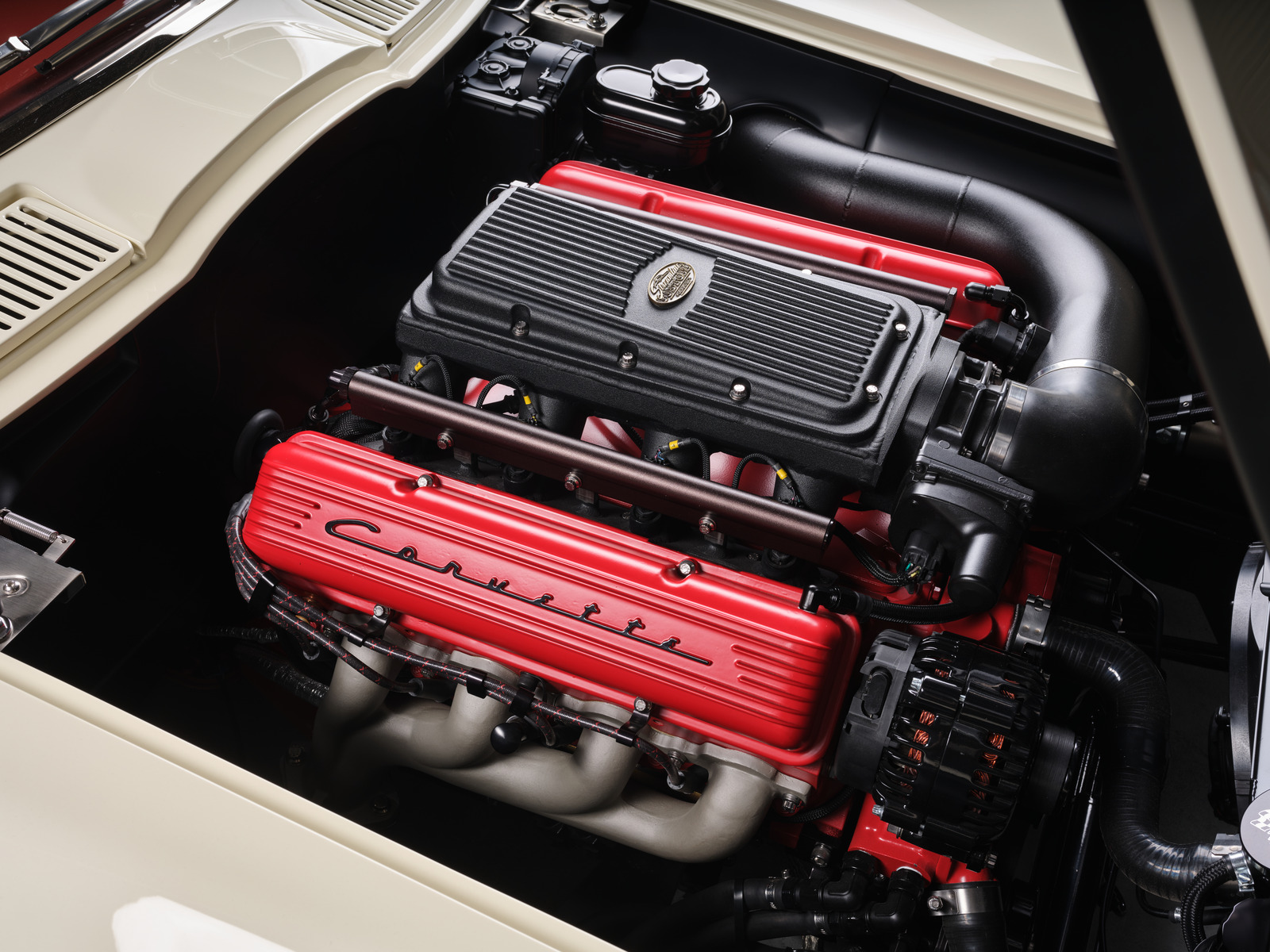

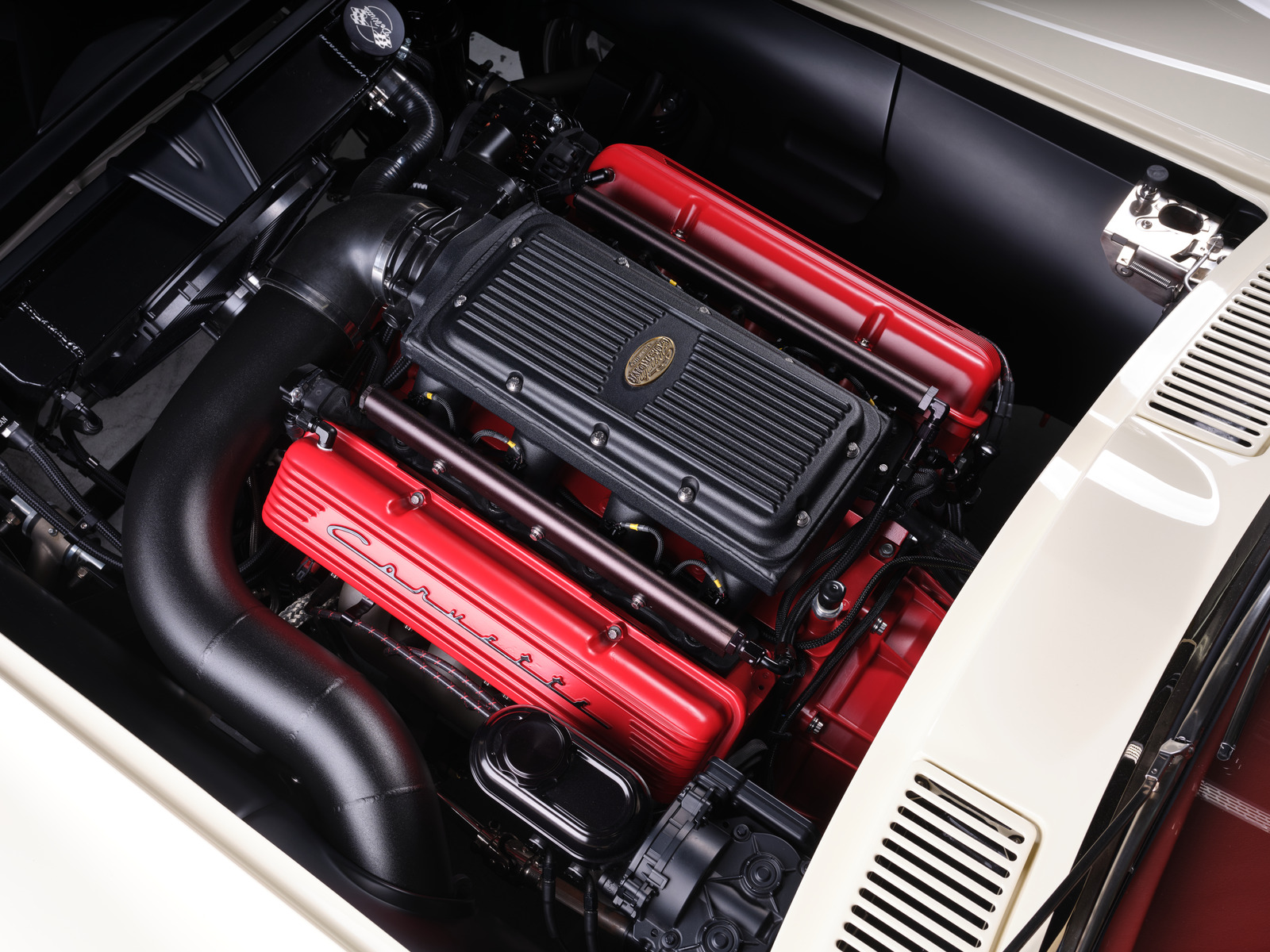

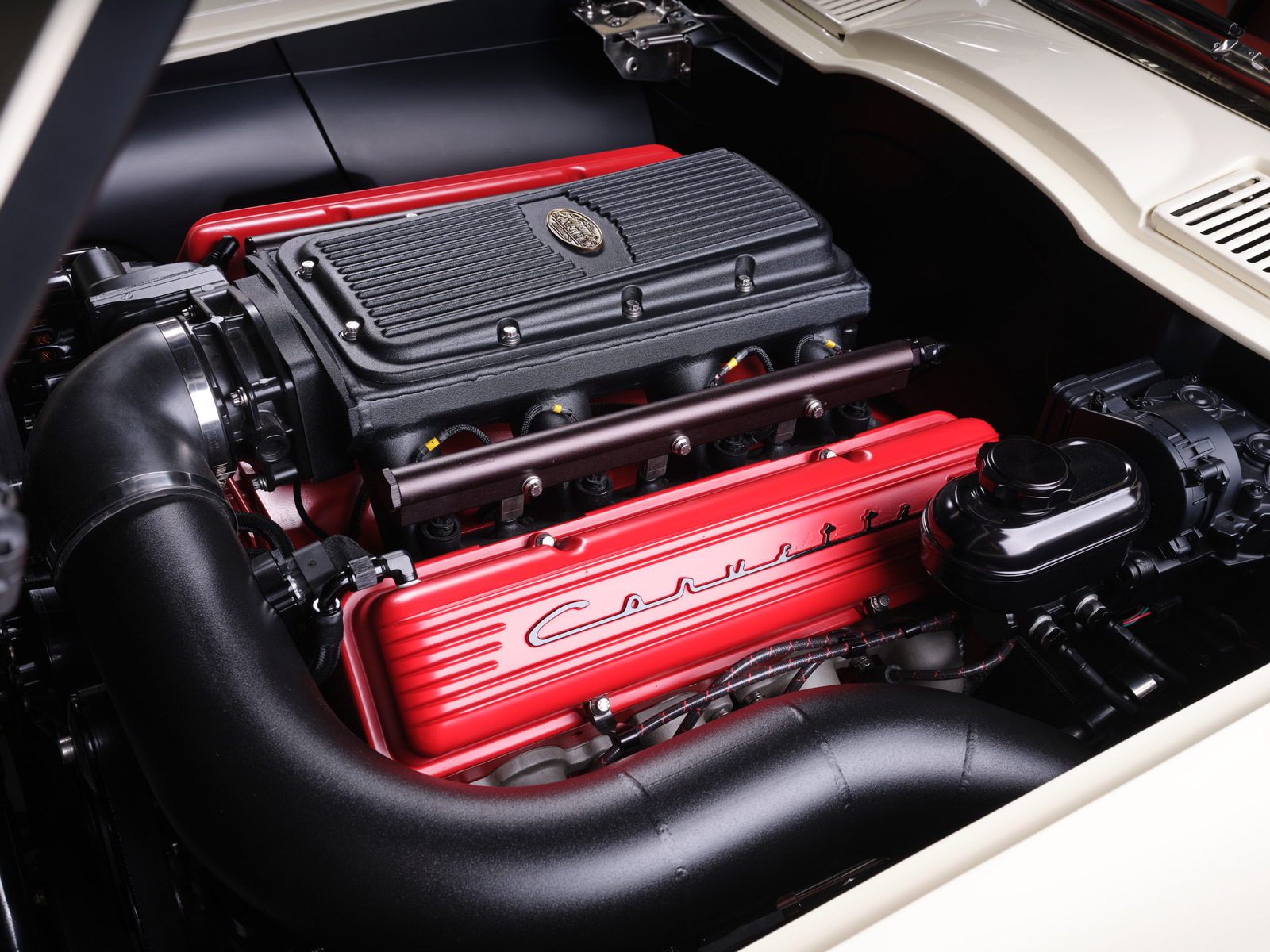

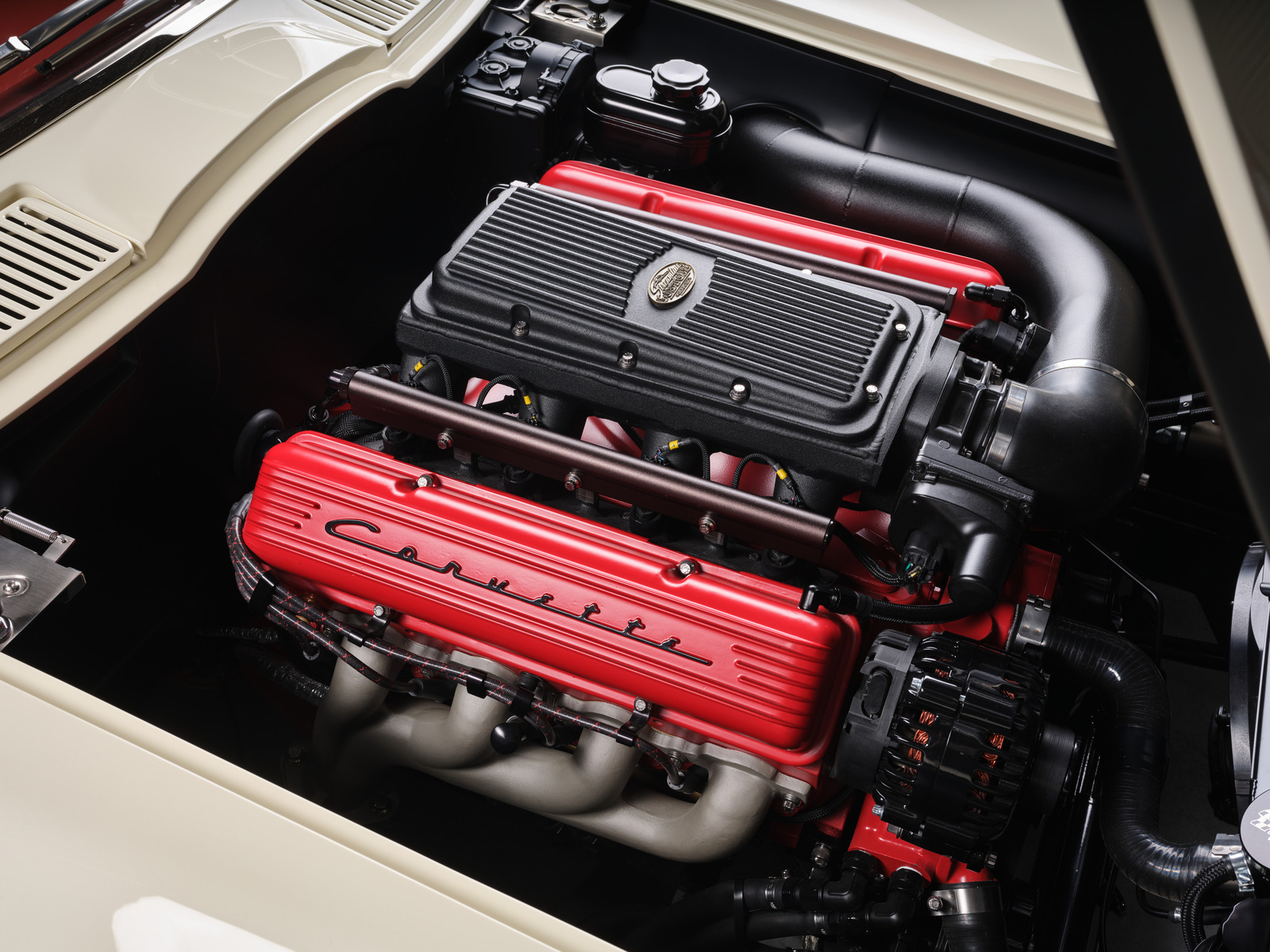

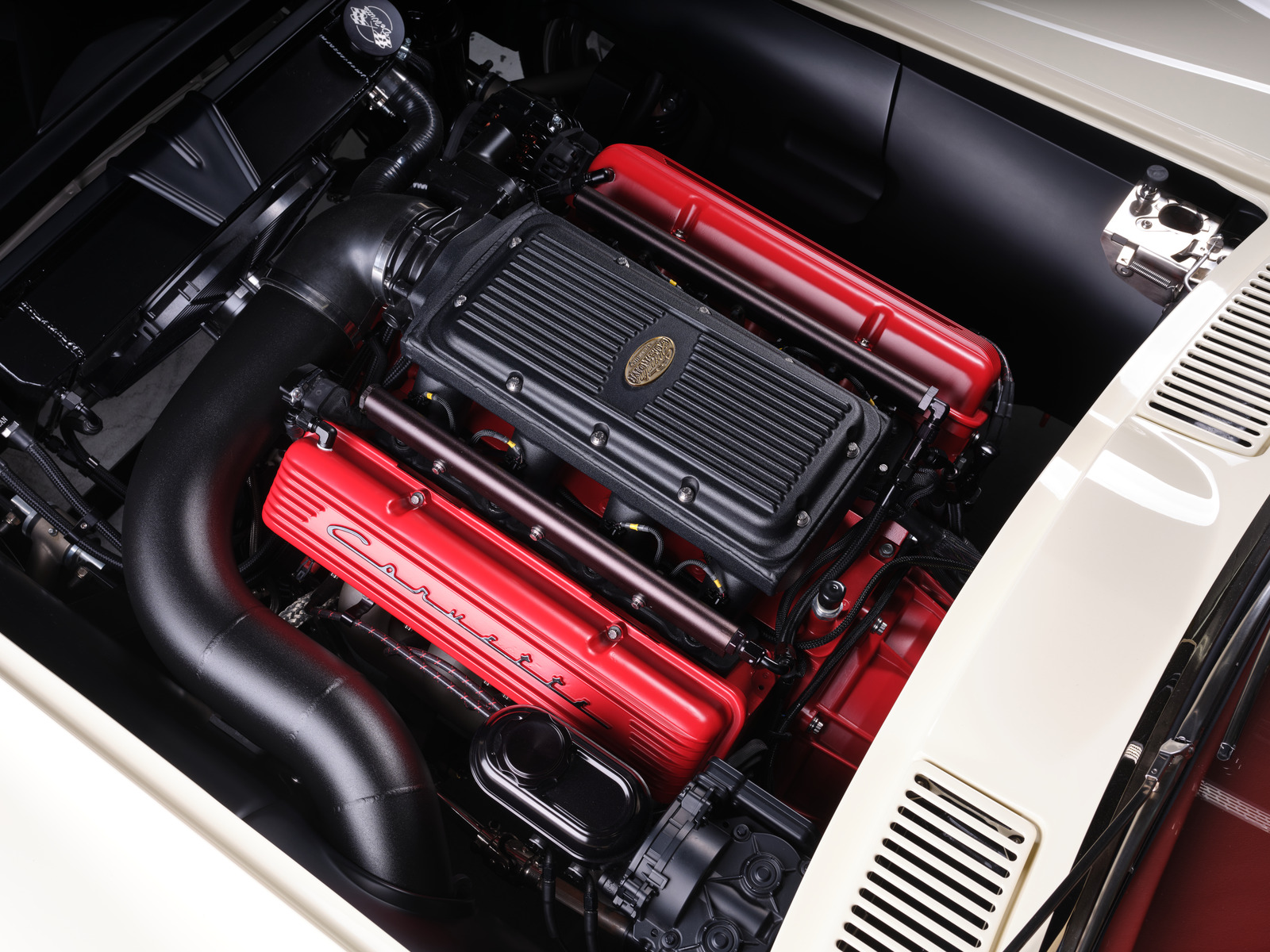

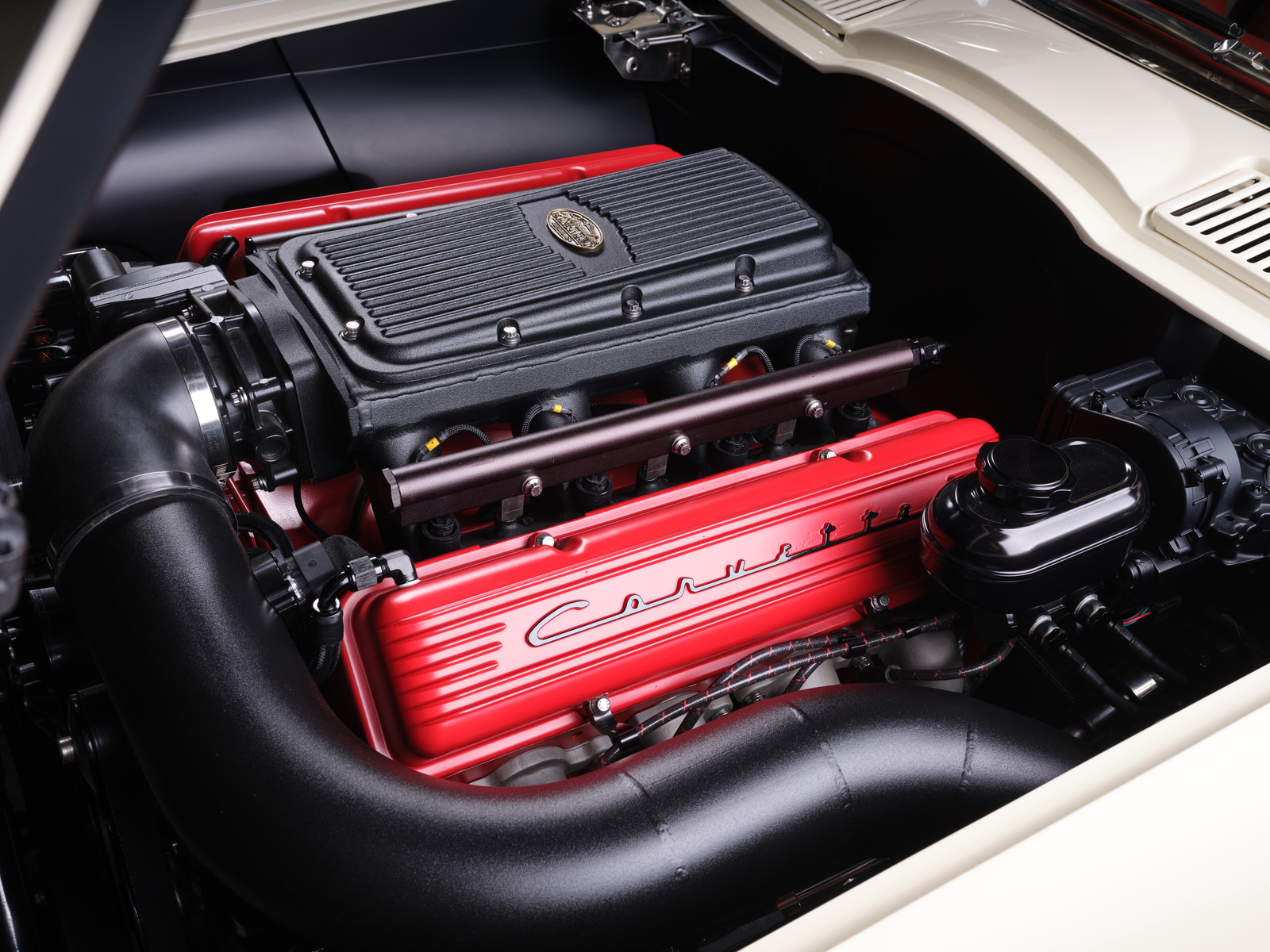

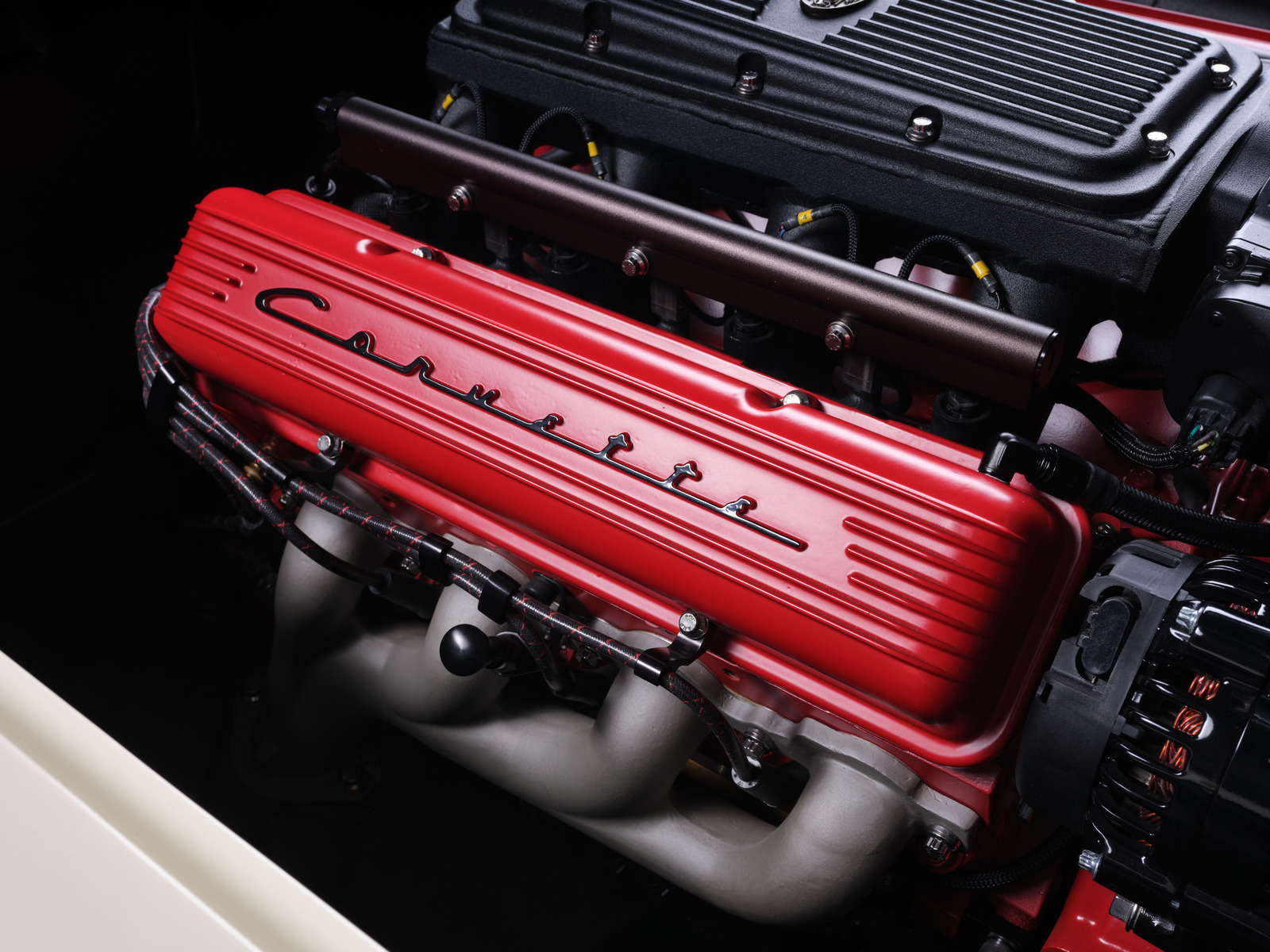

While at Streamline Custom Designs (SCD), a number of custom items were fabricated, such as the front and rear chin spoiler, front and rear bumpers, and a rear roll pan. Included in the mix is the Corvette big-block hood, providing the several inches of clearance required for the modified LS3 engine (6.2L) Corvette V8 connected to a 4L70E transmission. Note the custom sheetmetal intake manifold for the factory EFI topped with an LS Classics by Lokar big-box Rochester FI lid topped with the SCD logo; it adds amazing detail and is a packing plus. From here, the early 327 (seven-fin) valve covers (utilizing Delmo Speed Shop adapters), Lokar Performance vintage spark plug wires, and smooth cast 2-1/2-inch manifolds leading out to Billy Boat stainless steel exhaust side pipes are all in service. A Drive Junky serpentine belt system is also used. The cool air pick-up and filtering is a neat combination of an SCD-fabricated cold air tubing duct that grabs fresh air from a custom air dam located within three of the driver side body gills.
We realize that at first glance you may want to refer to this as a “white” Corvette, but that would not give the Corvette its due. The color is just a “bit outside” white as it is truly identified as Monroe Blonde (an SCD custom mix) of a PPG Envirobase paint. Before applying this distinctive color, SCD also performed all the necessary prep, including the bodywork.
Read More: Mom’s 1967 Pontiac GTO
Lying below this amazing-looking, 1966 Corvette is a Roadster Shop Fast Track chassis based on 10-gauge boxed frame rails. The Fast Track chassis is designed for performance and utilizes C7 spindles (modern Corvette performance) teamed with double-adjustable Penske coilover shocks, a 1-1/4-inch splined sway bar, large-diameter control arms, 1-5/8-inch lower control arms, and 1-1/4-inch upper control arms. The rear is the Roadster Shop optional Independent Rear Suspension with a 3.70 ring-and-pinion and Penske double-adjustable coilover shocks. Also included is a center crossmember with adjustable/dropout transmission mount and exhaust ports capable of handling 3-inch exhaust.

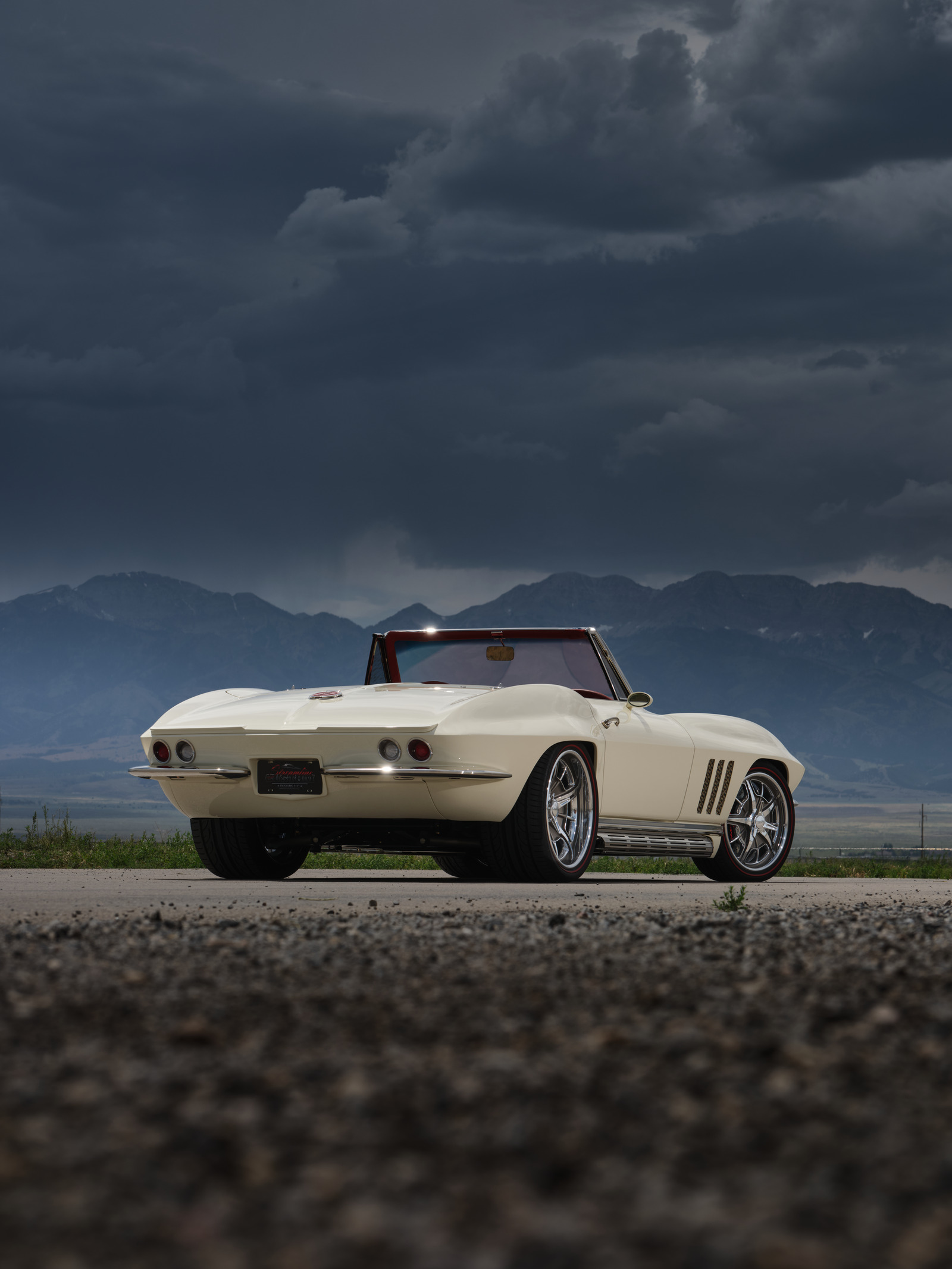

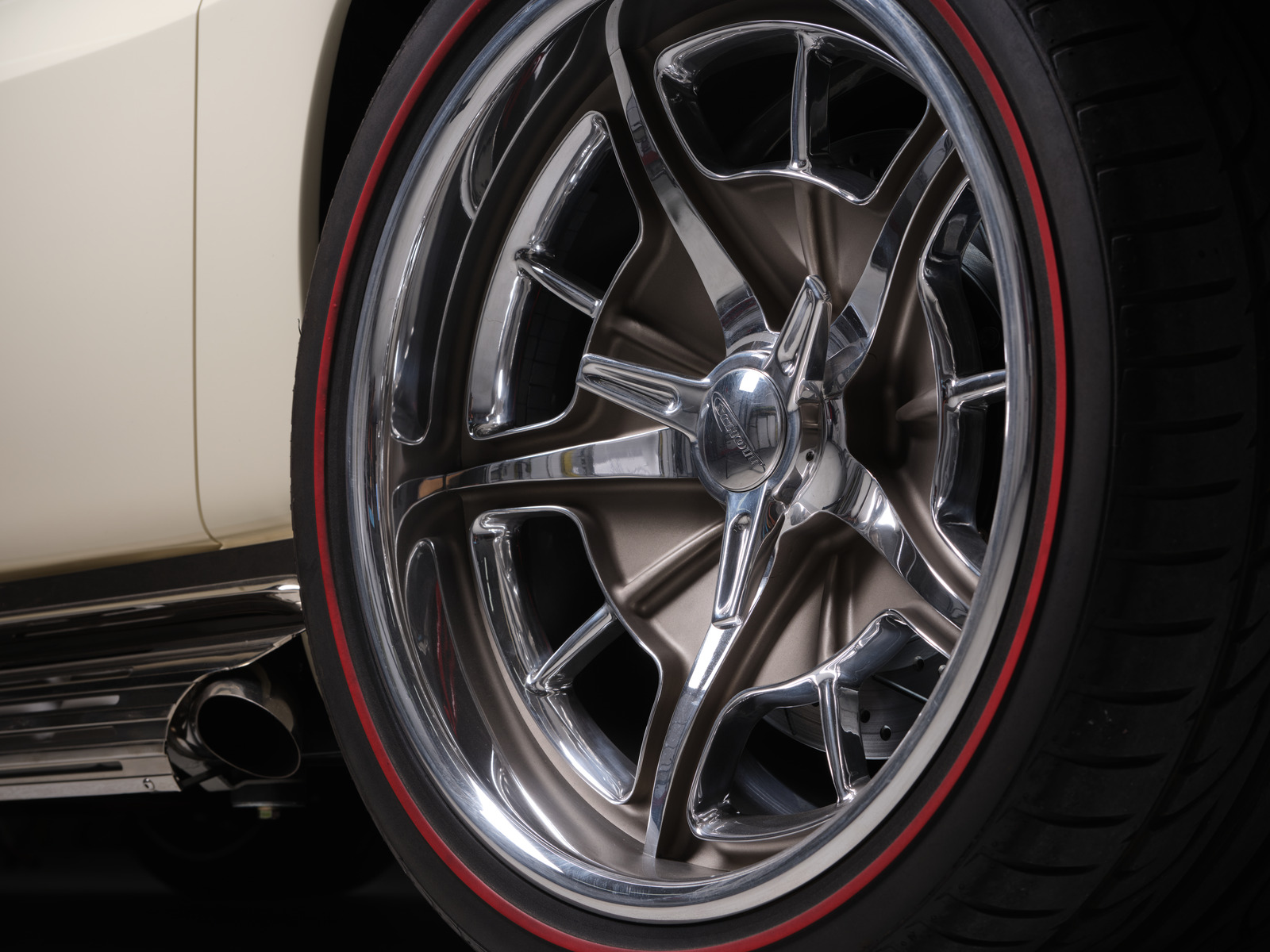

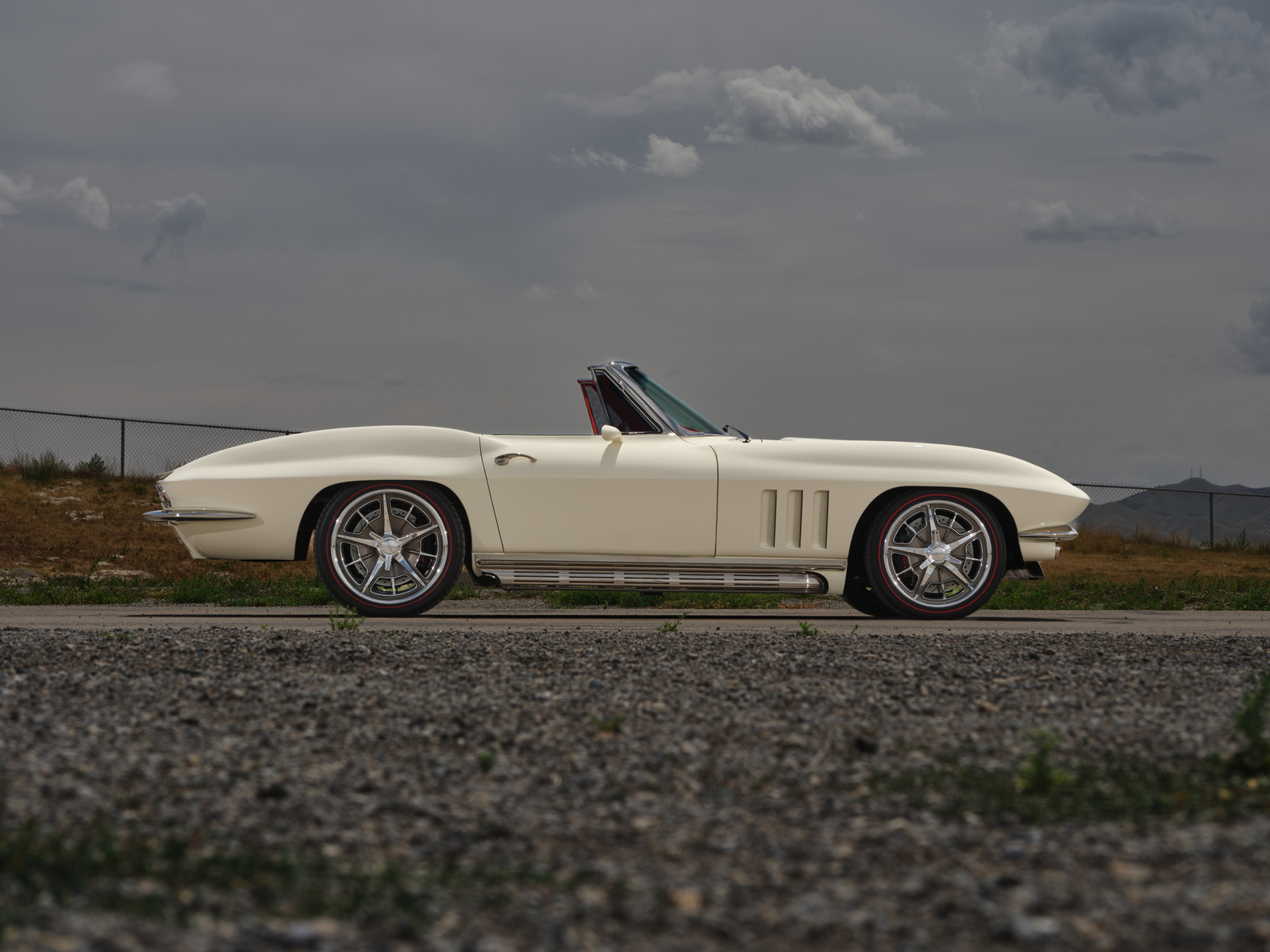

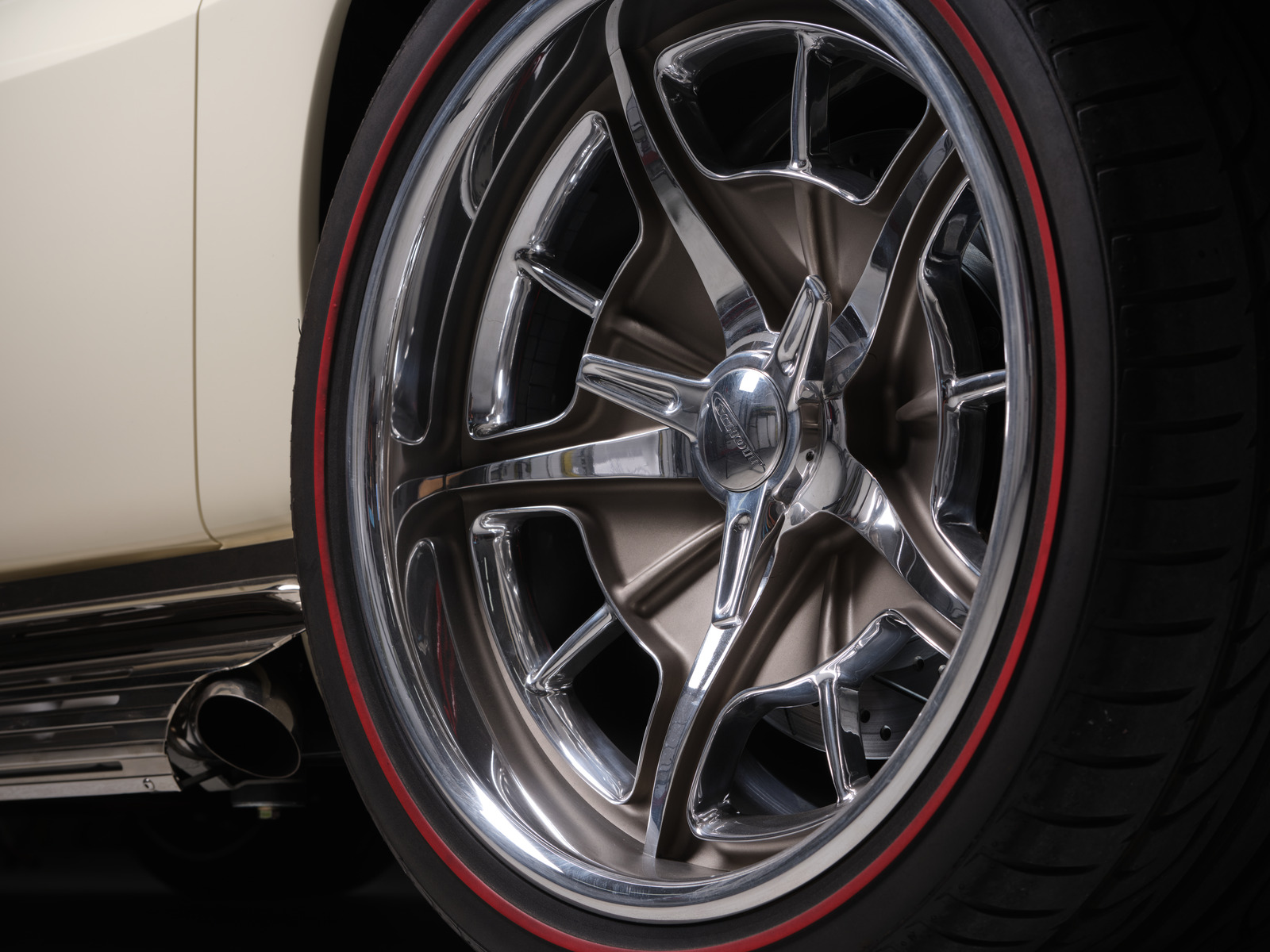

Rolling stock consists of Schott Split Window Concave wheels, 18×7 and 19×11, wrapped with Diamond Back SS tires in the vintage-looking Redline style measuring 225/40R18 and 325/30R19. A Flaming River rack-and-pinion handles the steering chores, while the Baer brake kit consisting of Pro+ 14-inch rotors with six-piston calipers supply braking. The electric master cylinder is a Rad Rides by Troy (Tesla) kit that helps with braking and packaging.
Read More: Hellcat Swapped 1968 Dodge Charger

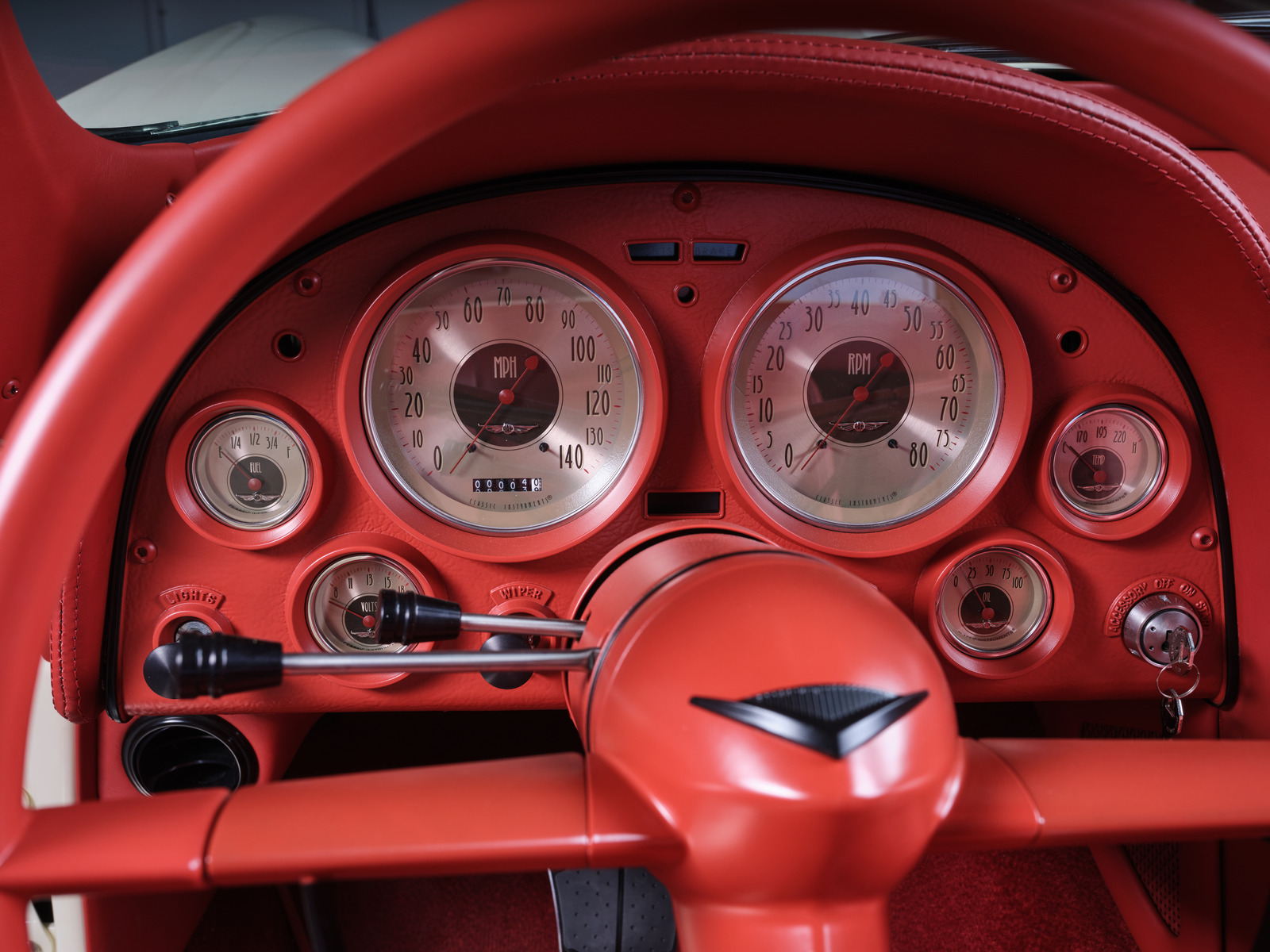

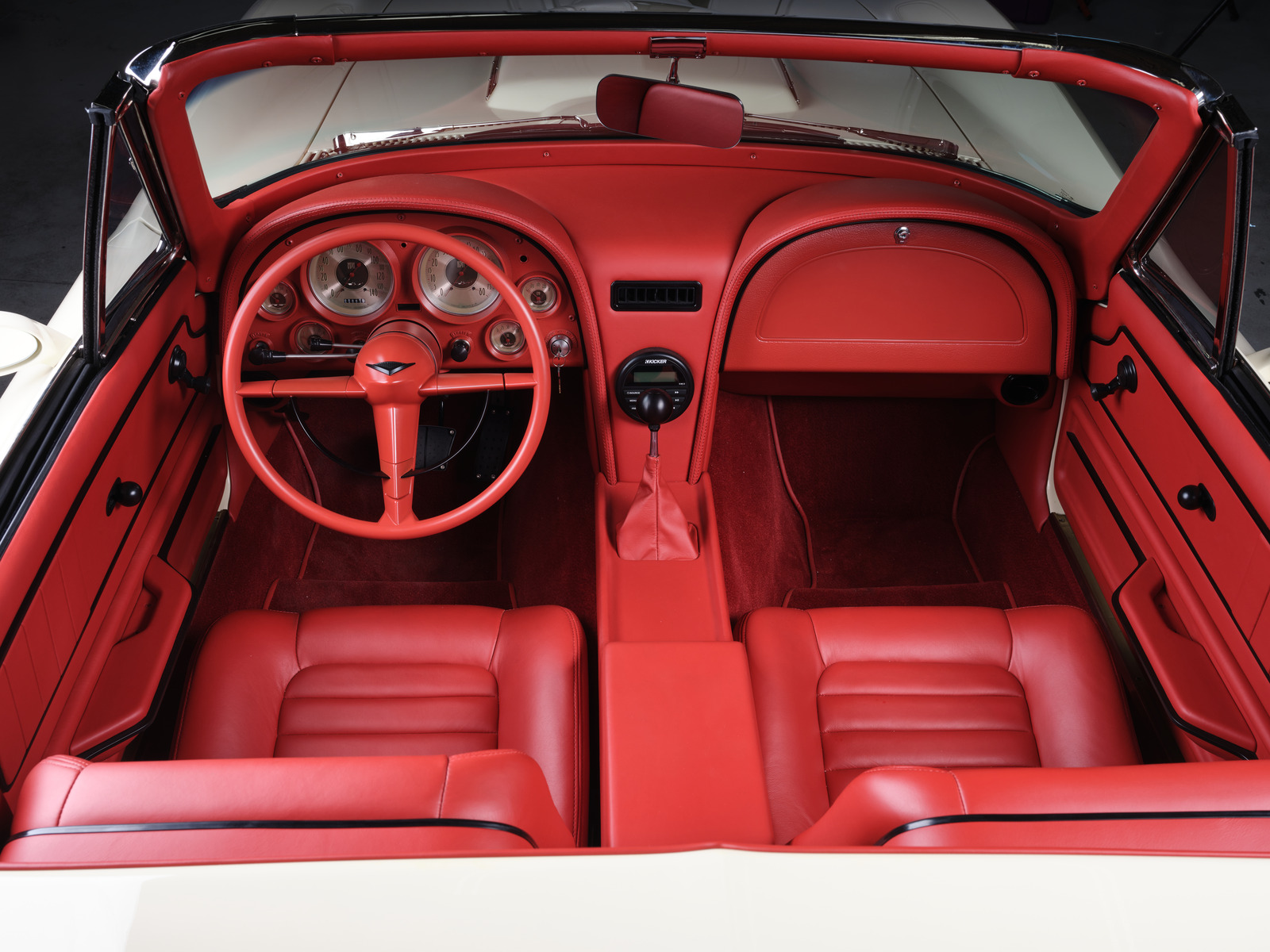

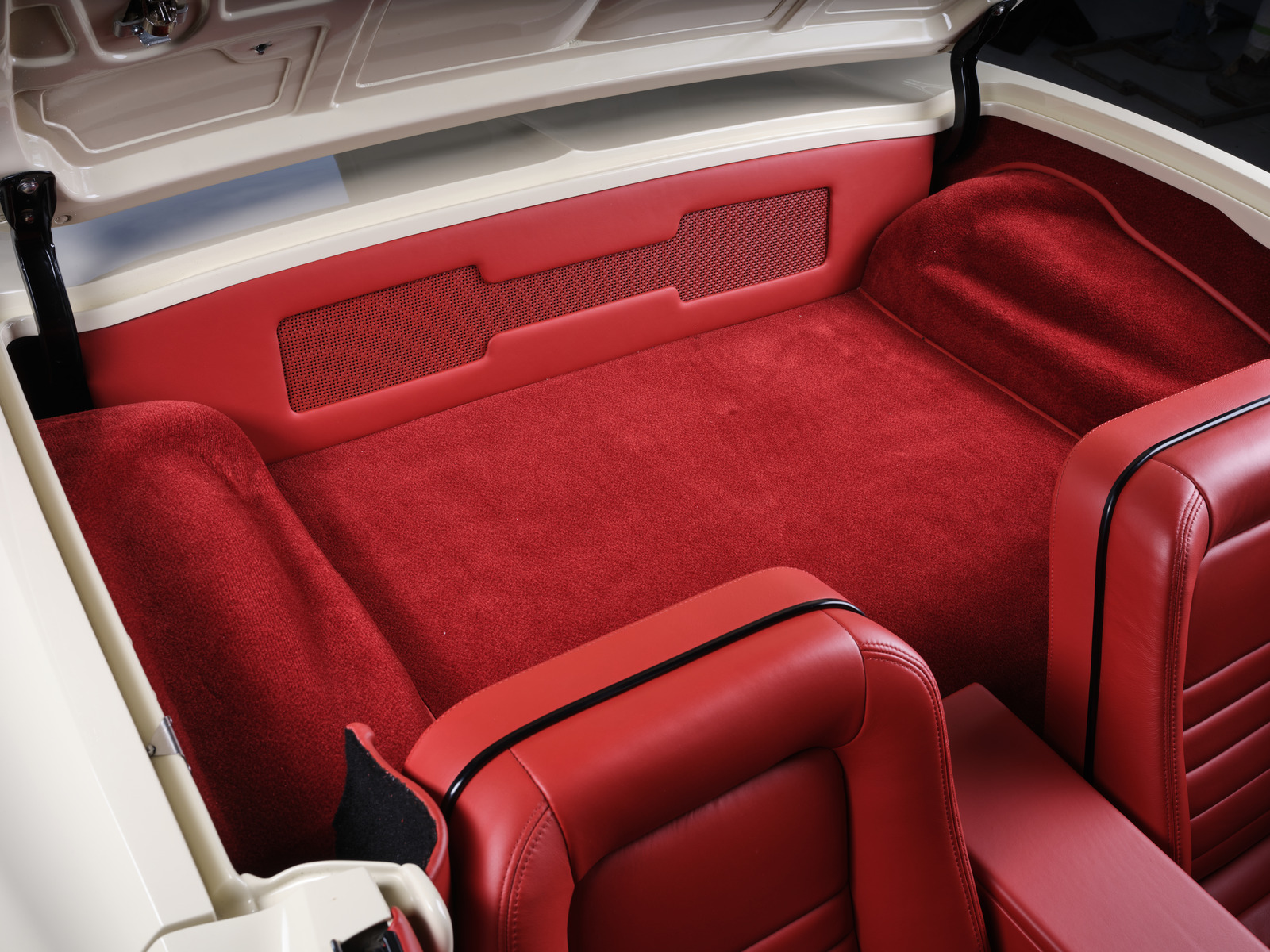

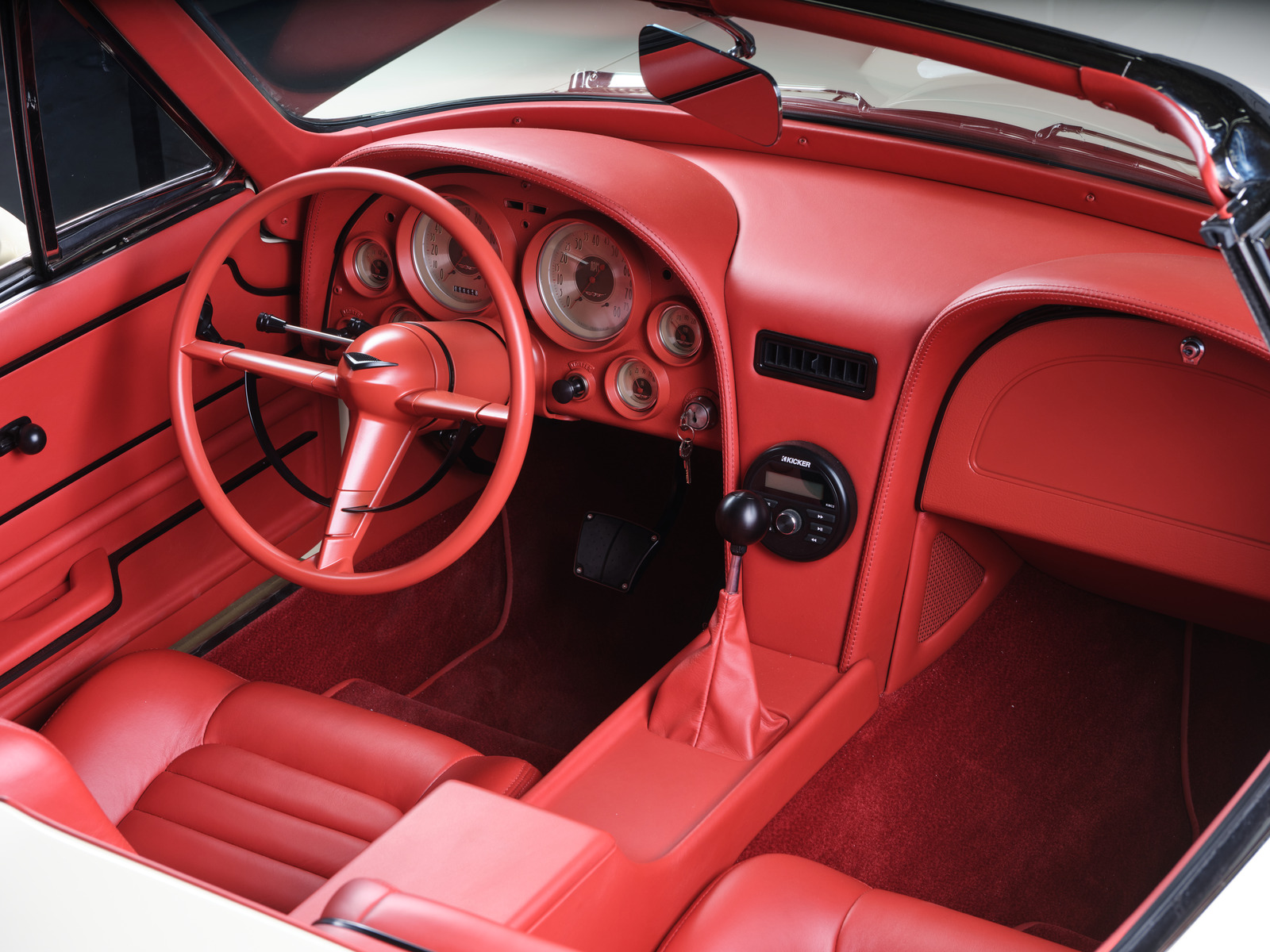

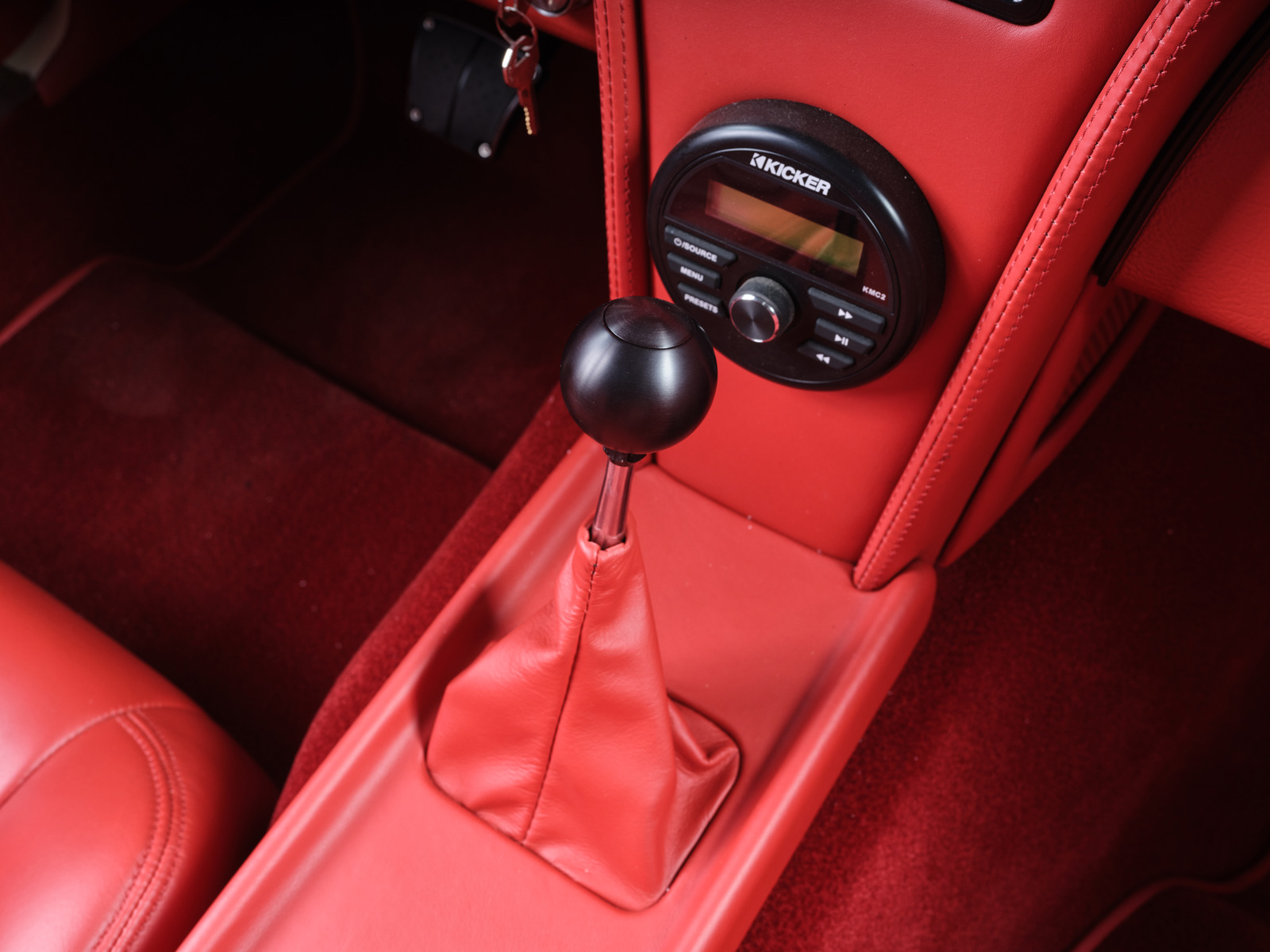

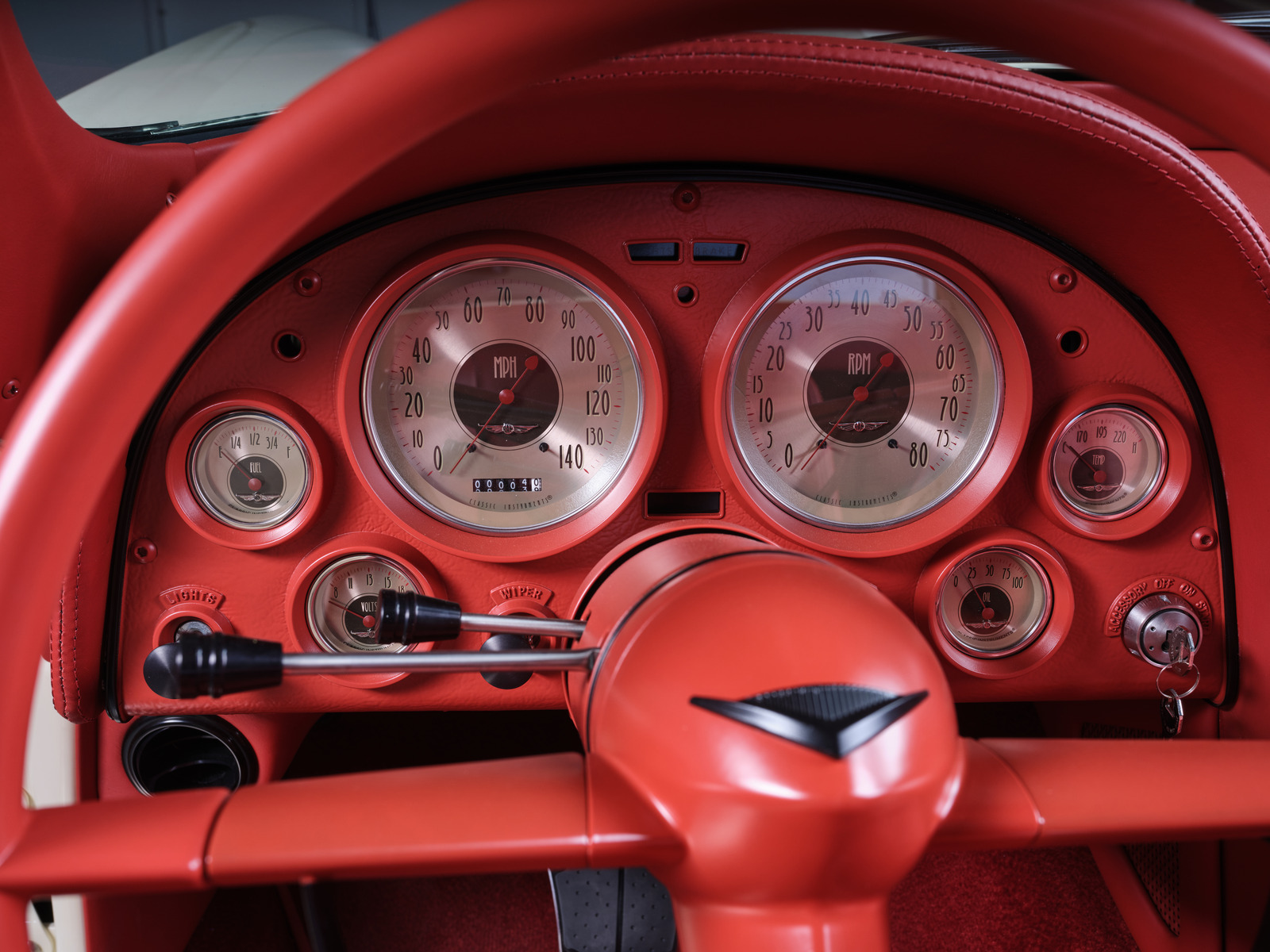

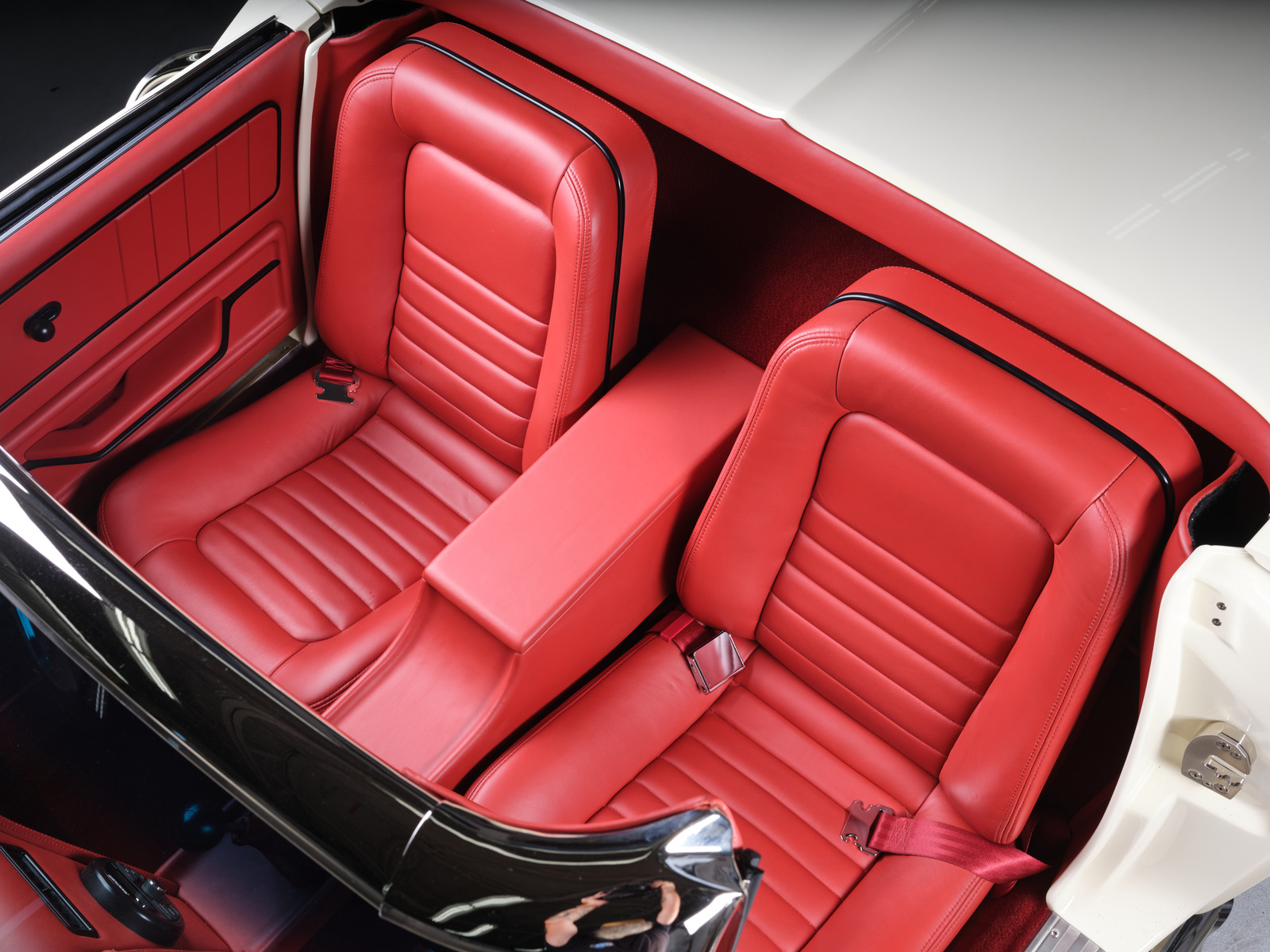

To enjoy maximum engine performance and road handling, one must be comfortable. Alex has enriched the C2 interior to rival any modern-day performance car with plenty of today’s components. The factory dash features significant modifications while retaining the dual cove look but is now wrapped in red leather. Encased in the traditional-appearing C2 dash are Classic Instruments brushed nickel gauges. The gauges, the Restomod Air AC, and the remainder of the Corvette electrics are brought to life by an American Autowire kit positioned by the staff at Streamline. More interior appointments include a Flaming River steering column topped with a Speedway Motors modified Corvette ’53-54 wheel. The seating is a pair of Scat by Procar bucket seats modified by Seams Impossible in Hydes Leather brick-colored skins resting on red carpeting. Seatbelt Solutions supplied a pair of ’belts.
The 1966 Corvette, being part of the C2 family, has retained its popularity and will most likely do so for some time to come. And we can see why. MR
