Beth Myers’ 2024 AMBR winning 1932 Ford Phaeton Built by Roy Brizio Street Rods

By Brian Brennan   –   Photography By Michael Christensen   –   Videography by Ryan Foss Productions

There are a handful of awards that cause any rodder to stop and look. America’s Most Beautiful Roadster (AMBR) trophy, awarded at the Grand National Roadster Show (GNRS), is both prestigious and is the longest running. The 2024 show was once again filled with cars that could have easily won. But there can be only one winner, and that was the ’32 Ford lowboy phaeton belonging to Beth Myers out of Pennsylvania and built at Roy Brizio Street Rods (RBSR) in South San Francisco. We should also point out that Beth is the first woman to win the AMBR … good going, Beth.

- Advertisement -

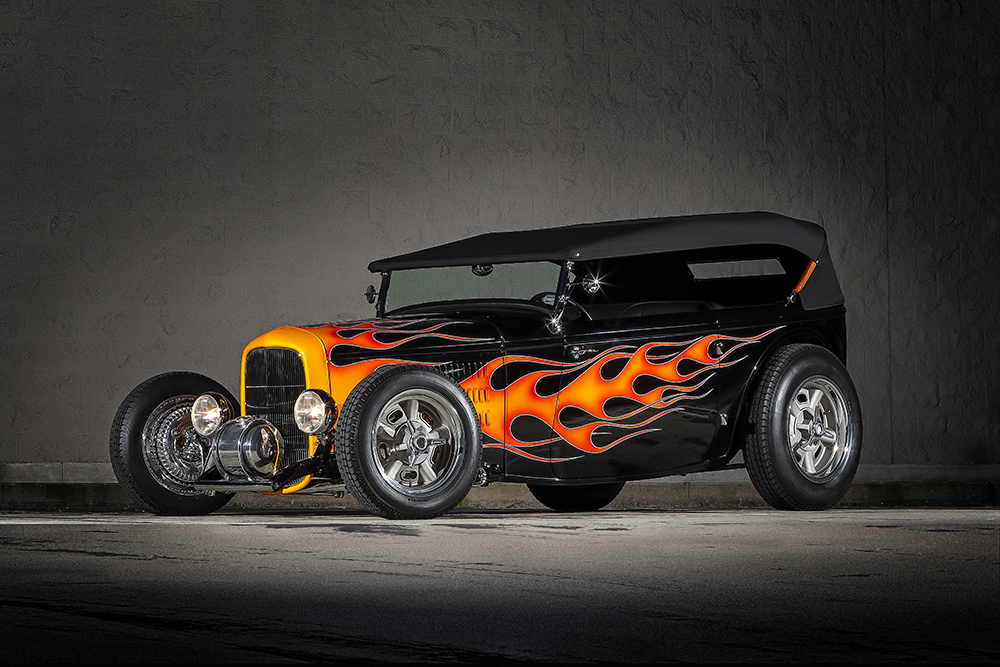

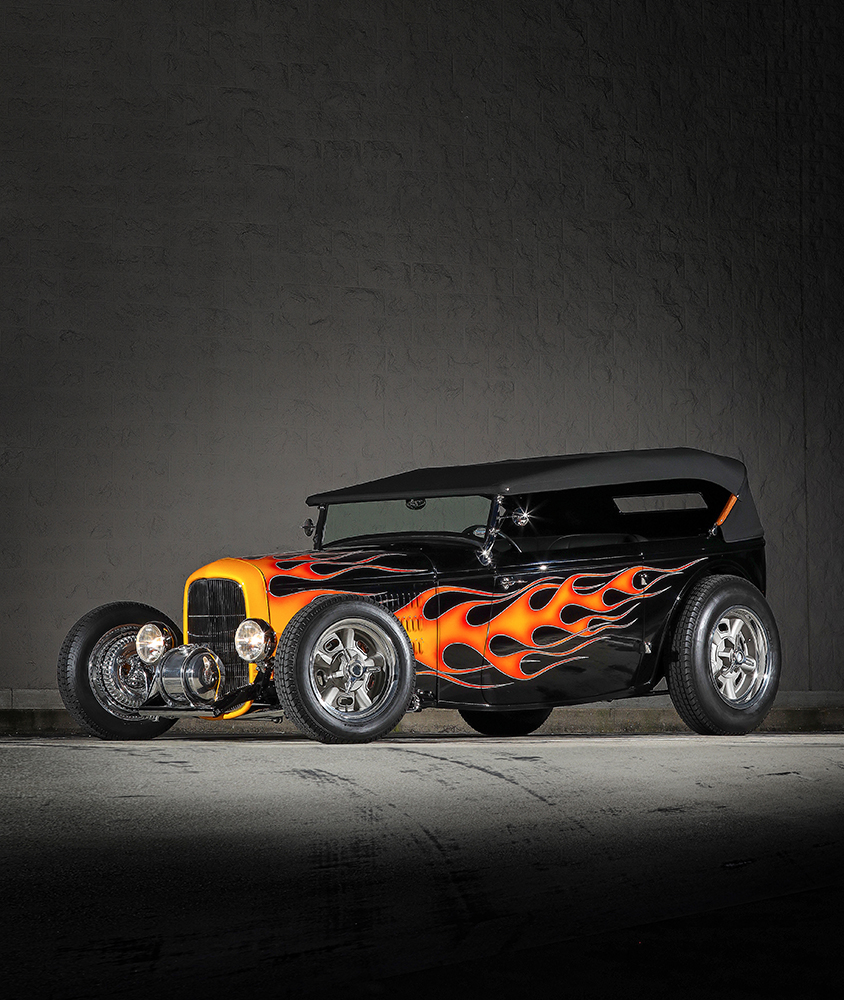

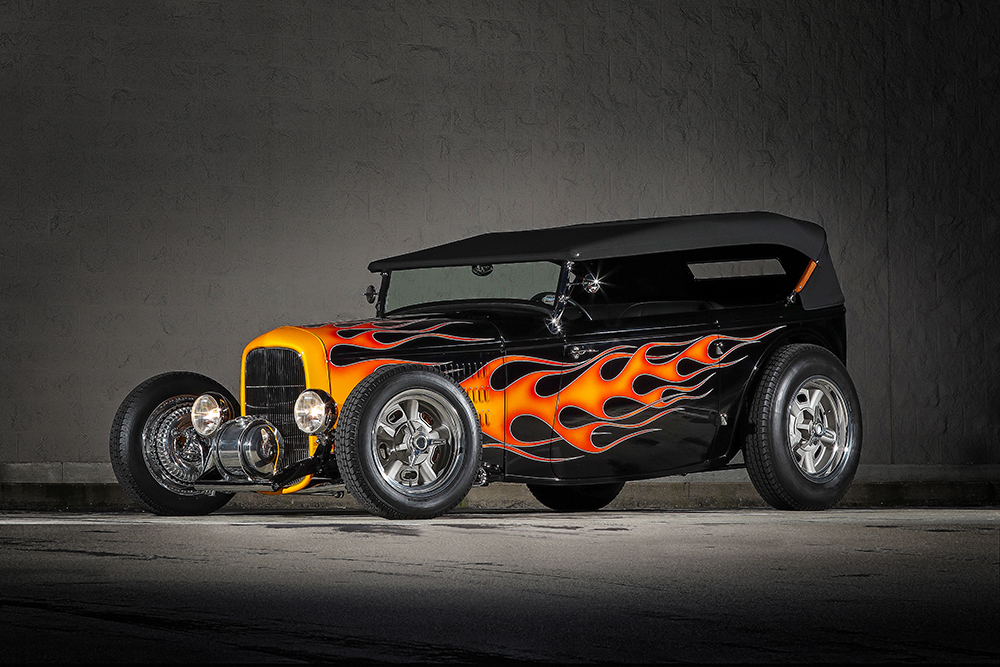

02 1932 Ford vintage roadster featuring orange flames and an exposed engine front angle

Read More: Roy Brizio Street Rods Build Winner Of America’s Most Beautiful Roadster Award

- Advertisement -

Where to start? It’s not often that we see a phaeton in AMBR competition. The last one was Wes Rydell’s ’35 Chevy phaeton (Rad Rides by Troy) back in 2014. And we must return to 1985 to find a Ford, which was Larry Murray’s ’33 phaeton. In fact, counting Beth’s phaeton, there are the only three Ford phaetons to have won the AMBR. (However, several Model T Tourings have won the coveted award.)

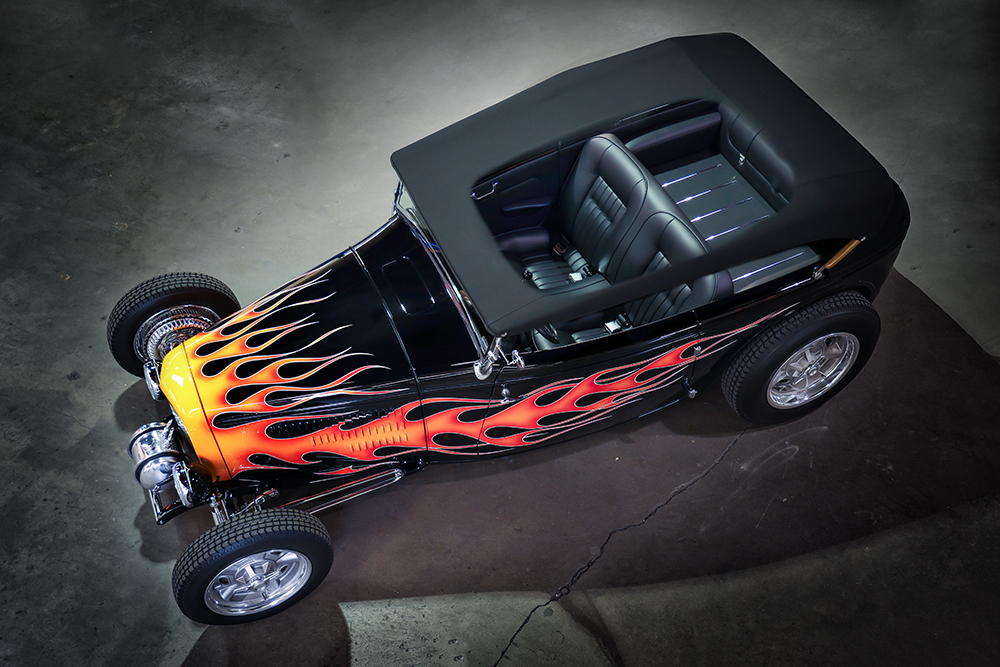

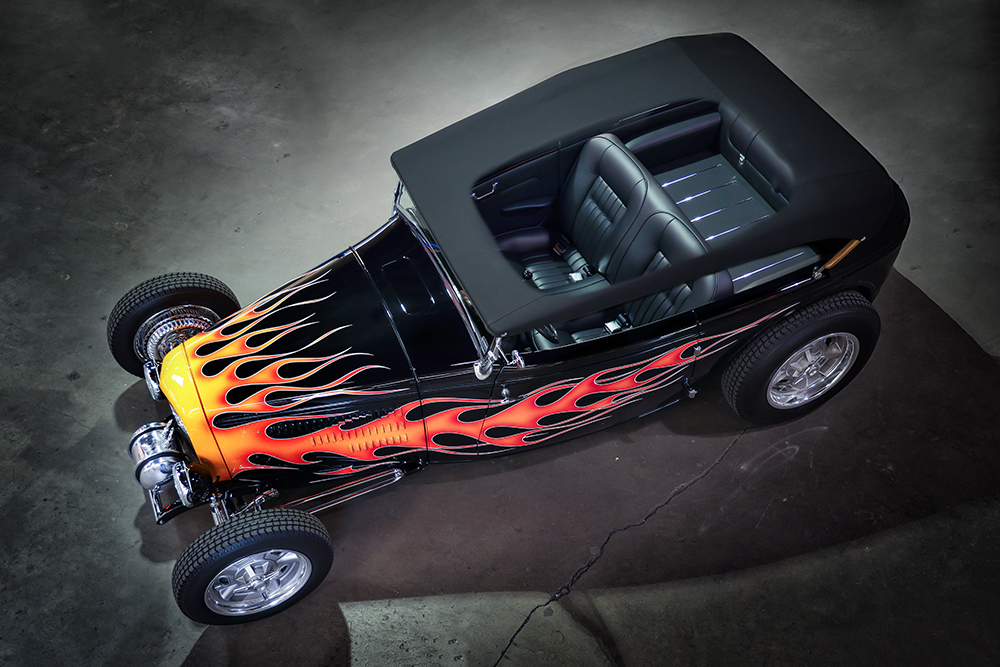

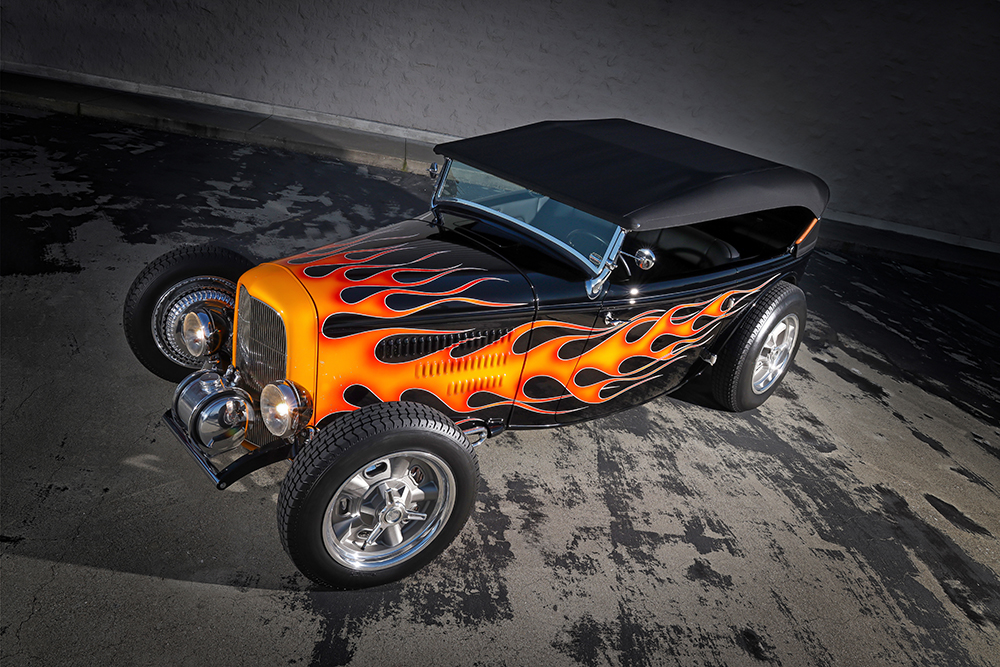

03 1932 Ford classic roadster overhead view with black paint and flame design

The ’32 Ford phaeton body began its life as an all-steel Brookville Roadster body. It was built in a channeled (lowboy) form, eliminating the need for fenders, running boards, aprons, and so on. While that may seem like less work is required, the fact is that the RBSR team had plenty as they wanted to give this Deuce lowboy phaeton a distinctive appearance. The body was narrowed 1-1/2 inches in the cowl area, necessitating the narrowing of the cowl vent itself by 1 inch, and the original grille shell was then narrowed 2 inches. Andrik Albor of RBSR was instrumental in shaping the three-piece aluminum hood (a bonnet and two side panels with three rows of hot rod–style 3-inch louvers). Mounted in front of the grille is the always-proper attire of a Moon tank (this time purely decorative) neatly positioned between the SO-CAL Speed Shop 7-inch sealed beam headlights resting on RBSR stands. Albor and Carry Buck, more of the RBSR team, were responsible for the metalshaping and bodywork. To keep proportions between the doors and rear quarter-panels in line, the doors were shortened by 2 inches while the rear quarters were lengthened by 2 inches. Now for the obligatory “hot rod” mods: the top was chopped 3 inches while the body was channeled over the frame 6 inches, the rear wheelwells were raised 3 inches, and custom wheeltubs were inserted to allow the wheel/tire combo to sit tight to the body. Possibly the most difficult and time-consuming sheetmetal work revolved around the reshaping of the rear (back panel) of the body. The rear of the body was reshaped to look more like that of a ’32 sedan, having a convex (bubble) shape rather than a flat panel appearance across the rear. At first, you may not see this modification as the evocative pinstriping by Eric Reyes of Eric Reyes Design is “kool” and draws your eyes to the lines. The ’striping gives the illusion that the rear panel is smaller and at the same time the pinstriping is absorbing, taking your eye to a different “place.” After Albor completed the bodywork, it was off to Vintage Color, where Darryl Hollenbeck applied the PPG black (no metallic). Once this was accomplished, the longtime “guru of paint,” Art Himsl, laid out the traditional flames and painted them, and once more, Reyes handled the pinstriping masterfully. Once this was accomplished, Himsl laid out the traditional flames and painted them, and once more Reyes handled the pinstriping masterfully. Once completed, it was back to Vintage Color, where Hollenbeck applied the clear and “rubbed” out the completed paintjob. When it came time to assemble this great-looking phaeton, it was Dan Hall of the RBSR team who did much of the heavy lifting, and his efforts were clearly visible.

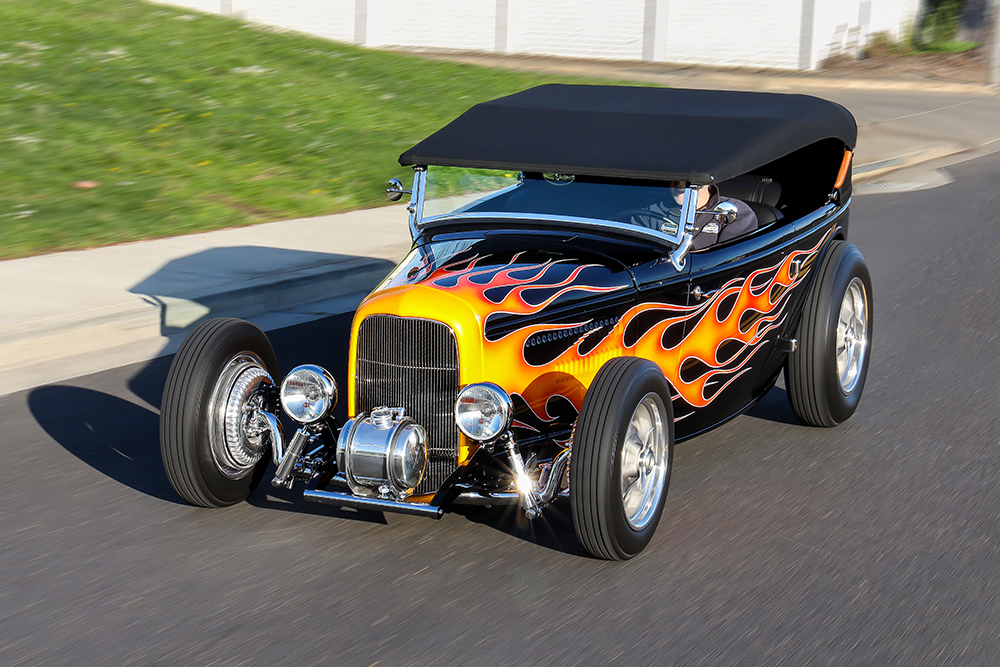

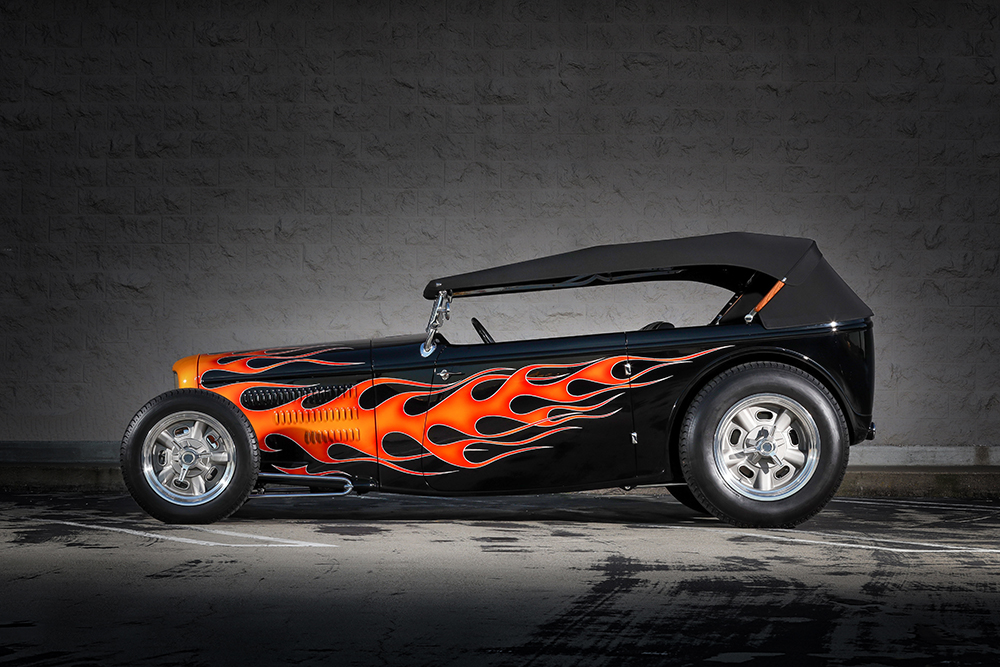

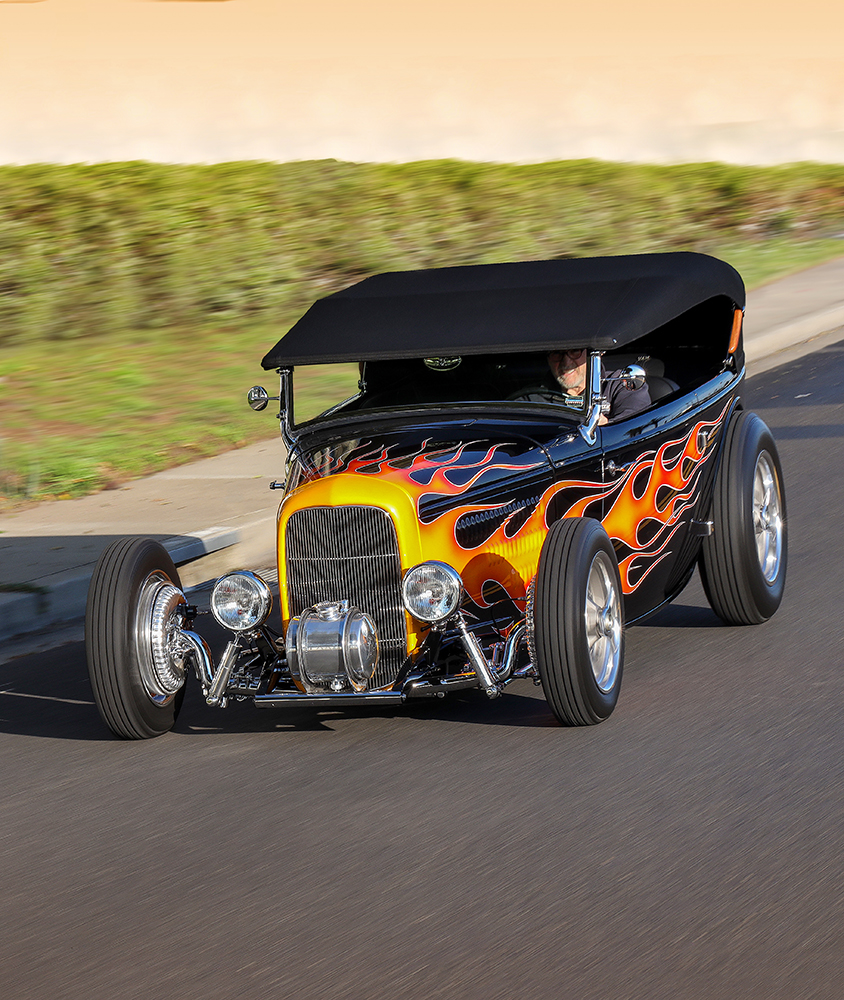

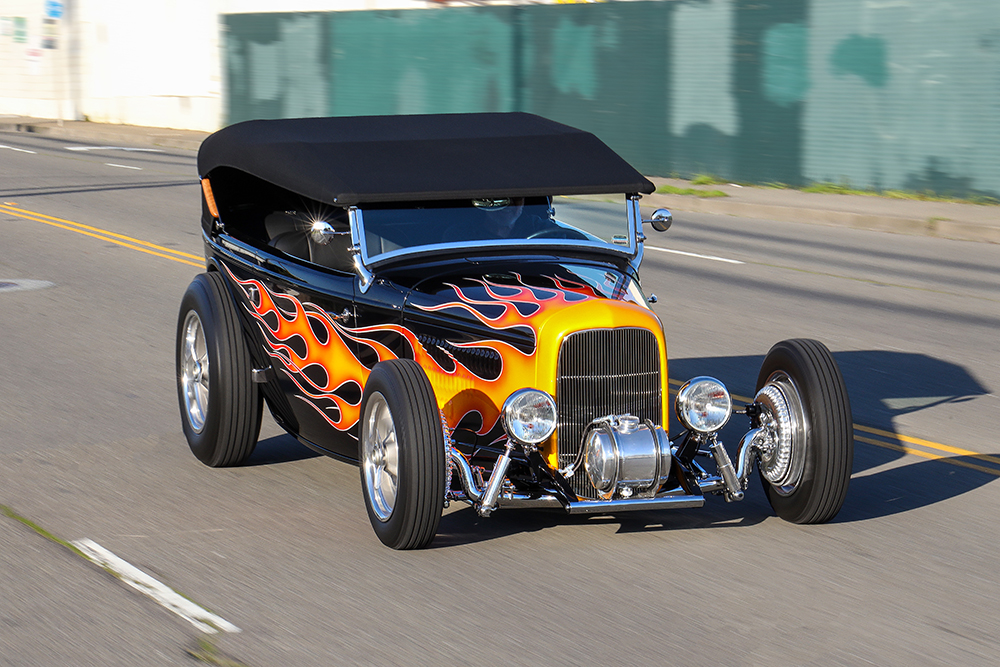

04 1932 ford lowbody phaeton black with flames driving

- Advertisement -

Read More: Hemi Swapped 1932 Ford Roadster

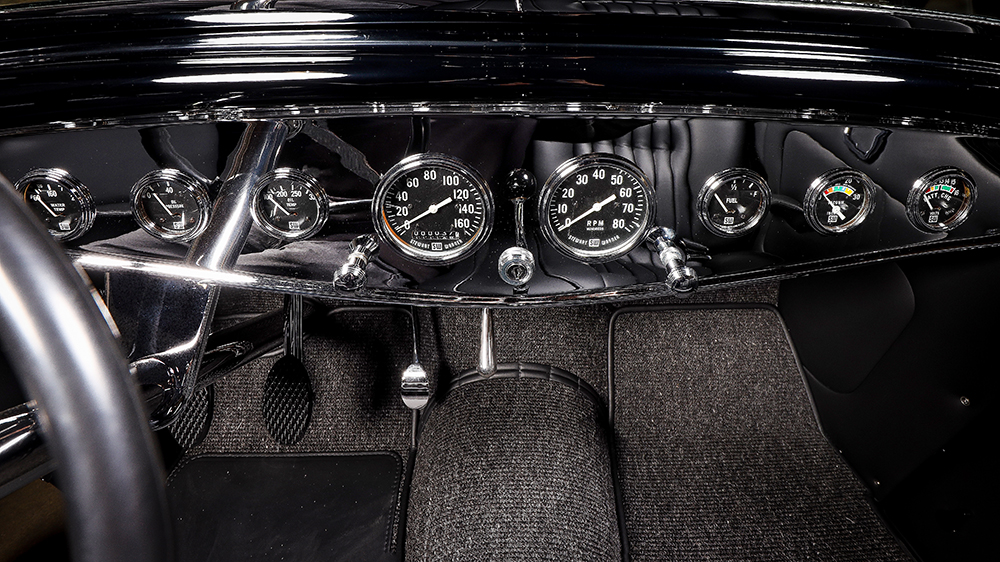

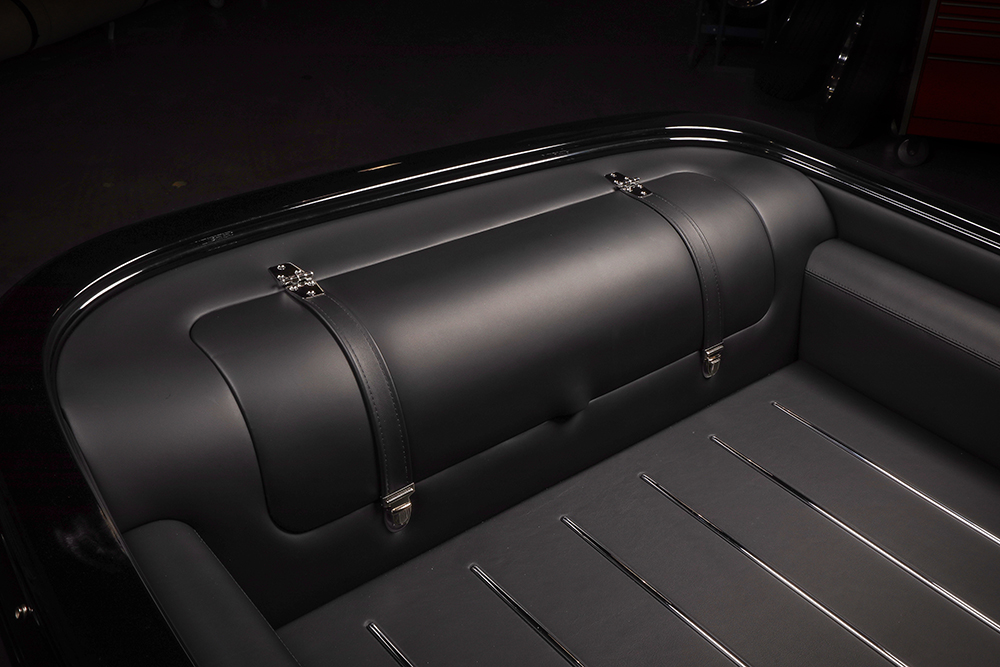

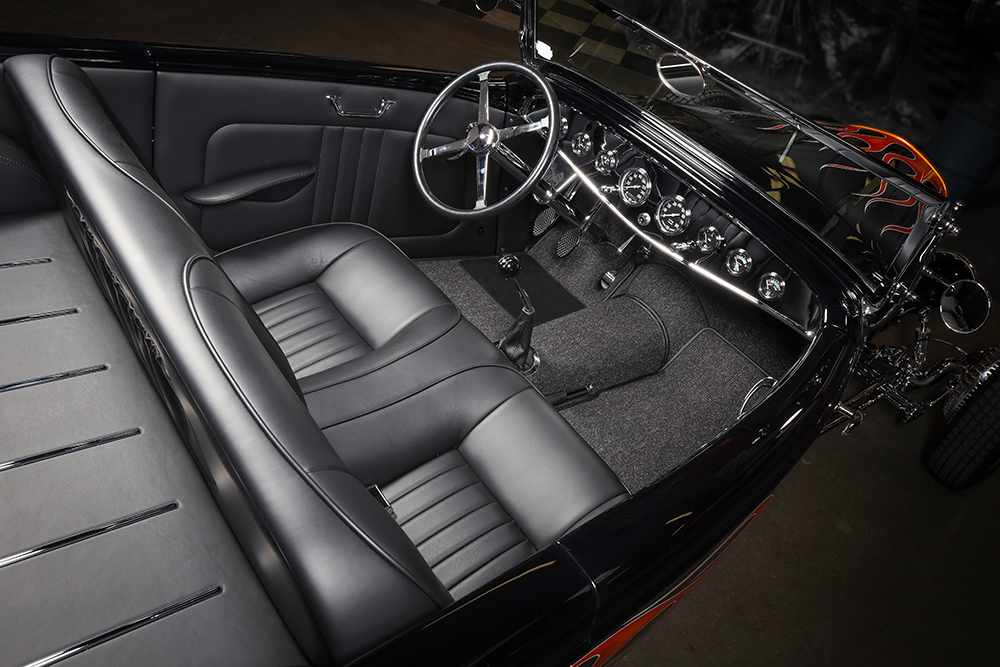

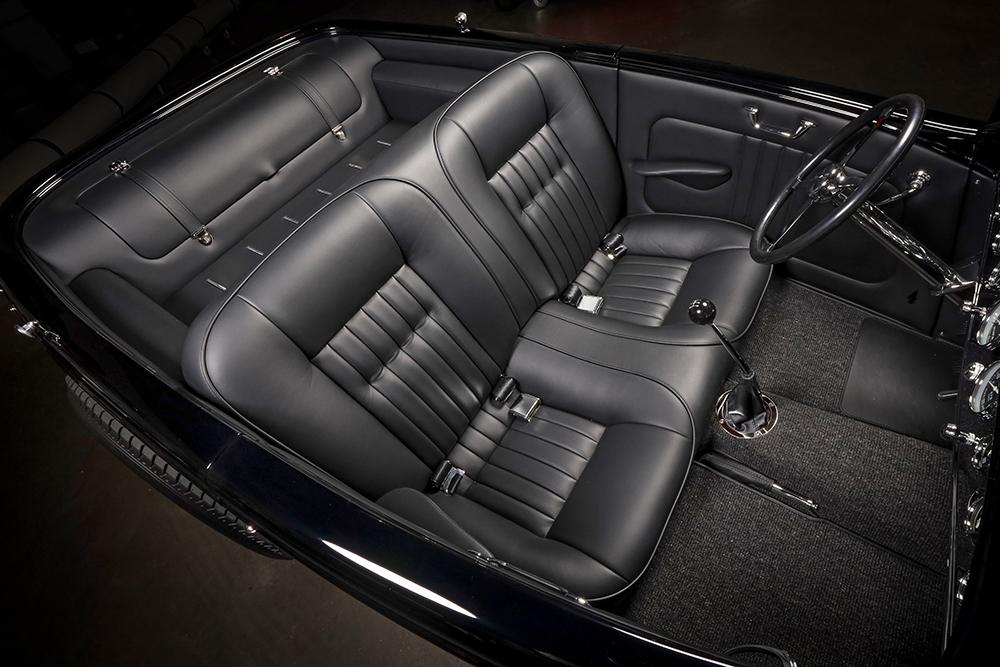

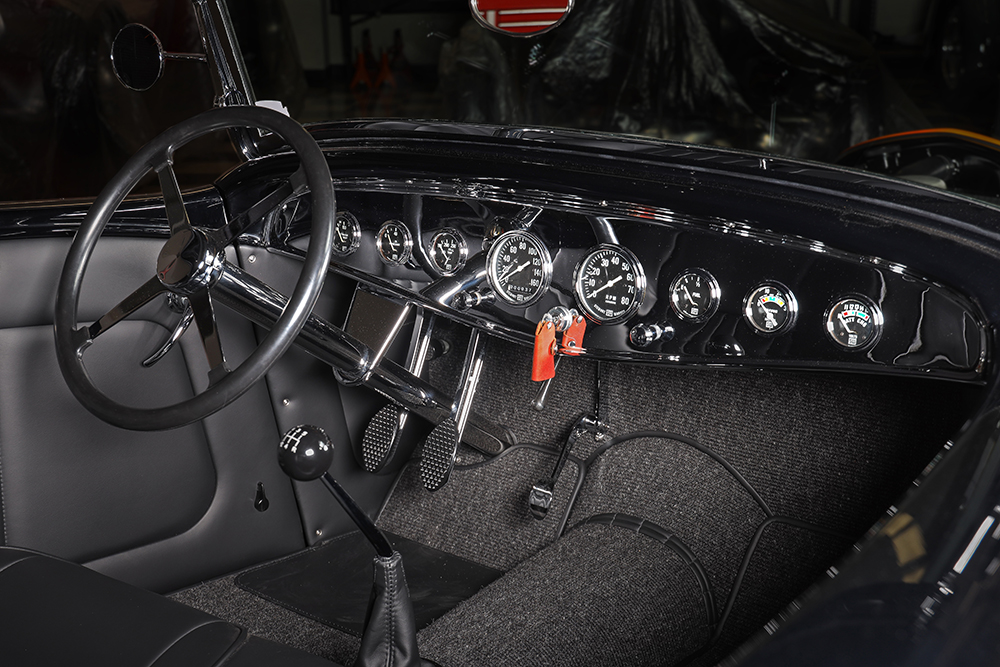

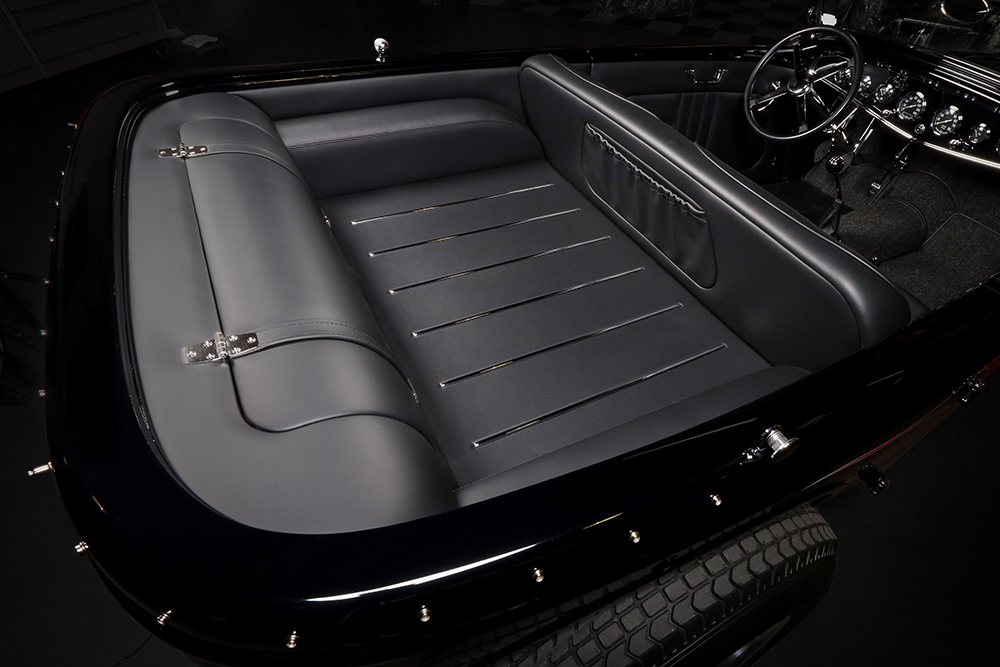

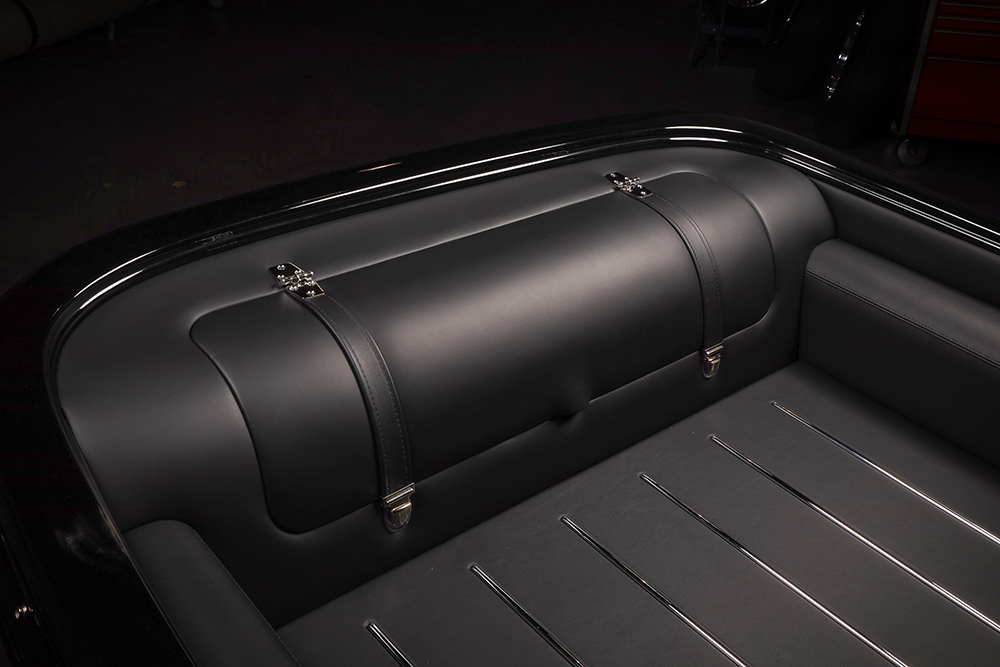

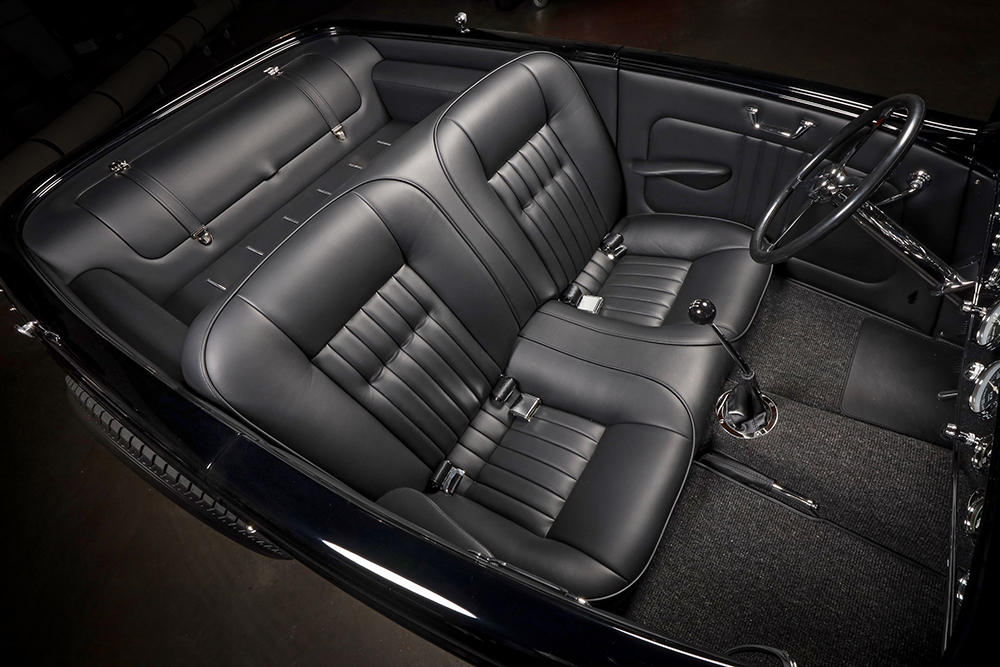

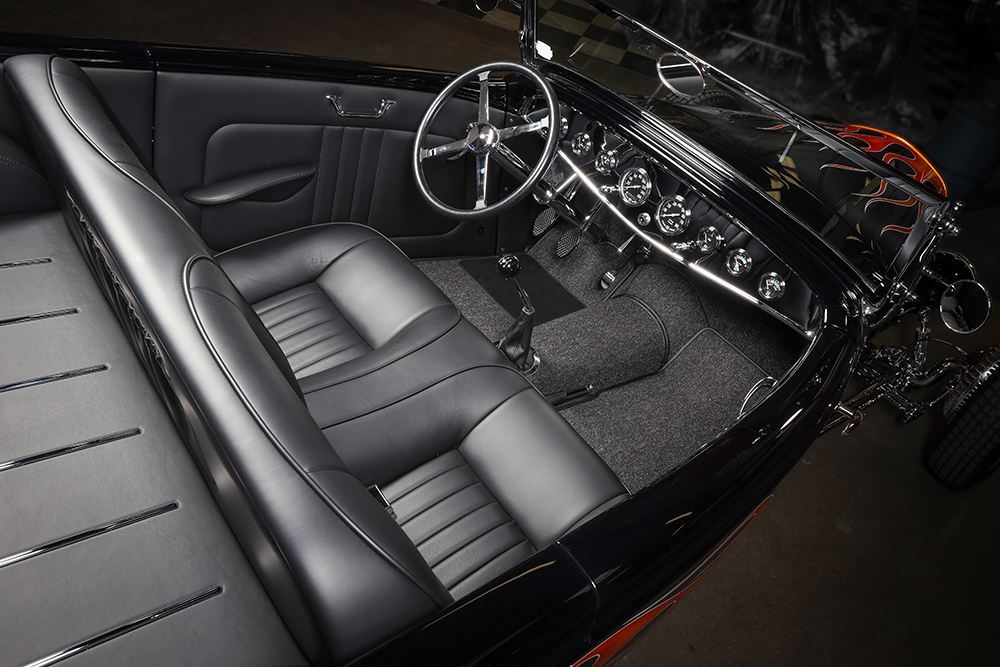

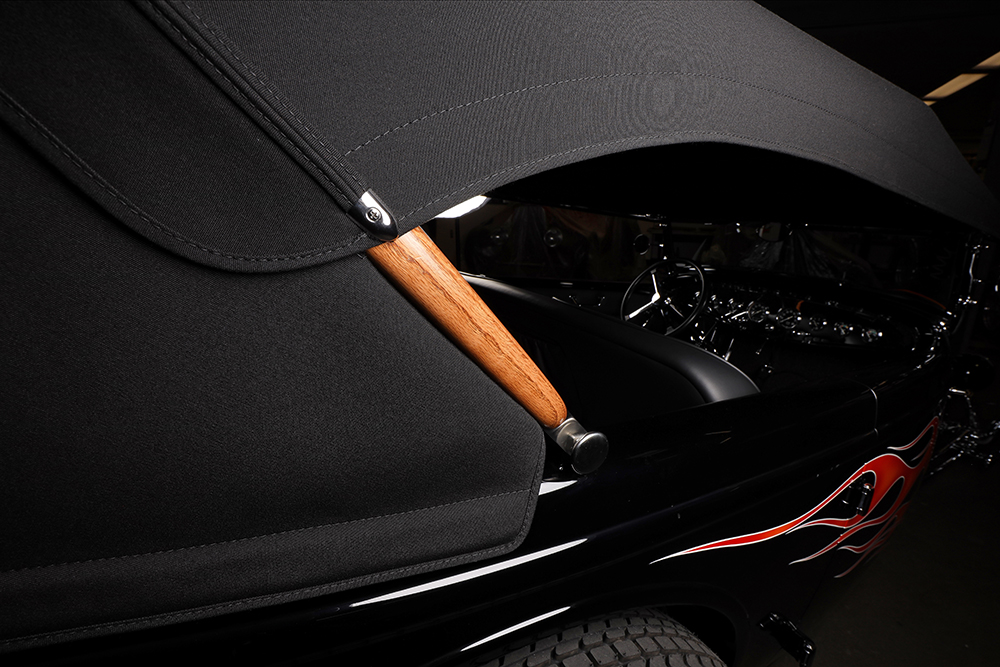

Inside, it’s an unmistakable hot rod in its presentation. The required black leather upholstery wraps the forward bench-style seating and the custom rear luggage area (now sans seating). The custom luggage area provides space for a compartment that houses the stainless steel Rick’s Tank and the Optima RedTop battery. As is the standard for a Brizio-built hot rod, Sid Chavers of Sid Chavers Company performed his craft masterfully stitching the interior, including the top and fabricating the custom rear storage area. Other required appointments include the three pedals (Lokar throttle and Moal Coachbuilders swing-pedal brake and clutch), a Bell four-spoke wheel that rides atop the LimeWorks hot rod steering column, the Lokar manual shifter functions in its traditional position, and the body-colored ’32 dash is filled with eight restored Stewart-Warner gauges by the Gauge Guy. The custom wiring handled by Jim Vickery of the RBSR team is bringing the instrumentation and the remainder of the hot rod electrics to life.

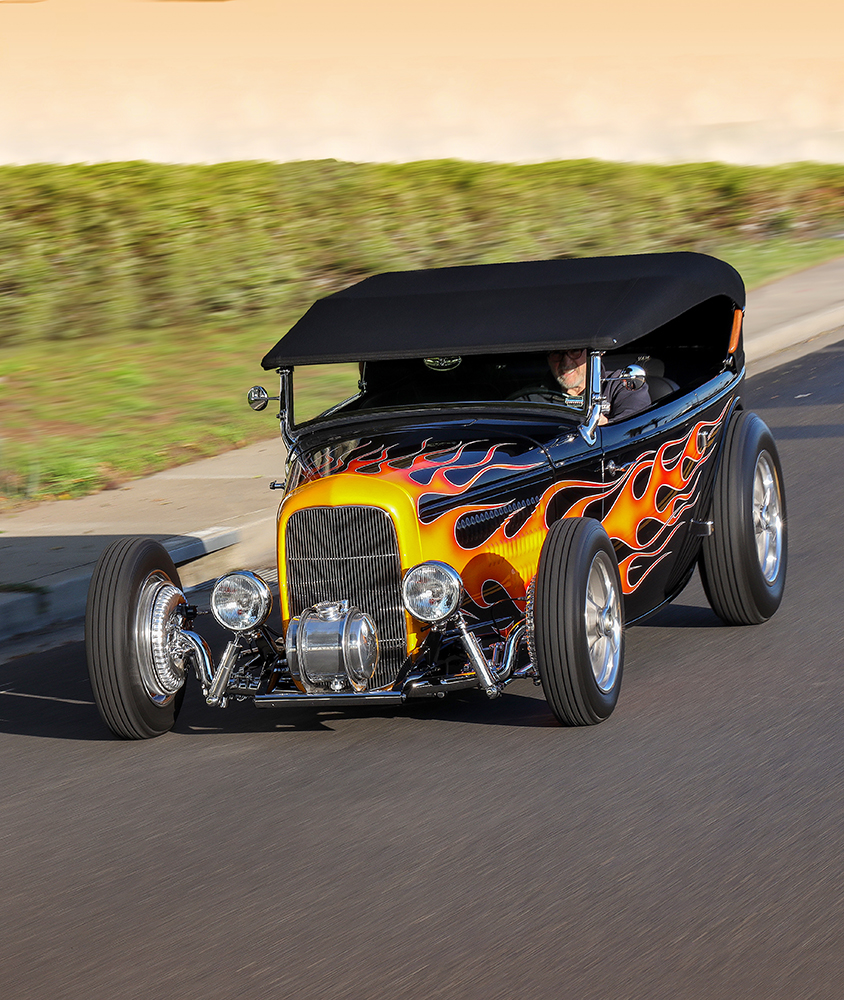

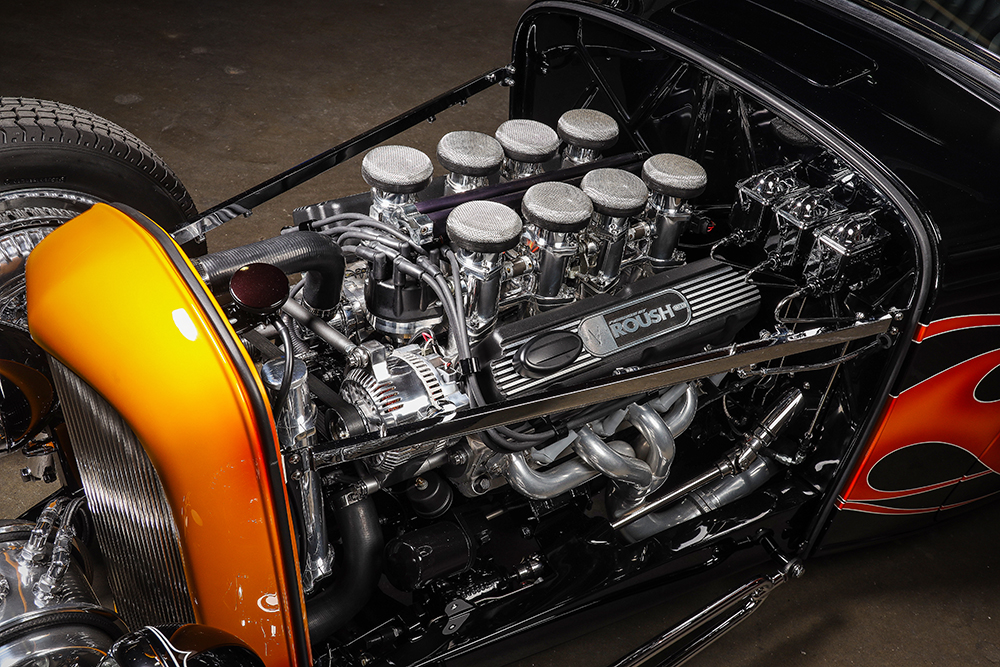

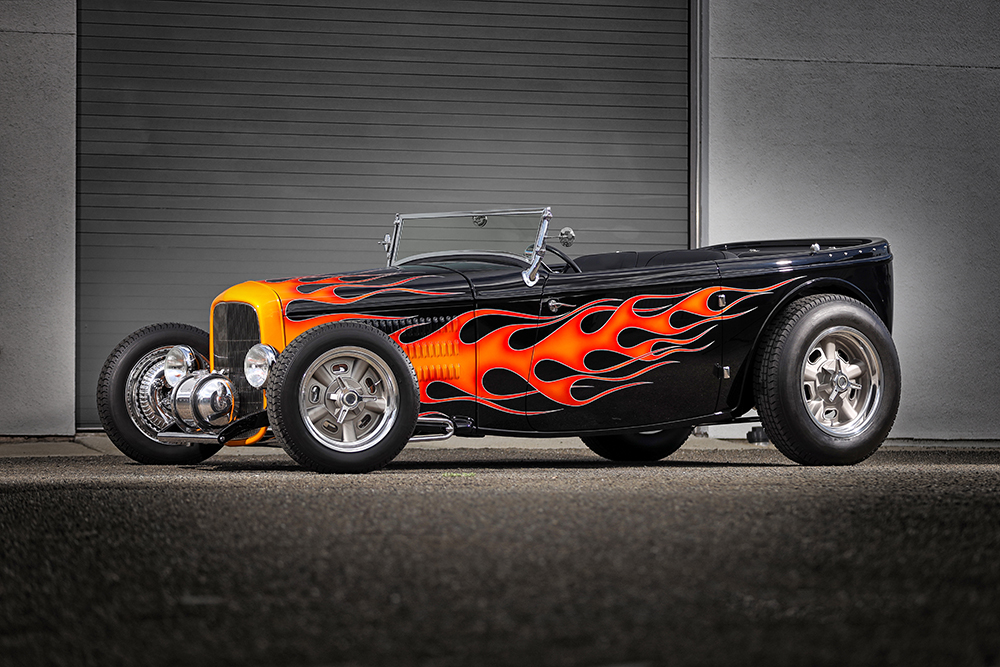

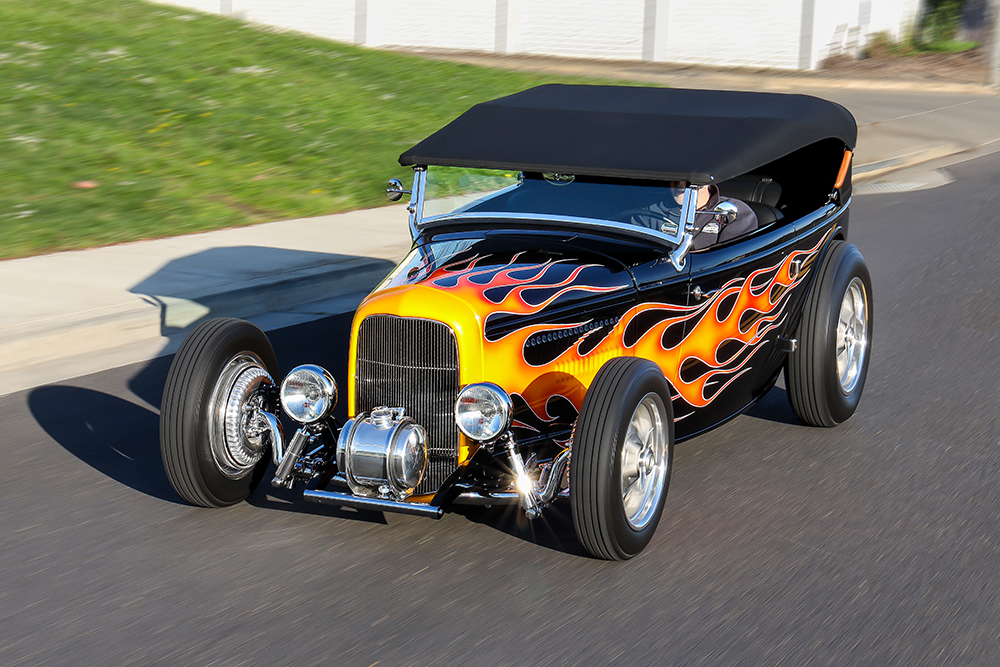

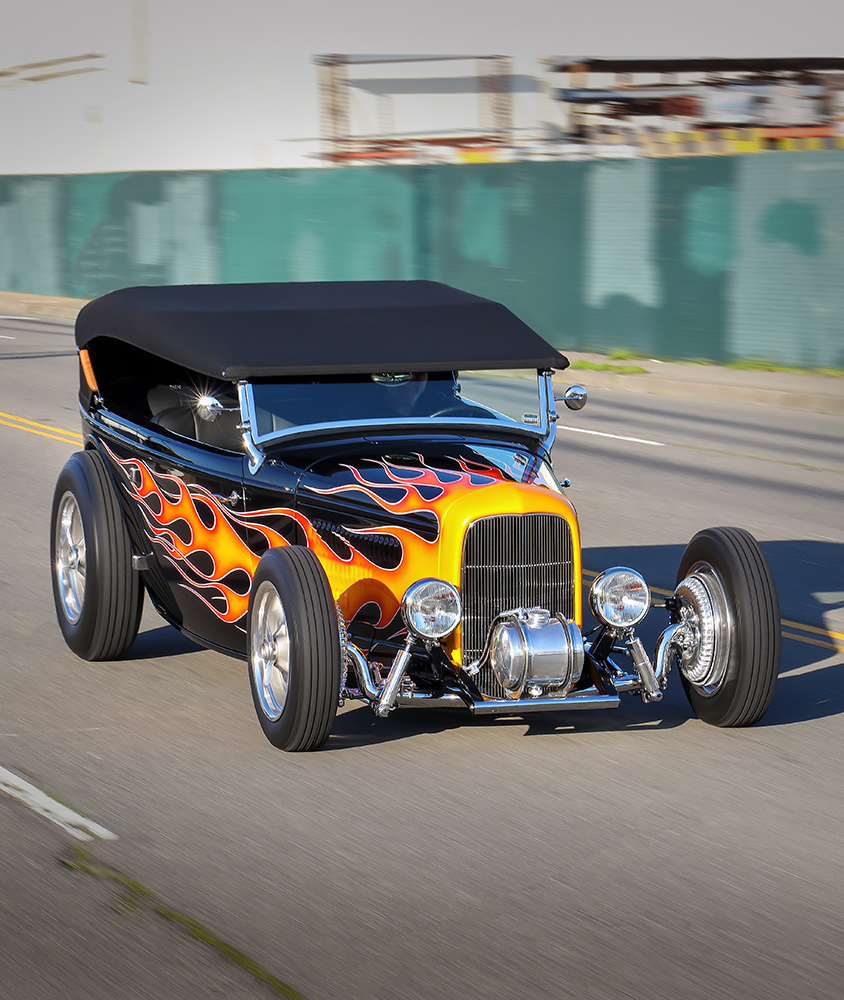

05 1932 Ford old school roadster in motion showcasing black and orange flames front side view 06 Chrome engine close up with air filters on a 1932 Ford vintage vehicle

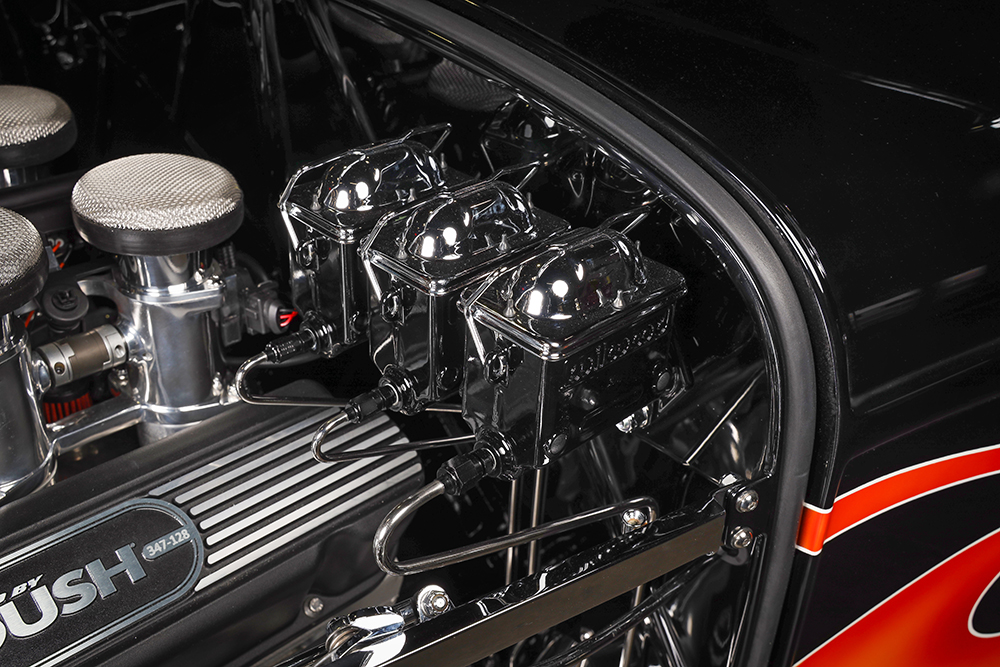

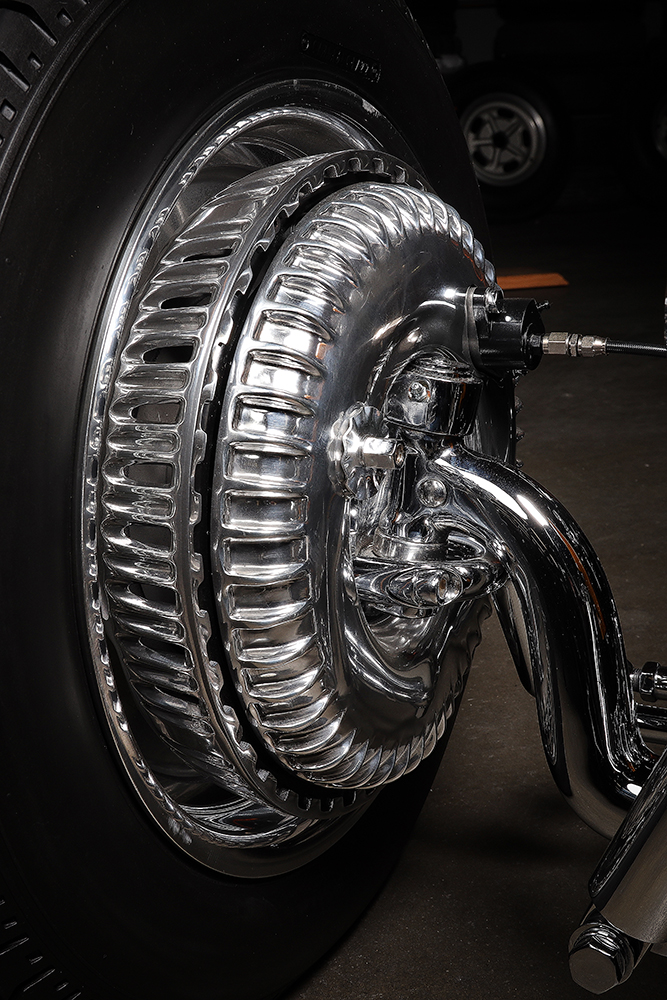

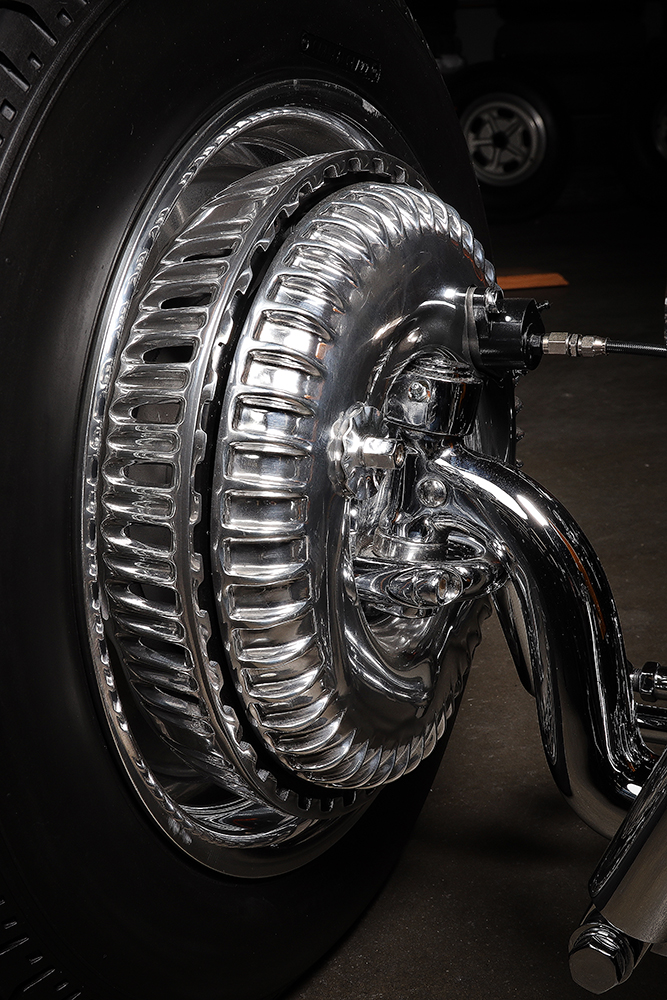

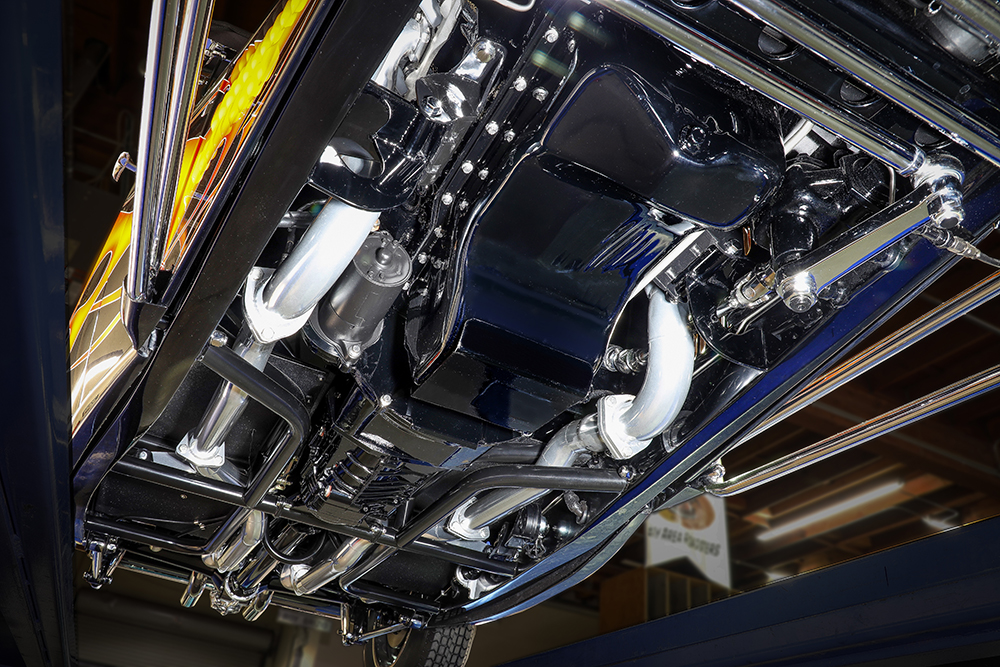

Next up is the chassis, which is founded on Total Cost Involved boxed framerails that were then pinched in front and kicked up in the rear, all by Jack Stratton of RBSR. The front suspension is centered on a chrome Super Bell 5-inch drop tube axle and spindles with a Borgeson Vega-style steering box and Moal Coachbuilders torsion bar setup that features polished QA1 adjustable tube shocks at both ends. The front braking is based on the Alan Johnson Kinmont-style brakes with internal Wilwood disc calipers. In the back, the Winters quick-change, spinning 3.78 gears, is outfitted with Wilwood calipers and rotors that are pressed into service through a Wilwood master cylinder. Wilwood also receives the nod for the hydraulic clutch package. A distinctive hot rod approach is the wheel and tire combination featuring Excelsior by Coker rubber measuring 5.00×16 and 7.00×18 and wrapped around 16×5 and 18×7 E-T Mags Indy style by Team III Wheels.

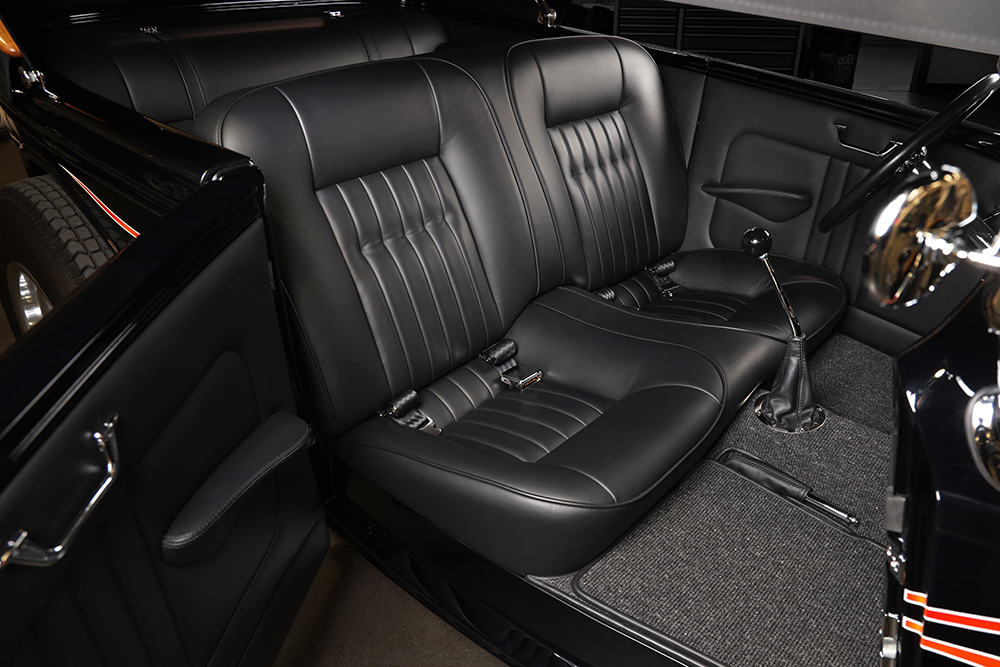

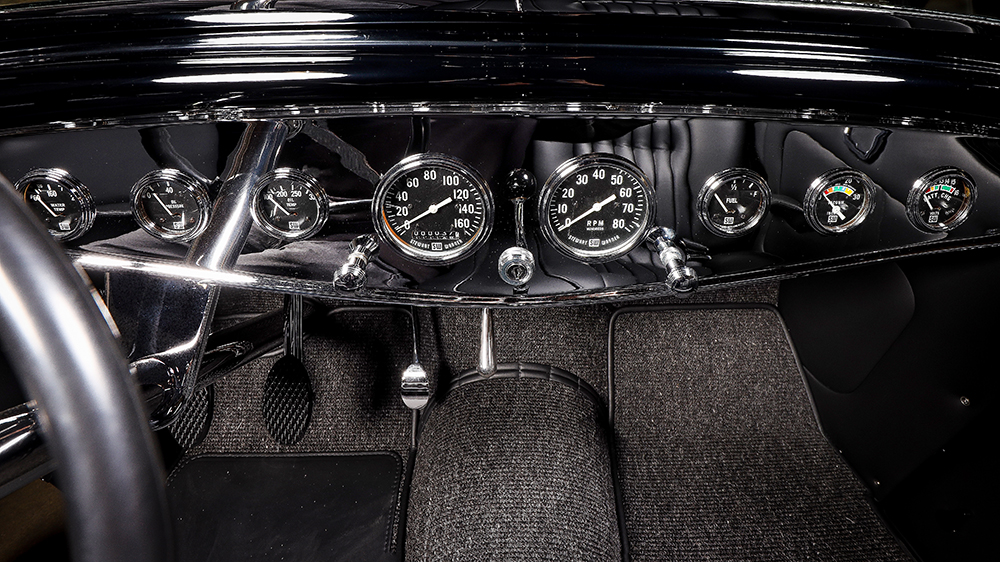

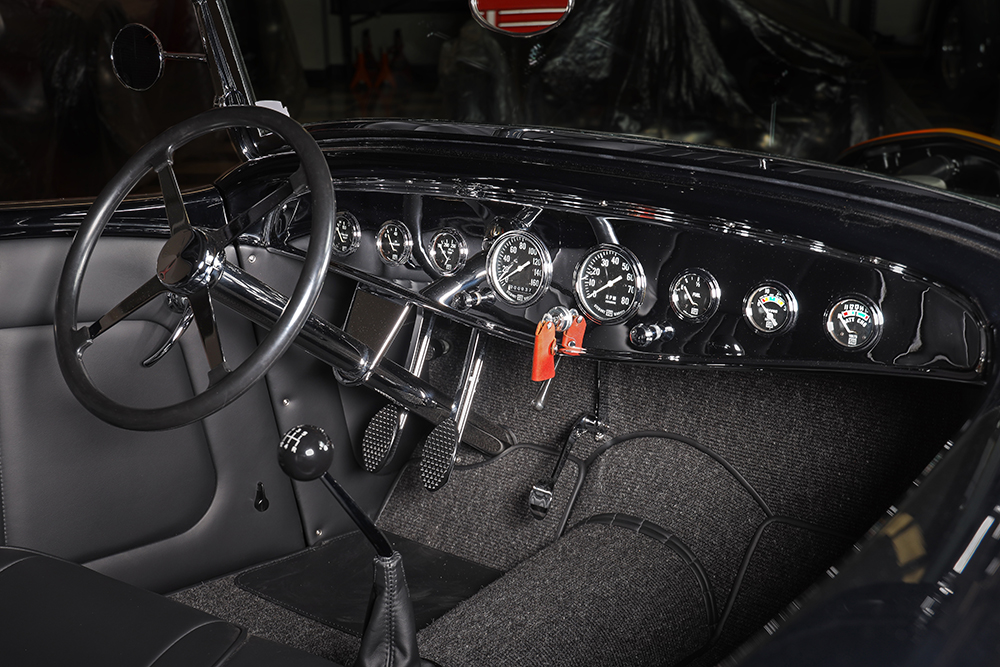

07 Interior shot of a 1932 Ford roadster with luxurious black leather seats 08 Vintage gauges and chrome finish on the dashboard of a 1932 Ford car

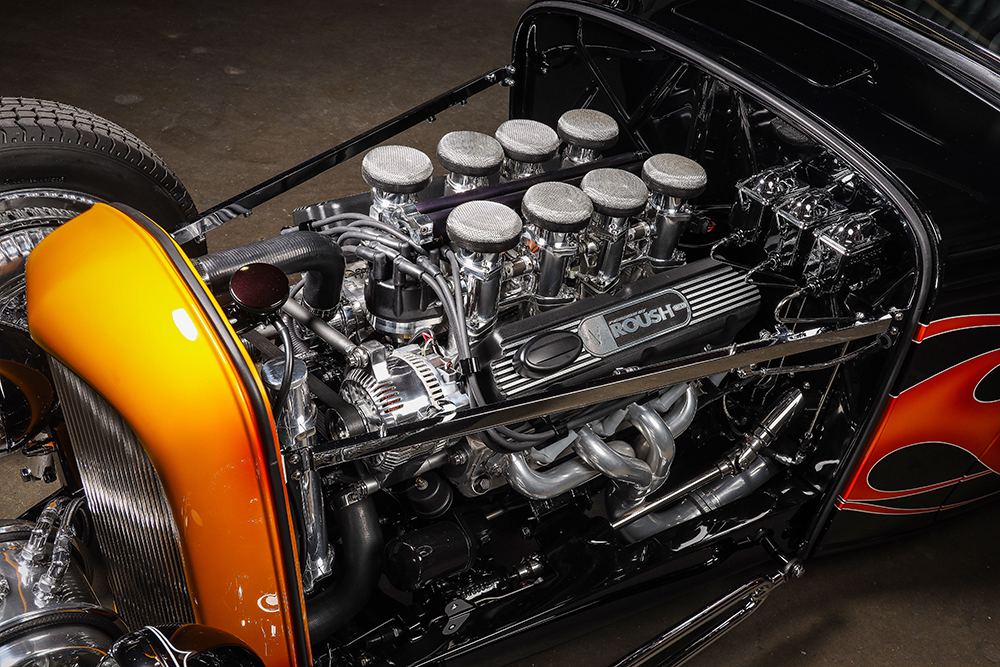

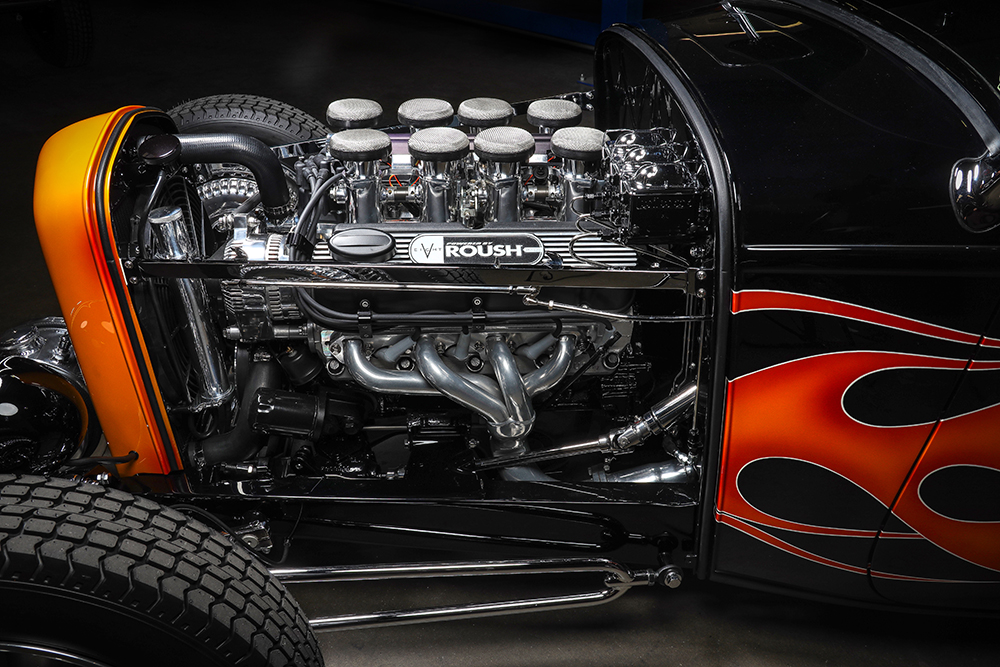

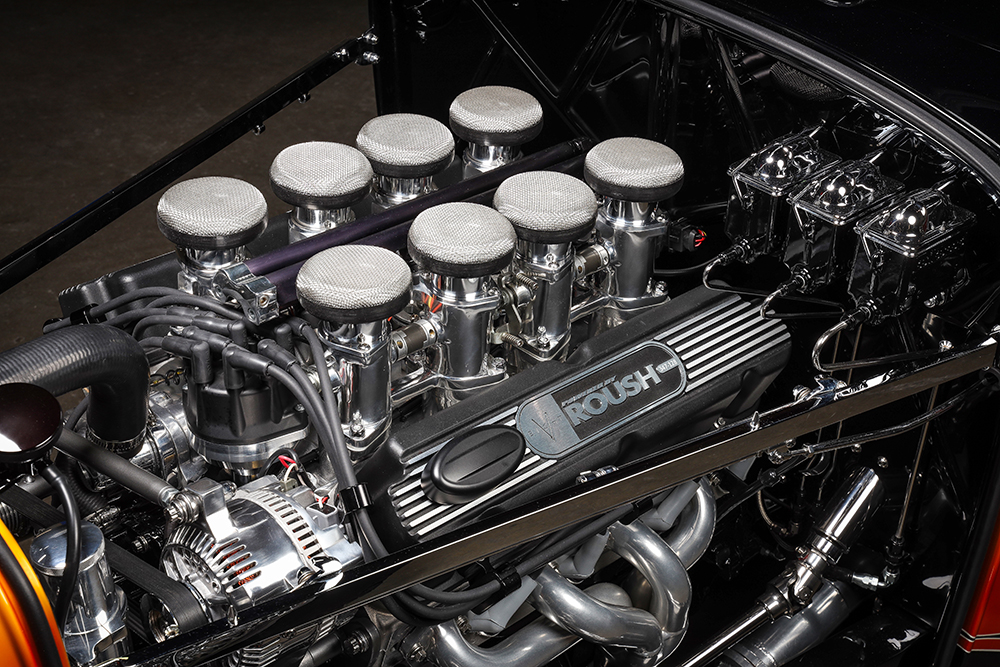

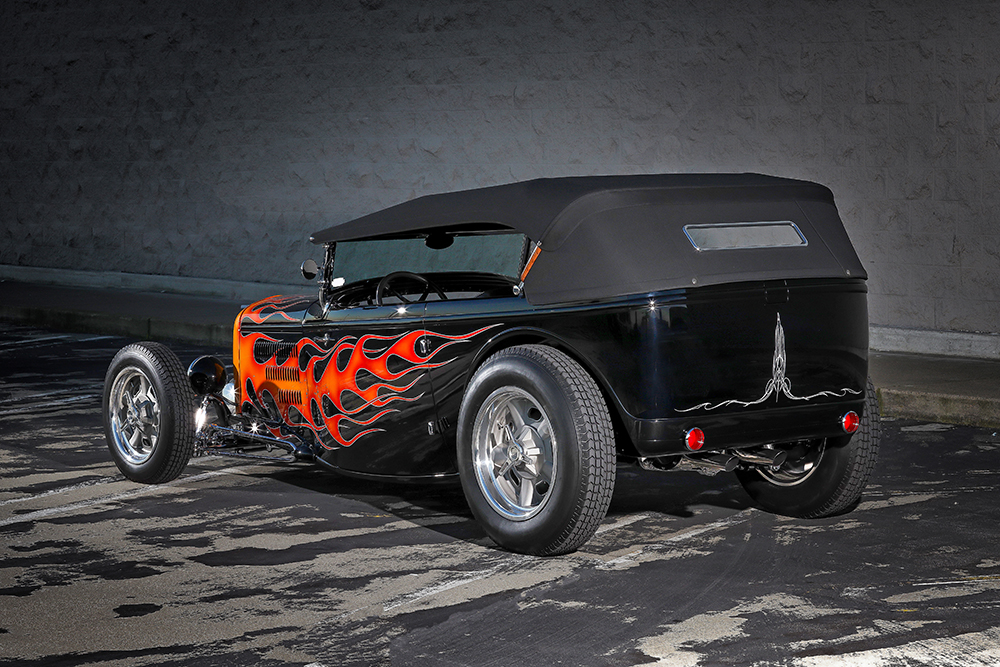

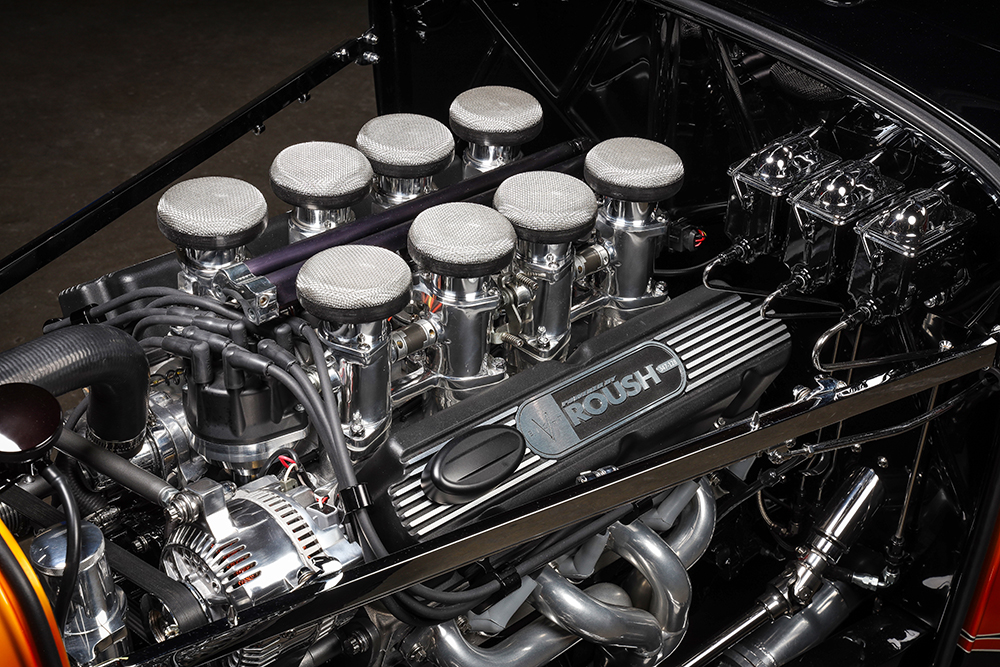

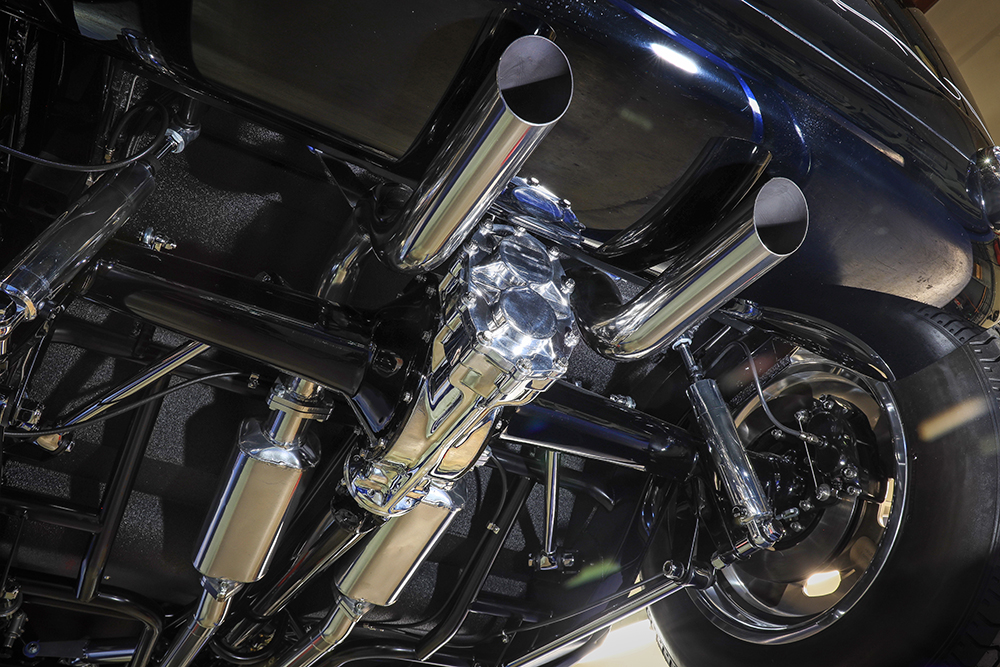

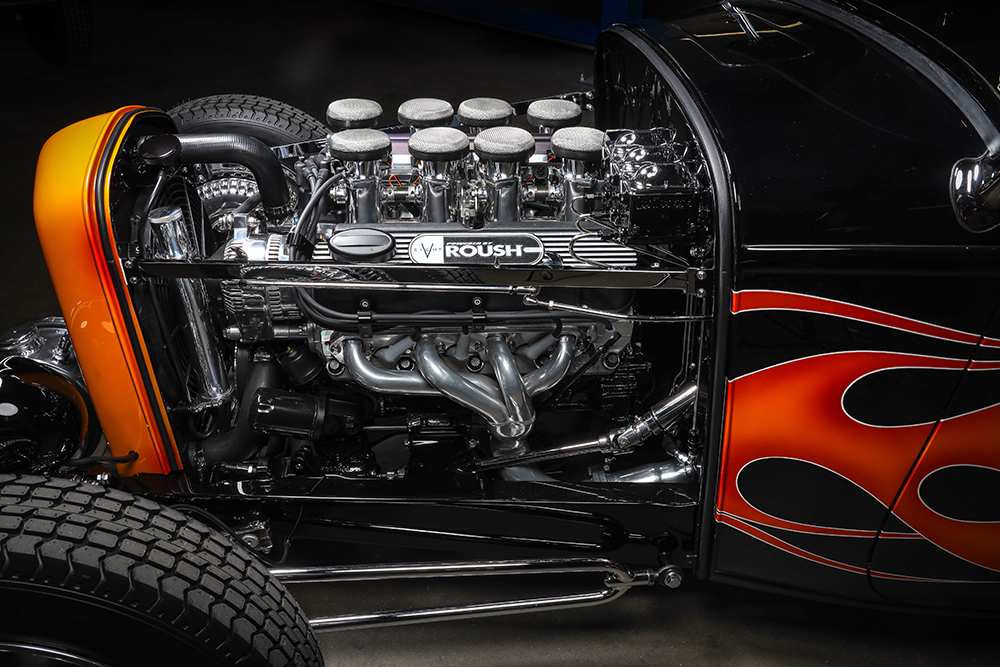

Once again, what’s under the hood can often make or break a hot rod’s acceptance. Our AMBR-winning ’32 Ford lowboy phaeton has the “goods” underhood. The Ford V-8 is based on a 347ci Roush, which is based on a cast-iron Dart block with aluminum heads. From here, the 400hp small-block Ford shows off Roush valve covers surrounding a Borla eight-stack 50mm throttle body equipped with EFI that uses a FAST ECU, Roush plug wires, and an MSD distributor and coil. Feeding the 347 is an electric Aeromotive 340 Stealth fuel pump. Topping the Borla throttle bodies are the Borla-supplied individual screens that are effective air cleaners. Other engine accessories include the Powermaster alternator and starter, Mattson’s Custom Radiator cooler with SPAL electric fans, and the RBSR team serpentine belt system. Exiting the spent gases are a pair of Sanderson 1-1/2-inch tube headers that dump into 2-1/4-inch exhaust tubes that run back to a pair of Flowmaster Hushpower Pro mufflers. The exhaust tips dump just under the roll pan, which is the home for the Greening Auto Company taillights. A TREMEC five-speed is used with a Lokar shifter, while a Modern Driveline hydraulic clutch package consisting of the flywheel, pressure plate, and clutch is used.

09 Overhead interior view of the 1932 Ford roadster's elegant black leather seating

Read More: Traditional 1930 Model A Sedan With A Twist

Beth and her husband, Ross, are no strangers to hot rods and have been involved for many years. In fact, in the Sept. ’23 issue of Modern Rodding, Ross’ ’57 Ford Ranchero (another Brizio-built hot rod) enhanced that month’s cover. It should also be noted that Ross and Beth won the 2007 Ridler with their ’36 Ford coupe, a Rad Rides by Troy effort.

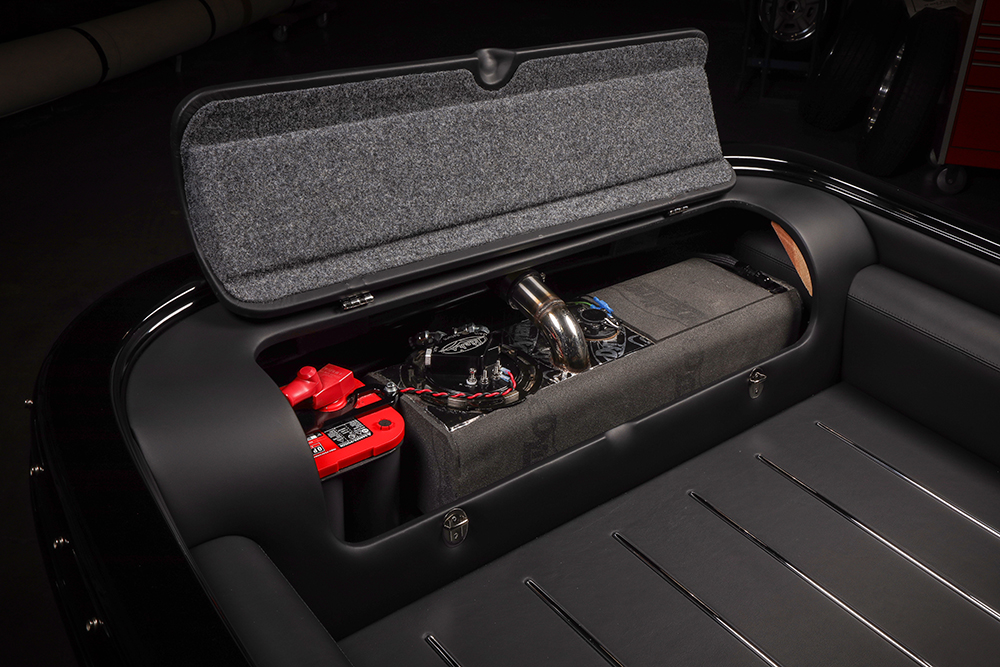

10 Rear storage compartment and battery setup in the trunk of a 1932 Ford roadster

In closing, we should note that Beth’s husband, Ross, should be familiar to Modern Rodding readers, having been exposed to a six-part series on his Rad Rides by Troy-built ’36 Ford roadster. This hot rod will make its debut in the 2025 GNRS. We shall see what the rodding world has to offer. MR

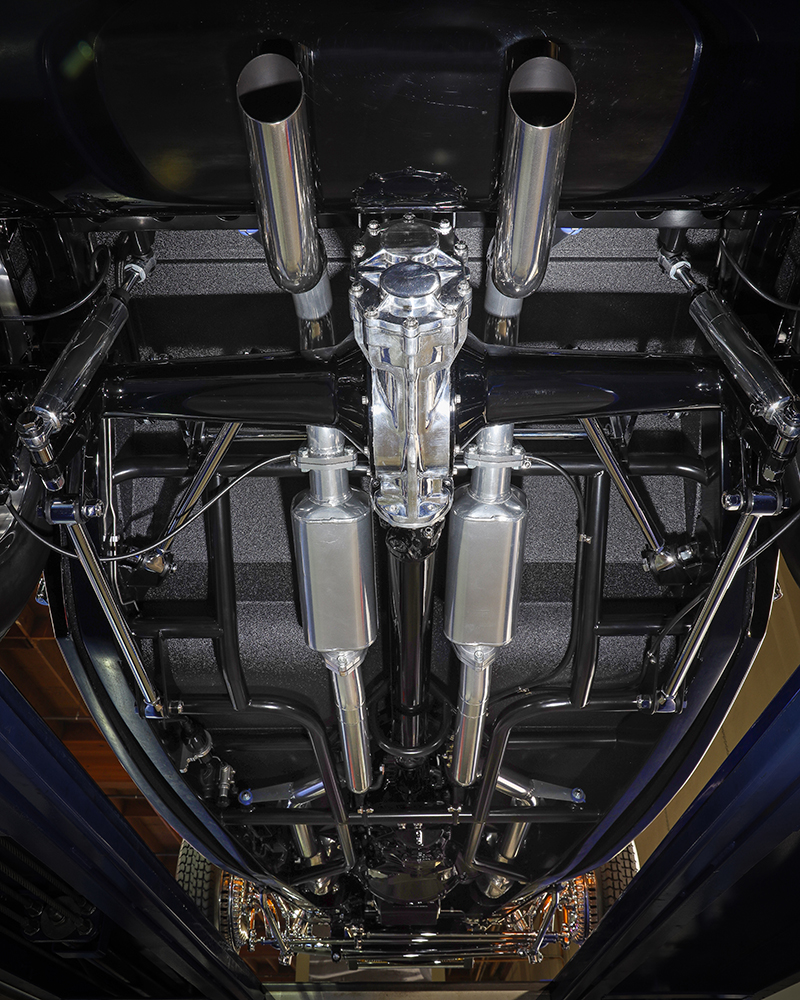

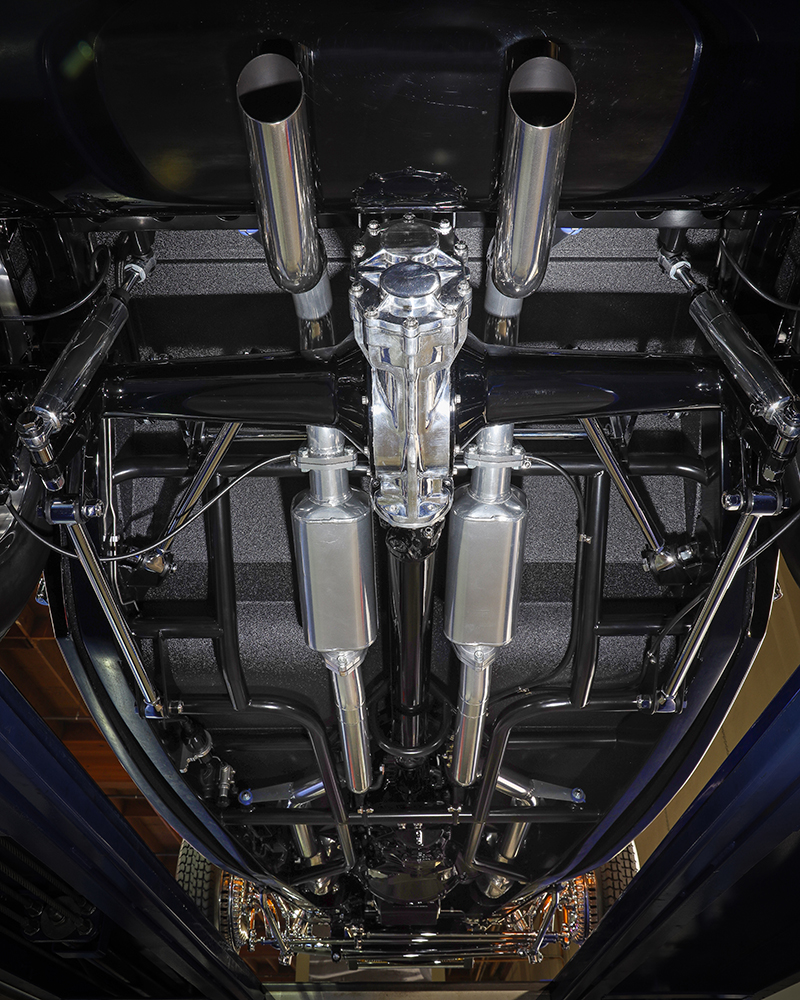

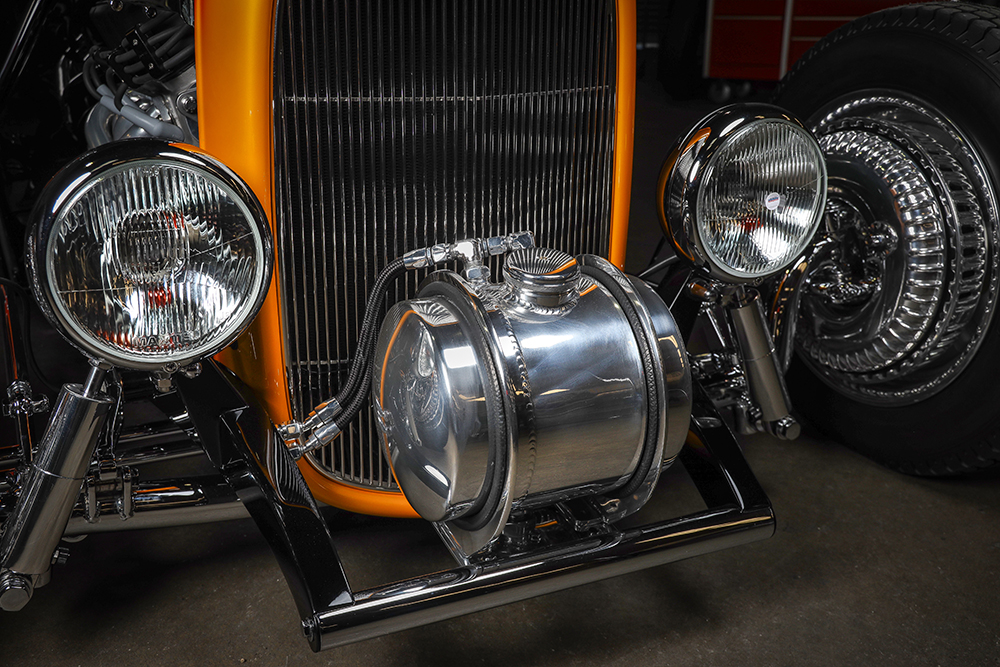

11 Close up of a 1932 Ford's chrome headlight and suspension with orange grille detail 12 Underside view of a 1932 Ford's chassis showing exhaust system and suspension
