How To Install a New Radiator Core Support in Your 1966-1971 Ford Torino, Fairlane, or Ranchero

Radiator Core Support Replacement

By Brian Brennan

Think back a few months (May ’21 issue) to our 1969 Ford Torino Cobra Jet 428 4V Q-code project. We’re back! The last time we replaced the passenger-side quarter-panel. Yep, our Torino was in dire straights and needed lots of attention. Knowing this, we rounded up a fresh radiator core support (PN 350-8469) from Auto Metal Direct and visited Craig Hopkins at The Installation Center where he quickly showed us how to replace a tired, worn, and/or rusted radiator core support.

- Advertisement -
02 Lining up the hood and fender of the 71 Ford Torino making sure everything is straight

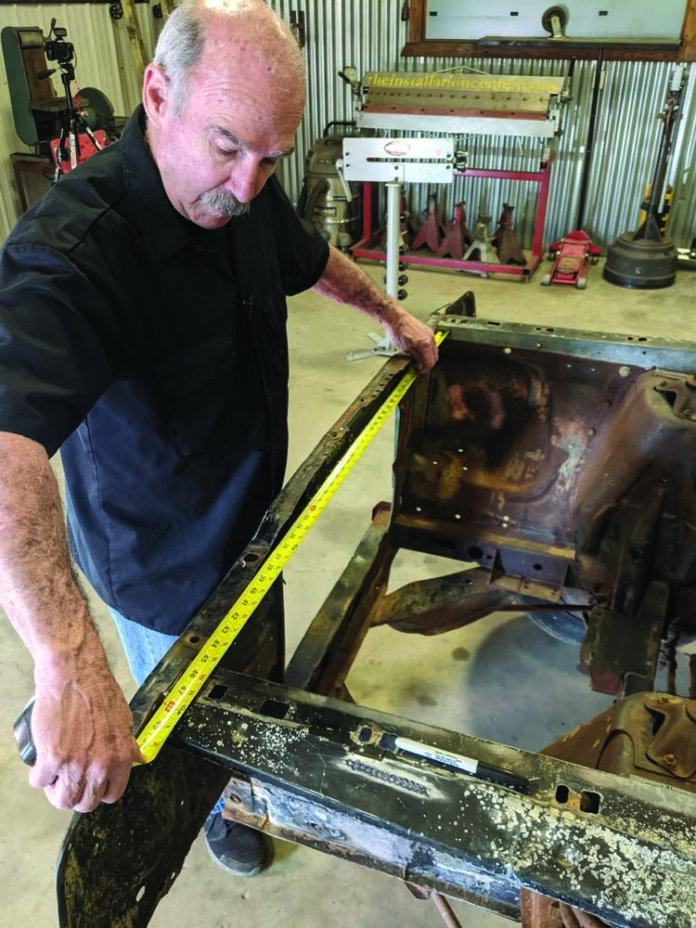

Craig Hopkins is measuring the front panel, no matter what the shape, before removing it. In our case the hood and fenders lined up well, telling us the front end is in good shape with regards to factory gaps.

While it truly fits our Torino Cobra Jet, this radiator core support will also work on 1966-1971 Torinos, Fairlanes, even throw in the Ranchero as well. While you are at it, you might want to also consider replacing both upper and lower radiator support mount brackets; upper (PN 351-8467-3 replaces factory PN C7OZ-8A193-A) and lower (PN 351-8467-2 replaces factory PN C7OZ-8052-A).

03 Pulling out the air chisel to begin removing the radiator core support
Hopkins unleashed his air chisel and begin the removal process for the radiator core support.

Read More: How to Replace The Quarter Panel on a 1968-1969 Ford Torino Sportsroof

A little more on fit. The reproduction radiator core support will work on all engine sizes except the six-cylinder model. According to Auto Metal Direct, “It’s stamped from a high-quality OE 20-gauge steel on new tooling and each radiator core support features the correct original shapes, size, bends, tabs, and holes as the original.” It comes bathed in an EPD coating to protect it against corrosion. (EPD is “electrophoretic deposition” or more commonly called “electrocoating.” It’s an immersion wet paint process that uses electrical current to help the paint product bond to the metal surface.)

- Advertisement -
04 Auto Metal Direct offers new panels for classic fords but these were in good shape
Hopkins begins by cutting from the inside along the inner fender. (Auto Metal Direct offers these panels new, but since these panels are in good shape they were worth saving.) Be careful not to remove more metal than necessary; continue this process on the front side as well.

Of course for Hopkins, performing any magnitude of sheet metal work is just “another day at the office,” has done this type of job hundreds of times over the years. Throw in a full complement of tools and a proper workspace and a task such as this is well within his capabilities. The best part while he was doing the work, he could take the time to tell us the best way to approach such a project all the while “hammering and banging” on sheet metal without missing a beat (no pun intended).

05 Harbor Freight Air Hammer affordable and ready to use on the classic Ford
Available from Harbor Freight is the Chief Professional Medium Barrel Air Hammer (PN 56990) and the Professional 6-Piece Air Hammer Chisel Set (PN 56541). A handy tool that’s affordable and will be useful on many projects.

Anytime you are working on vintage sheet metal you want to make sure what you see is really what was intended by the original designers and the factory assembly team. How do you do that? Well, in our story here, make sure the fenders and hood are in good shape and that they line up (gaps) to your satisfaction. If they do you are good to go; if not, you will want to give some consideration as to where the problem is and make the necessary correction.

06 6 piece air hammer chisel set from Harbor Freight
Available from Harbor Freight is the Chief Professional Medium Barrel Air Hammer (PN 56990) and the Professional 6-Piece Air Hammer Chisel Set (PN 56541). A handy tool that’s affordable and will be useful on many projects.

Watch: 1969 Ford Torino Sportsroof Quarter-Panel Installation

As for tools you will want to make sure that you have a proper air chisel, welder, spot welder, hammer and dollies, 3/16-inch grinding disc to remove spot welds, vise grips, weld-through primer, and a full collection of C-clamps, both “deep and shallow throw.” To answer this question, we visited our local Harbor Freight store (which for me is online) and rounded up a handful of examples of the tools that will come in handy when doing a job of this nature; or any number of other hot rod projects.

- Advertisement -
07 Cutting the inner fender of the 71 Torino
Hopkins begins by cutting from the inside along the inner fender. (Auto Metal Direct offers these panels new, but since these panels are in good shape they were worth saving.) Be careful not to remove more metal than necessary; continue this process on the front side as well.

Unless you have copious amounts of time and a great deal of experience don’t expect this to be a weekend project. It can be but odds are this is going to take you three or four weekends to accomplish the task. Patience and safety will always yield the best results. Follow along with the photos and watch how  Hopkins performs a step-by-step operation for changing out the radiator core support. MR
