Old School 427ci Chevy Small-Block Build With Inglese Eight-Stack Injection

By Jeff Huneycutt   –   Images by the Author

The venerable first-generation Chevrolet small-block has been out of production for decades now. Since then, multiple generations of engines from various manufacturers have come and gone, but the small-block is still everywhere you look. Of course, it remains incredibly popular in several forms of racing—everything from drag racing to oval track and beyond—and it remains a favorite with hot rodders in general. Its reputation as a reliable engine that makes great power without breaking the bank is well deserved.

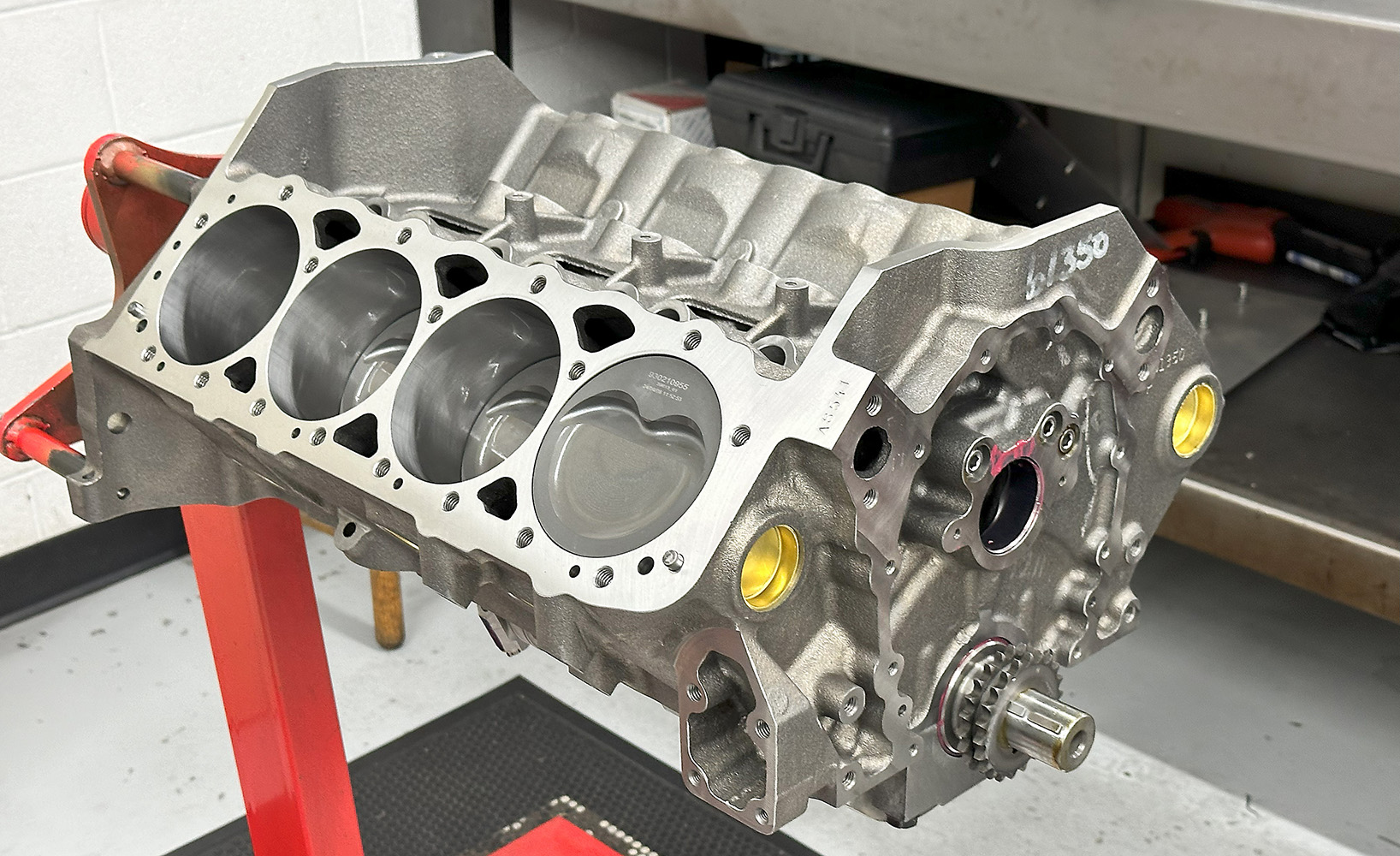

002 Bare 424 small block engine showing machined cylinders and installed pistons
The foundation of this build is a Dart SHP iron block because it can easily handle the extra bore and stroke Dorton needed to get to 427 ci. The rotating assembly is a forged Molnar Technologies crank with 4.00 inches of stroke, Molnar connecting rods, and a set of Mahle pistons with enough dish to keep the compression ratio in the 10.5:1 range even with the extra stroke.

Besides the ability to make big power pretty easily as well as its durability, one of the great advantages of the classic small-block is its versatility thanks to tons of aftermarket support. We’ve seen great small-block builds with carburetors on tunnel port intakes, giant roots blowers, twin turbos, you name it. And they’re all great. But one setup we don’t often see is individual runner intake setups like you often think of on old-school sports cars. That’s why we were excited when engine builder Keith Dorton of Automotive Specialists told us he was building a big-inch small-block complete with stack injection EFI from non-other than Jim Inglese Eight Stack Systems and instantly decided to tag along for the build.

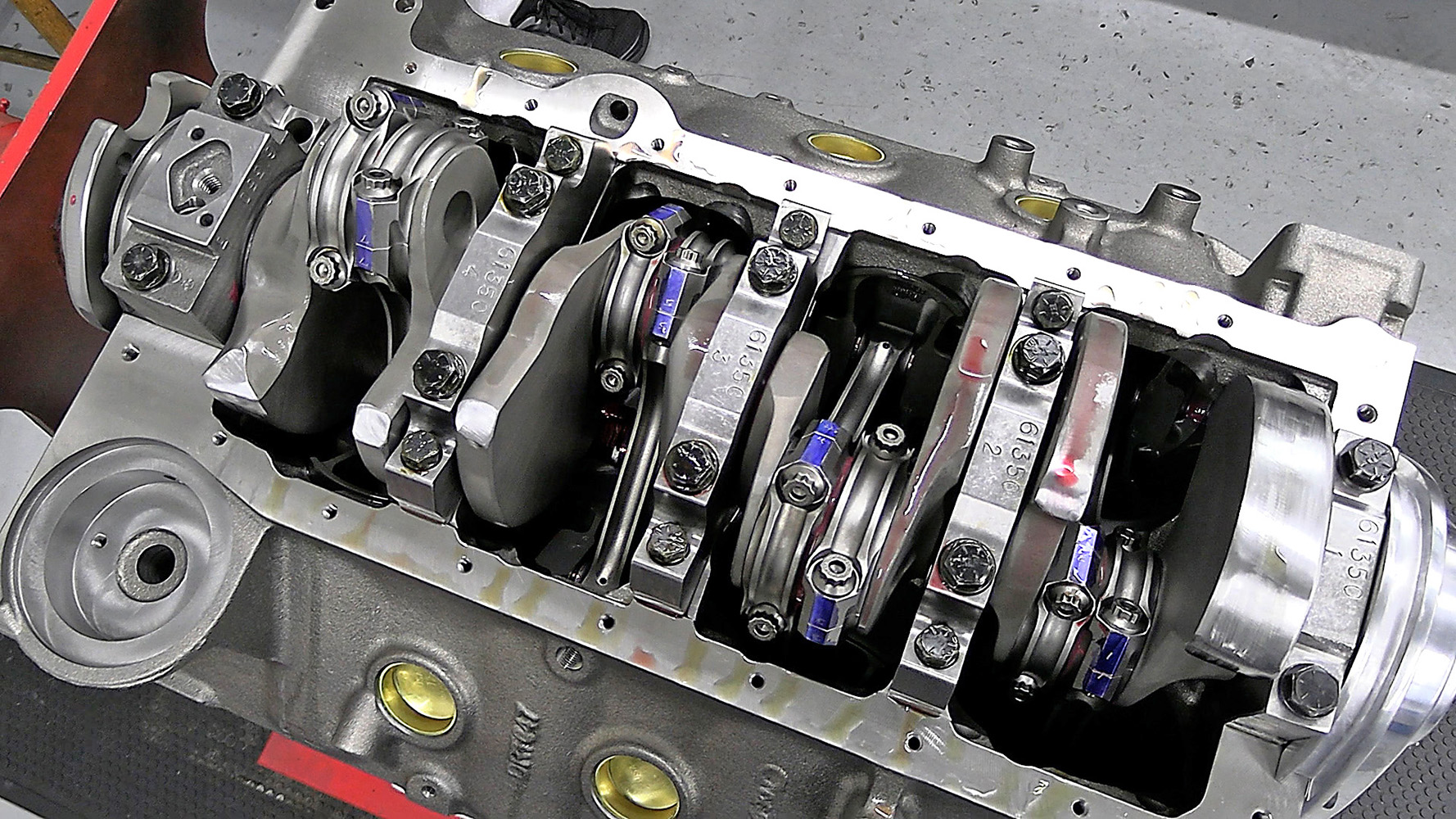

003 Crankshaft and connecting rods installed in the engine block secured with high strength bolts
Squeezing 4.00 inches of stroke in a standard deck height block is difficult, but Dorton was able to squeeze in a set of rods that are 5.850 inches long thanks to the short 1.125-inch compression height of the Mahle pistons. Dorton did have to cut small clearance notches in the oil pan rail (which you can see in this photo) so that the rod bolts wouldn’t hit thanks to the extra stroke, but that was all that was necessary.

After spending decades concentrating on high-performance race engines, specifically for stock car racing, Automotive Specialists has broadened its scope and lately has been working with high-end car builders for unique engine builds. This project is one of those. That’s why it is still in primer in the final photos. The plan is for the car builder to take back the completed engine, strip off the intake, tape up the rest, and give it a high-end basecoat/clearcoat paintjob.

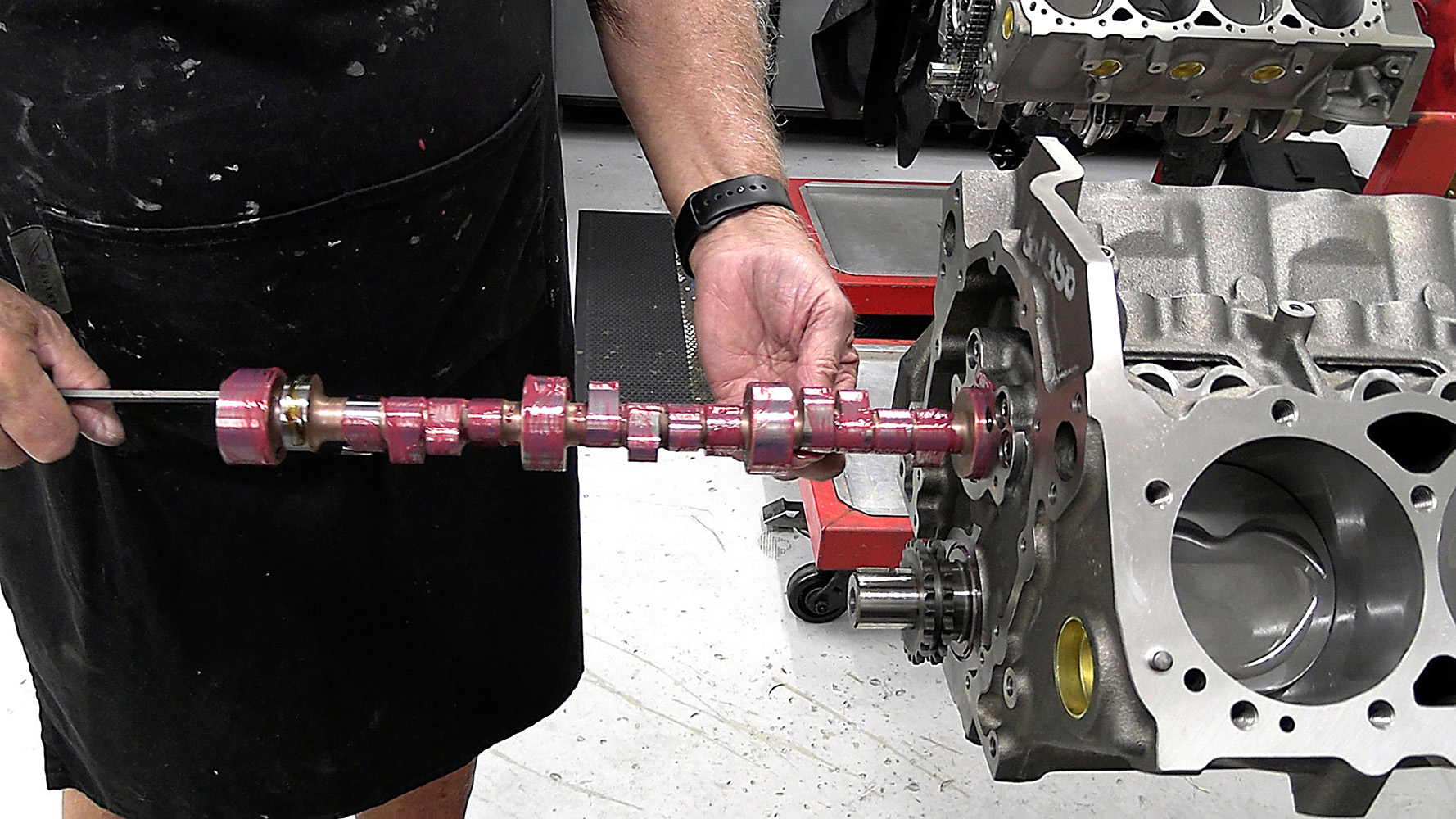

004 Technician installing a camshaft into the 424 small block engine with assembly lube applied
The camshaft is a solid roller ground by Mike Jones of Jones Cam Designs. It has been ground with 250/258 degrees of duration at 0.050 tappet lift with a 112-degree lobe centerline. Lobe lift is 0.410 inches.

The baseline for the build is to maximize the cubic inches for the small-block with both a big bore and extra stroke. A Dart SHP cast-iron block with extra-thick bores help make this possible by allowing 4.125-inch-diameter cylinder bores combined with a 4.00-inch stroke to knock out 427 ci. Squeezing in the extra 1/2 inch of stroke did require a bit of clearancing work along the oil pan rails, but that can easily be done by hand with a die grinder.

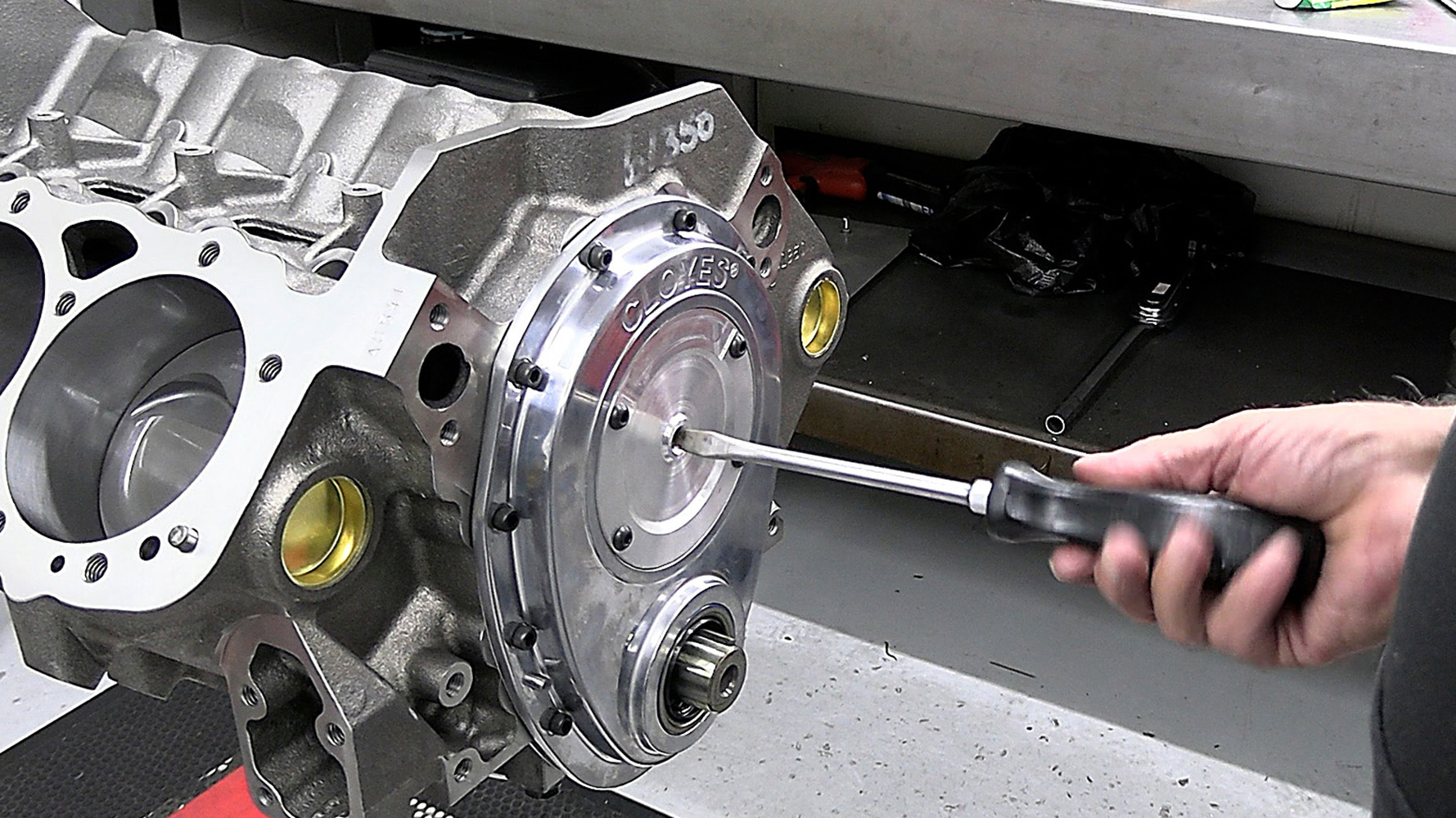

005 Polished front timing cover being secured on the 424 small block engine block
The timing set and the billet timing cover are both from Cloyes. This timing cover has an indexible timing stop that can be moved in or out to adjust camshaft endplay with a screwdriver. Then when Dorton has it perfect, the adjuster is locked down with an external bolt that also keeps dirt and moisture out.

There was also another step to be able to squeeze in the rotating assembly consisting of a Molnar Technologies forged stroker crank and connecting rods and the Mahle pistons. Dorton partnered with Jones Cam Designs to come up with a reduced base circle camshaft that still managed 250 degrees of duration for the intakes and 258 for the exhausts at 0.050 inch of tappet lift along with 0.410 lobe lift. The reduced base circle cam is necessary to create enough clearance so that the big end of the connecting rods can swing by without crashing into anything.

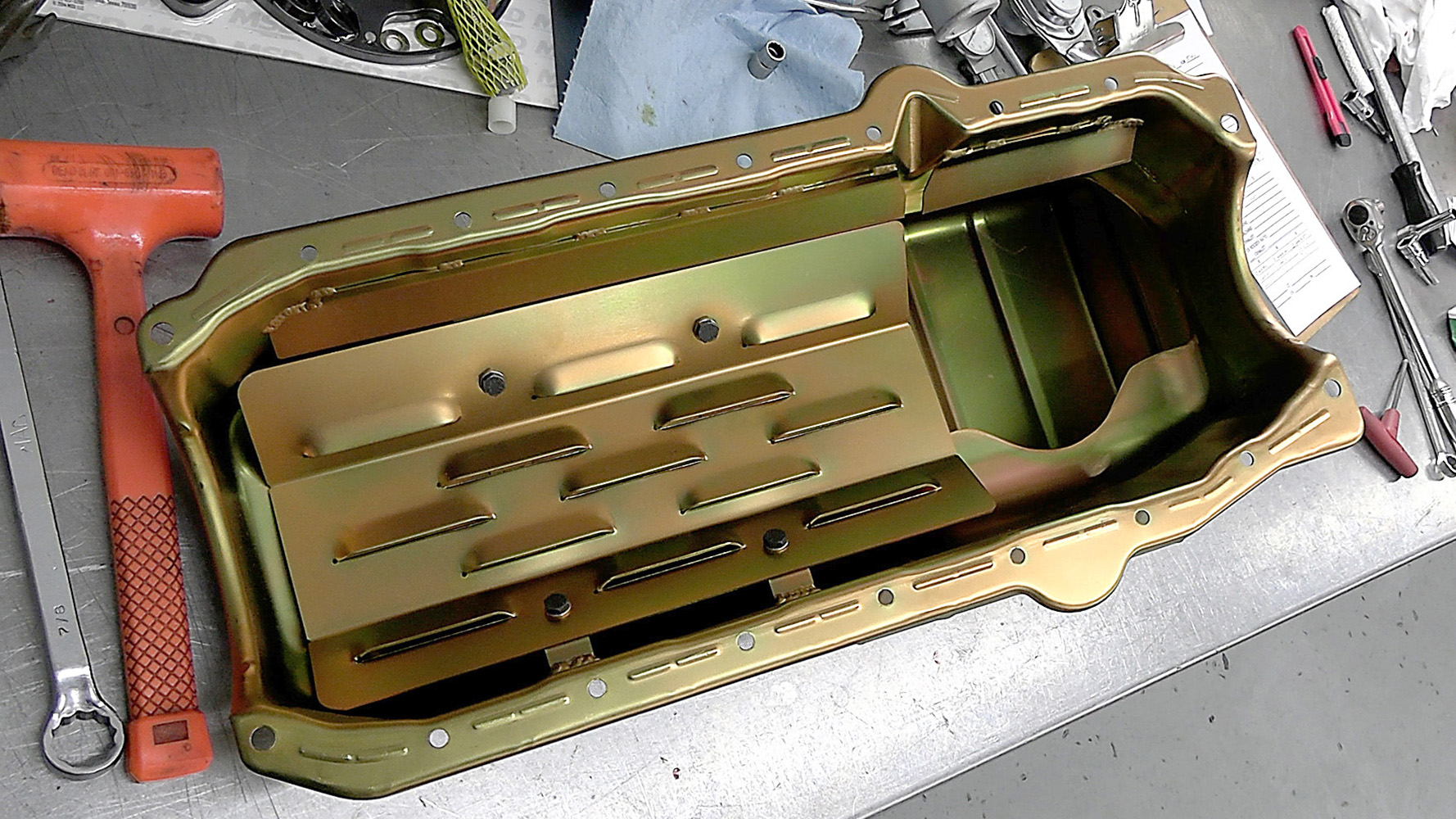

006 High capacity oil pan with baffling for improved oil control ready for installation
Milodon provided a fully fabricated oil pan with a deep sump and quality windage tray to help eliminate windage.

Big cubic-inch bottom ends require cylinder heads that can move a lot of air, so they’ve gone with a set of fully CNC-cut aluminum heads from Air Flow Research (AFR). These heads are designed to be as efficient as possible for traditional 23-degree Chevy heads with 195cc intake runners and 2.050/1.600 intake and exhaust valves with lightweight 8mm stems. At 0.550 valve lift the heads are rated for 280 cfm for the intake ports and 218 for the exhausts (which are raised 0.100 inch). The combustion chambers are sized at 65 cc, making the static compression ratio right at 10.5:1.

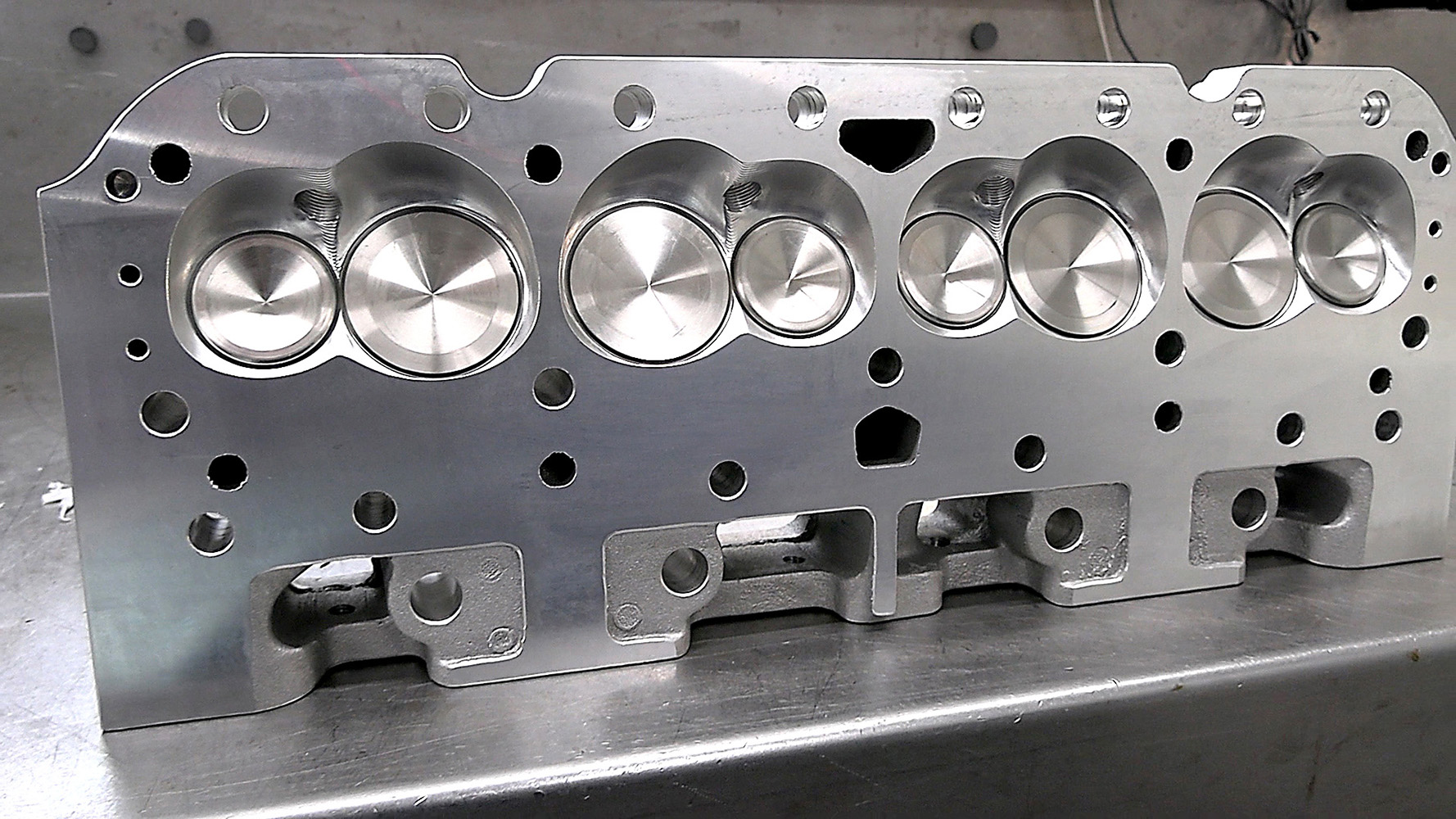

07 Machined aluminum cylinder head showing polished valve surfaces and port design
AFR’s fully CNC-cut cylinder heads ensure plenty of flow to the combustion chambers. The valves are sized at 2.050 for the intakes and 1.600 for the exhausts, and the chambers are sized at 65 cc.

But the cherry on top of the cake for this build is definitely the polished aluminum individual runner intake system. Jim Inglese is famous for his Weber carb’d individual runner intakes. He sold his company, Inglese Induction Systems, years ago, but unfortunately, the new ownership didn’t treat the company with the same love and commitment, and it eventually went under. So, Inglese founded Jim Inglese Eight Stack Systems, building beautiful individual runner intake systems with both Weber-style carburetors and EFI.

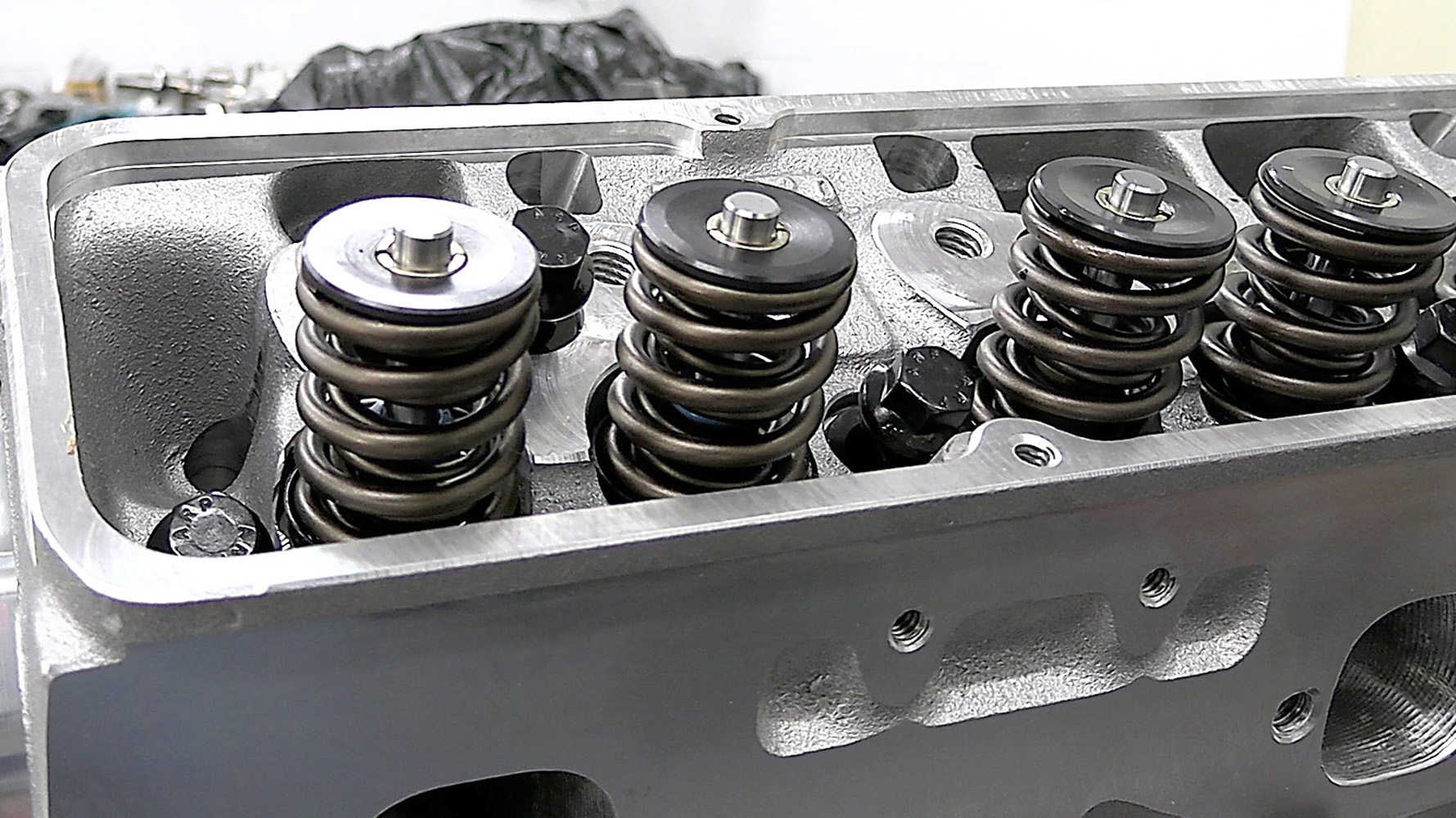

008 Close up of installed valve springs and retainers on the aluminum cylinder head
The valvesprings, retainers, and locks that AFR provided with the heads are all quality products, so they were kept. But to help keep up with the aggressive camshaft, cylinder head specialist Jeff Dorton used a 0.70-thick shim to bring the pressure up a bit to 175 on the seat and 420 over the nose.

Our unit is outfitted with a well-disguised electronic fuel-injection setup that will be controlled by a Holley Terminator ECU. The advantage of an individual runner intake system like this is without the large plenum between the throttle body and the intake valve, the throttle response becomes incredibly quick and responsive. Low-end torque is also maximized.

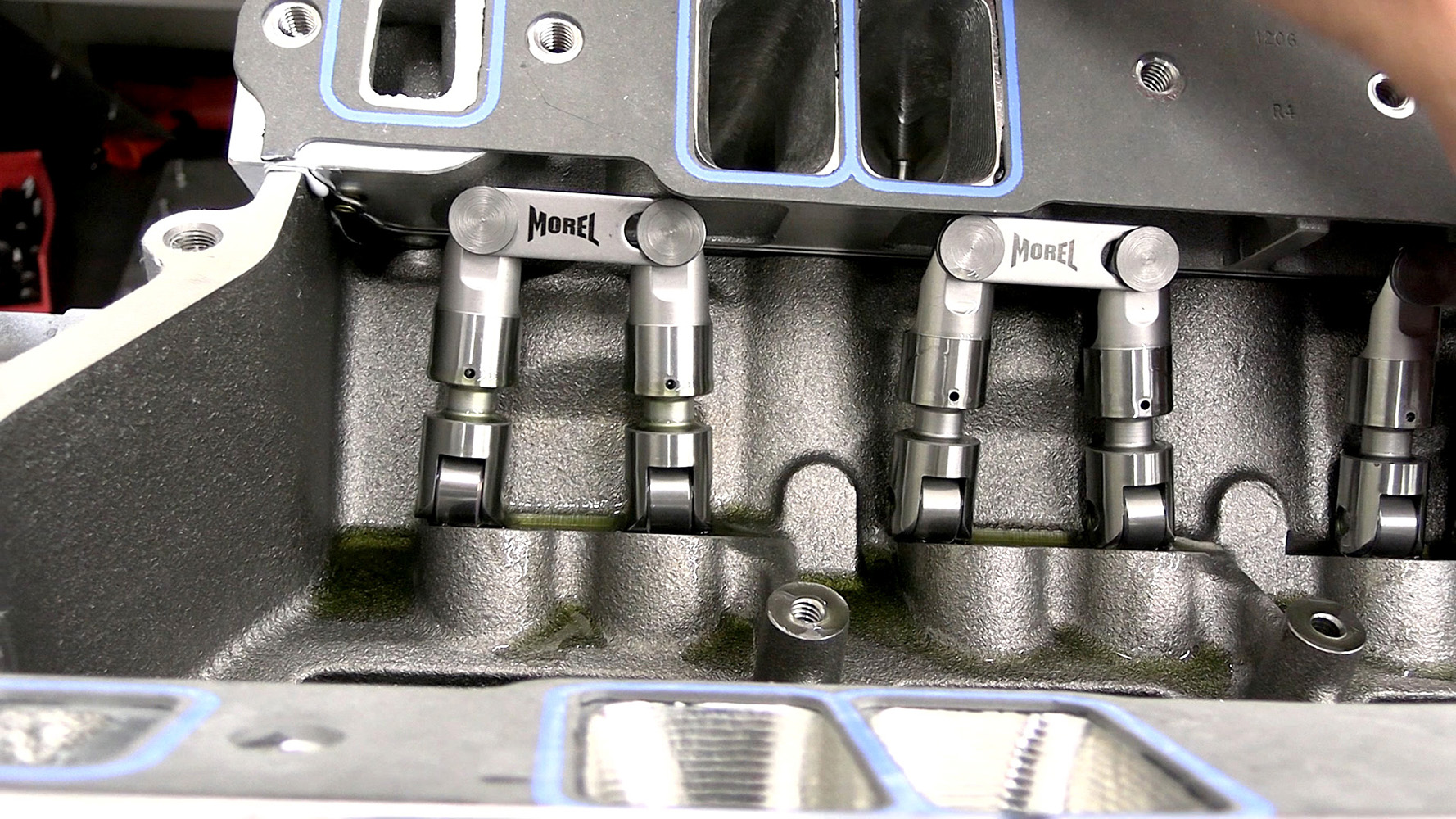

009 Morel roller lifters installed in the block showcasing precise alignment for durability
A set of Morel solid roller lifters will transfer the movement from the cam lobes to the rocker arms.

Plus, the top-end production isn’t too bad, either. On the engine dyno we saw peak torque of 571 lb-ft at 4,700 rpm and 566.5 lb-ft at 5,900. Now, those are both very healthy numbers, but the truth of the matter is Dorton says the 427 with the aggressive cam they are using would make over 600 hp if outfitted with a quality single-plane intake and a big double-pumper four-barrel carburetor—and he knows because he’s built that engine combo before.

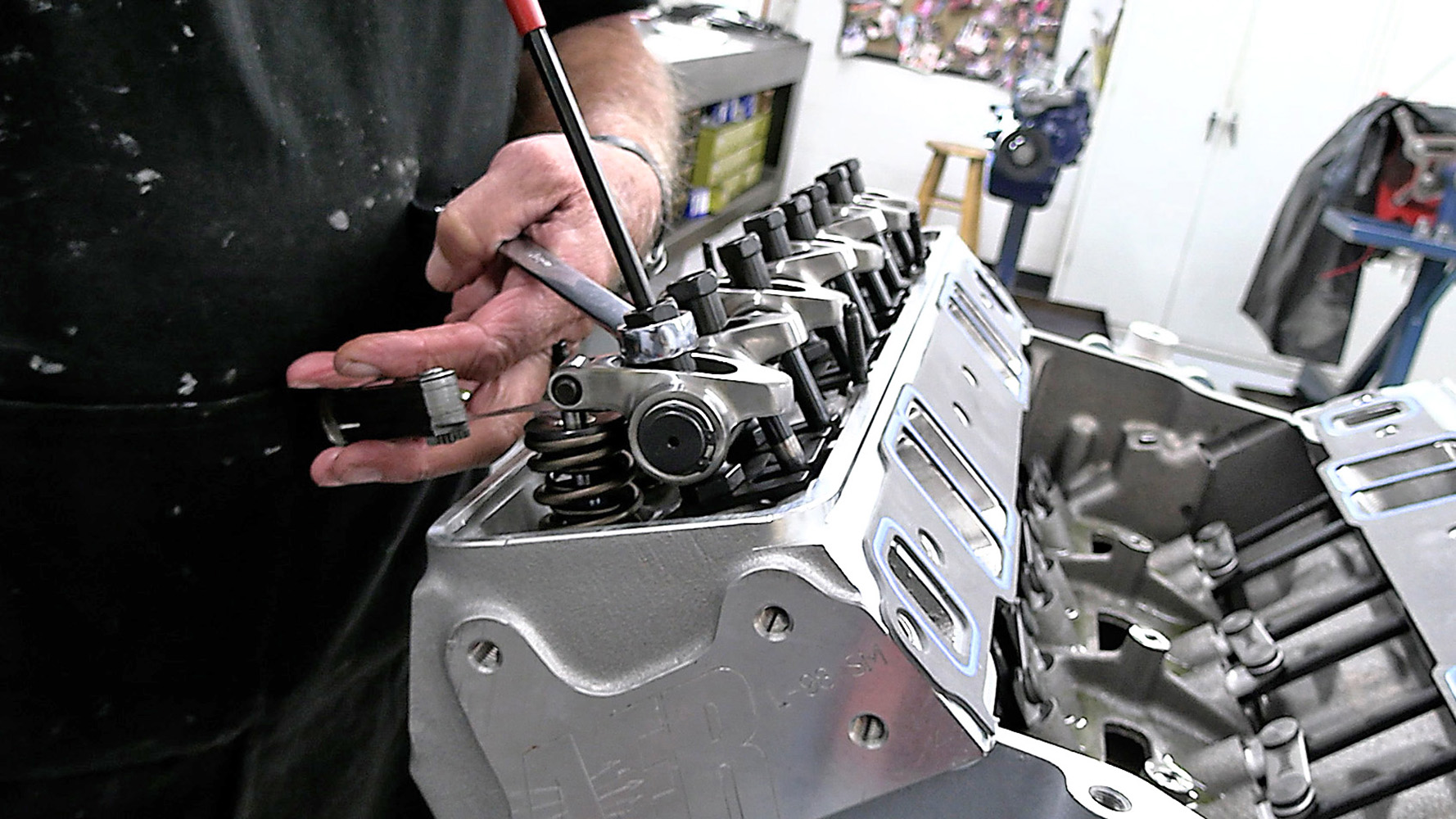

010 Technician fine tuning rocker arm clearances on a fully assembled cylinder head
With a set of 1.5:1 ratio rocker arms, gross valve lift will be 0.615 inches.

Now, this is not an indictment on the Inglese EFI system. The customer provided the unit, and on the dyno it worked exactly as advertised. But there is an unavoidable design issue with the Chevrolet small-block that’s practically impossible to get around: the intake valve arrangement.

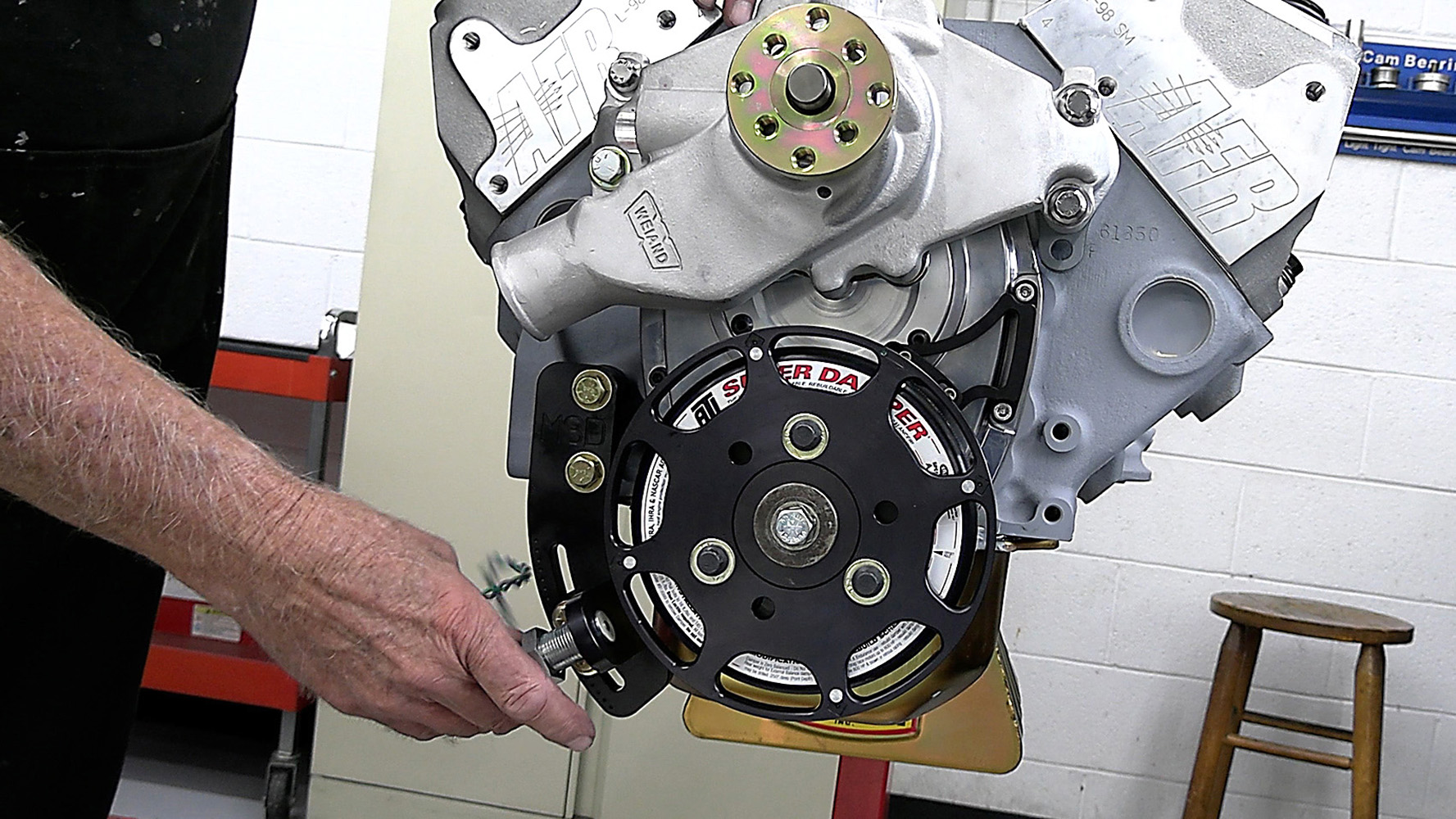

011 Chevy 424 small block engine with water pump harmonic balancer and AFR cylinder heads installed
Since we’ll be depending on a Holley Terminator ECU to manage both fuel inputs and engine timing, it will need to reliably know the crankshaft position. To do that Dorton uses a crank trigger setup from MSD. After a couple of tries we eventually settled on a hall-effect sensor setup.

As you are probably aware, the valve arrangement on a small block is E, I, I, E, E, I, I, E. That pairs the intake valves together. When arranging the 55mm throttle bodies and the even-wider airhorns, the width of the components are enough that both cannot be centered over their respective intake runners. So, they have to be spaced out and the intake runners curved inward on the intake manifold. Now you have the incoming air/fuel charge curving one direction in the intake manifold, slamming into the wall of the intake port once it enters the cylinder head and then having to turn another direction before it reaches the combustion chamber. This isn’t an issue on LS engines (or even Fords) because there are no paired intake runners. It is also not as big a deal on a big-block because even though it does have paired intake runners, the wider 4.84-inch bore spacing (compared to the small block’s 4.400) spaces the ports out enough to significantly help. Plus, on a hot 350 and not the aggressive 427 we’ve built, this combo would likely be just about perfect.

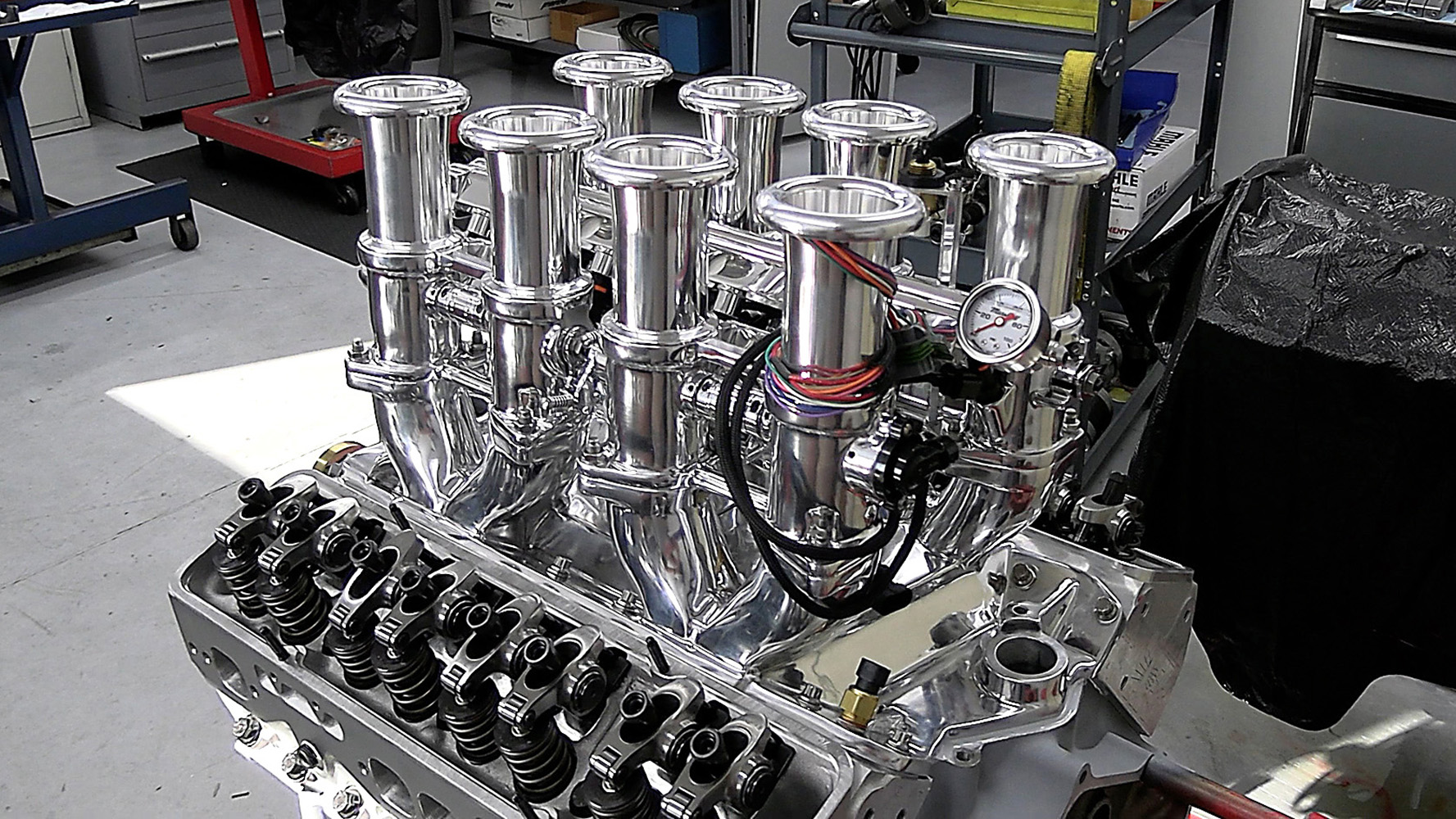

012 Polished individual throttle bodies on the Chevy 424 engine with visible fuel pressure gauge and wiring

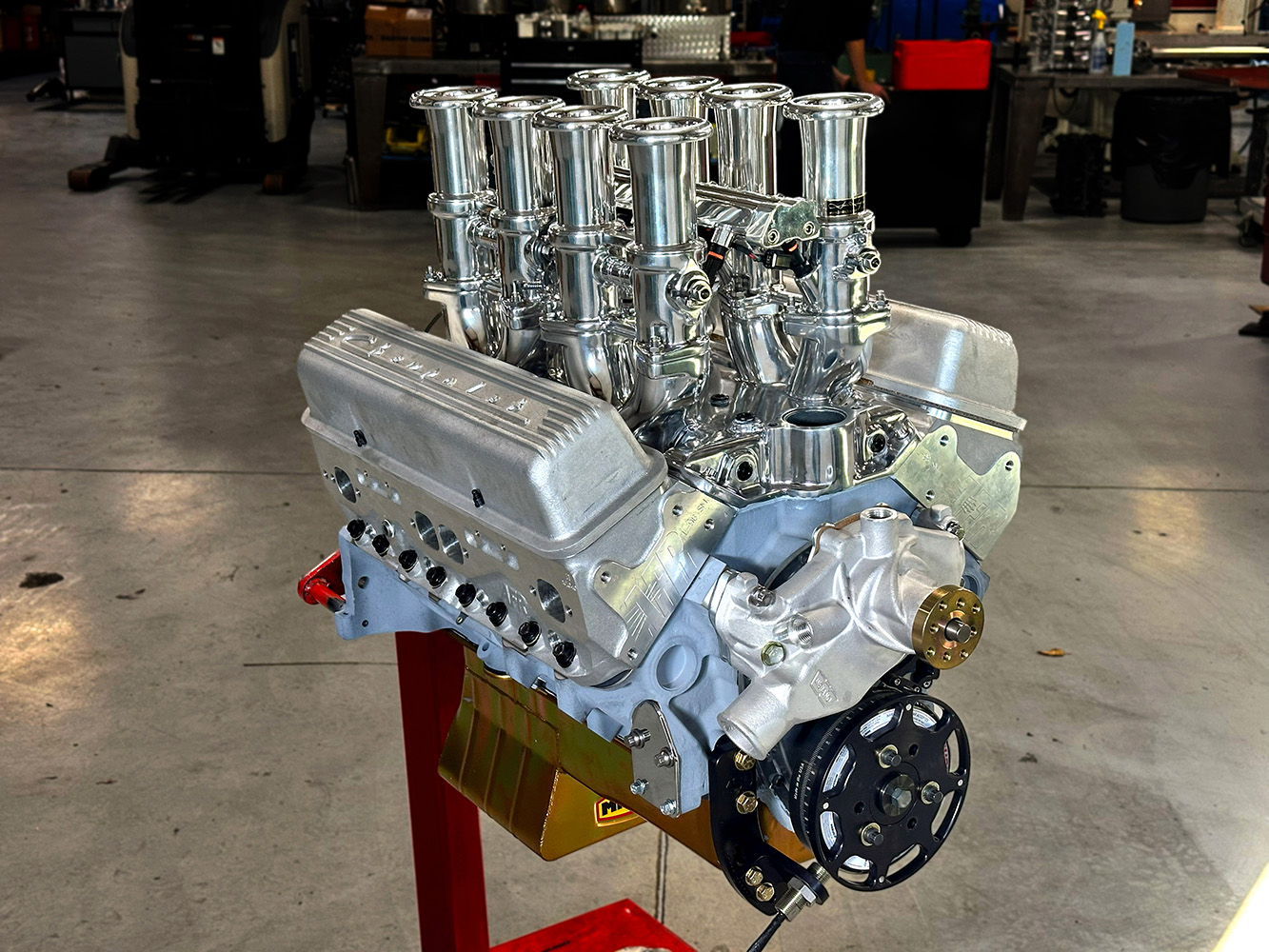

The Jim Inglese Eight Stack injection system looks old school but it is completely modern and outfitted for EFI. The beautiful airhorns are CNC-cut from aluminum and available in a variety of sizes in case you need something shorter to fit underneath the hood.

Dorton pointed out that even though the peak power is slightly down, in a car you probably would notice the low-end torque much more than the extra horsepower up top. For the typical hot street machine, it’d likely be more enjoyable. Plus, you just can’t deny those great looks. This is definitely going to be one fun street brawler!

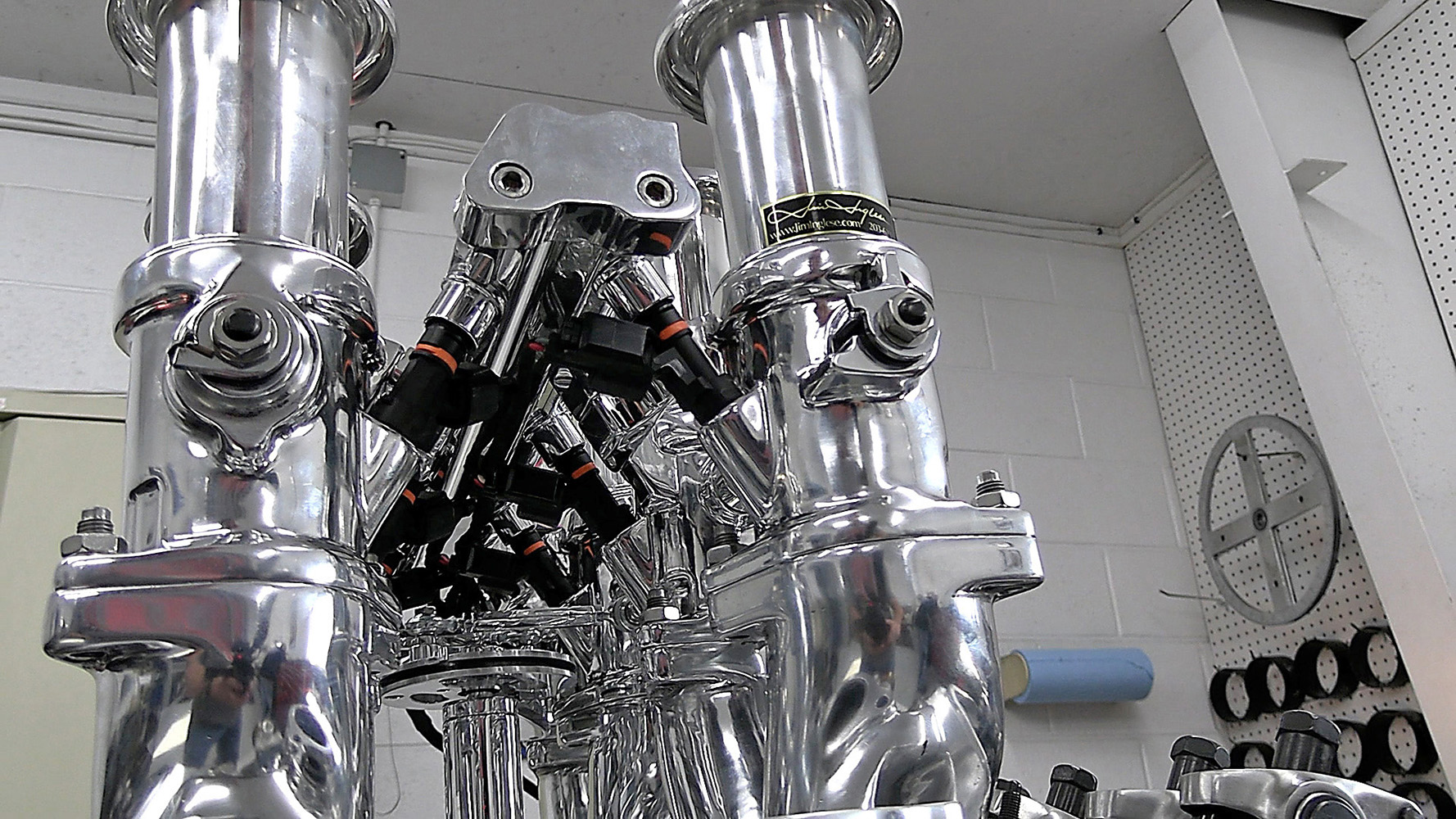

013 Close up of polished throttle bodies with integrated fuel injectors and connectors
The 57-lb/hr injectors are centrally mounted and cleverly hidden underneath the billet fuel rails. Underneath the injectors you can see the Capstan pulley that allows the throttle cable to open all eight butterflies at the same time and same rate.

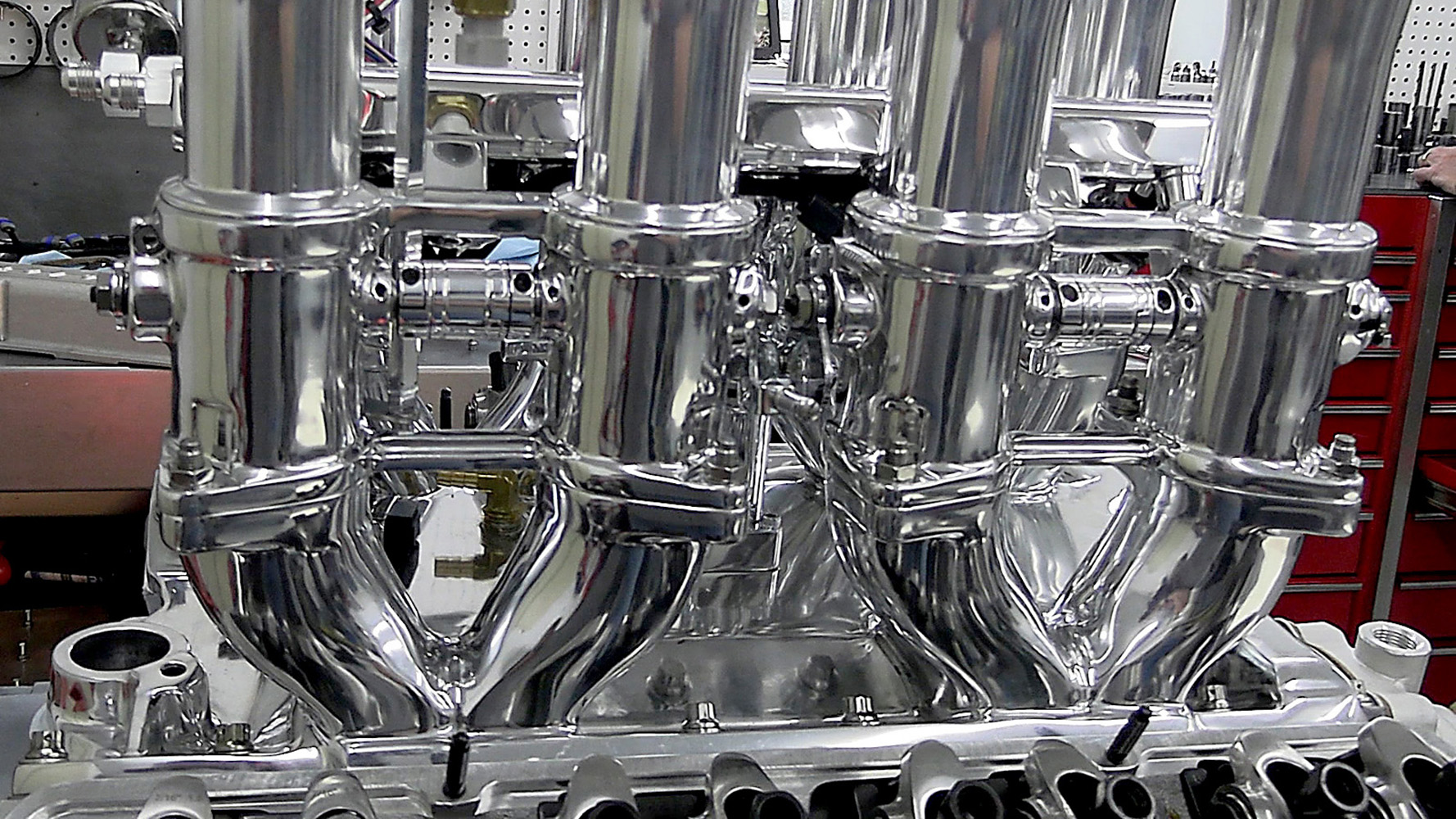

014 Polished intake manifold with connected throttle bodies and precision linkage
This photo shows one of the drawbacks of trying to develop an individual runner intake system for a small-block Chevy. The paired intake ports in the cylinder heads mean the intake runners have to neck down quite severely. Ideally, you would like the airflow path from the butterfly to the combustion chamber to be as straight as possible, and this by necessity must be more convoluted than a single-plane intake manifold. Still, the individual runner setup is great at producing near instant throttle response and excellent low-end torque.
015 Technician adjusting valves and inspecting rocker arms on the 424 small block engine
The way the runners are set up, there really is no room for a traditional distributor and cap. With this EFI setup we’ll be running an MSD cam position sensor. We’ll also be running an LS-style individual coil setup that will be remotely mounted so there are no plug wires to run back here.

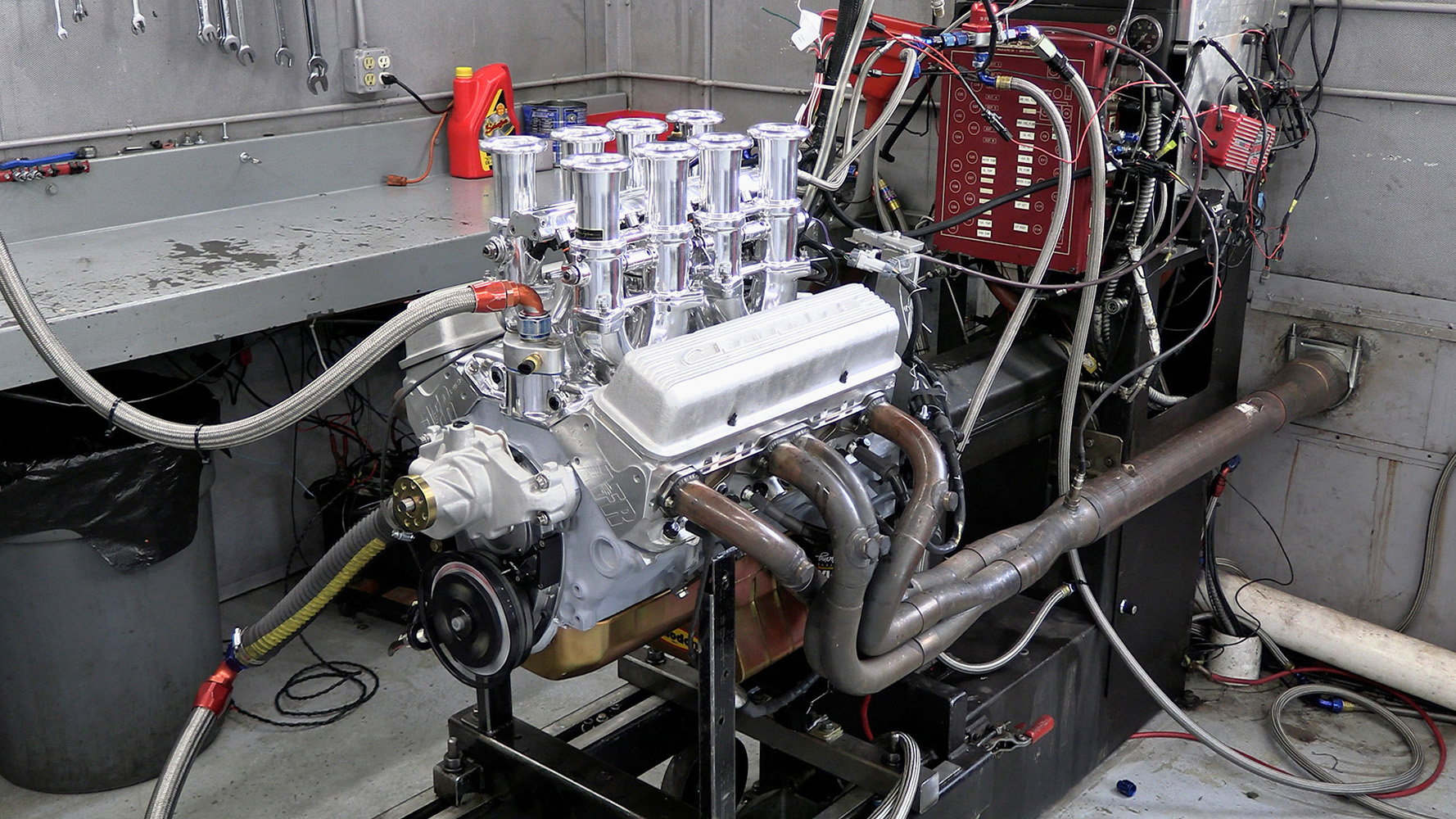

016 Fully assembled Chevy 424 small block engine on a dynamometer ready for performance testing
On the dyno the Inglese setup ran perfectly with a Holley Terminator ECU handling engine controls. It is really hard on an engine to dyno it at extremely low rpm levels, so our pull began at 4,500 rpm. Still, we saw peaks of 571 lb-ft of torque at 4,700 rpm and 566.5 hp at 5,900.
