Retro-Fitting Roadster Quarter Panels To A ‘34 Ford Coupe

Adapting Repro-Roadster Quarters to a Bill Sather coupe

By Gerry Burger

Now, we all know Texas is horse country. Yessiree Bob, Texans love their horses almost as much as they love horsepower. Bill Sather is a horsepower-lovin’ Texan through and through, and while Texas is known for quarter horses, Sather was having his latest steed quartered—as in adding a pair of new quarter panels. Yes, his 1934 Ford coupe was in need of some rust and wreck repair in the quarter panel region so he left it to the team at BBT Fabrications to fit his coupe with a pair of reproduction quarter panels from Steve’s Auto Restorations (SAR). BBT Fabrications’ Troy Gudgel would also befit the new Steve’s Auto Restorations rear panel between the quarters and below the decklid. Finally, they would be building a very cool rolled pan.

- Advertisement -

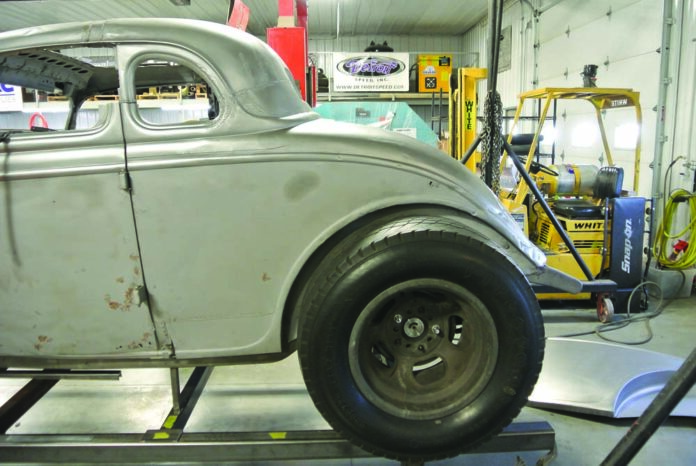

02 Bill Sather Coupe has some lower quarter panel rust that needs to be repaired
The Sather coupe had some lower quarter panel rust that had been improperly repaired in years past and the rear corner had suffered light contact during a minor wreck, also part of this hot rod’s history.

Read More: Ford Never Had This in Mind When Designing the 1971 Ford Ranchero

So far this sounds like pretty standard fare, but of course, there is always a hitch … and we’re not talking about a place to park your horse (Burger, I’m not sure Texans “park” their horses. —B.B.). The hitch is this, SAR doesn’t make reproduction steel quarter panels for the 3 or 5-window coupe. They do make a very nice reproduction of the 1934 Ford roadster quarter-panel and as it says on their website, these quarter panels can be trimmed to fit coupe bodies. Actually, adapting the ‘34 roadster quarters to the coupe body involves trimming and some forming in areas for a perfect fit, but it’s a high-quality part and a great start. At this point, we also need to confess this tech piece is slightly out of a sequence of the actual build. We have already shown how BBT Fabrications “repaired and re-chopped the top” on this coupe (Modern Rodding Mar. ’21 issue, “CHOP CHOP”). These quarter panels were installed prior to the top repair.

03 Prior hot rodder replaced the panel with spot welds
After blasting the body to the bare metal this patch panel was exposed. It appears to be a quality patch panel but unfortunately, a prior hot rodder had overlapped the panels and secured them with a series of spot welds. Because of this repair and other damage to the rear of the quarter panel, Troy Gudgel decided all-new quarter panels were in order.

Now for a little Ford fun fact, it seems ol’ Henry didn’t bother stamping the “crow’s foot” in the roadster quarter panel. The closed cars had these stiffening beads stamped into the inner fender well, but the roadster left the factory with smooth inner fender wells. We like to think Henry left them that way for a smooth look on future Ford Highboy Roadster, but regardless of the reasoning (no doubt cost was a consideration), to make a roadster quarter panel believable on a 5-window coupe it needs the crow’s feet rolled or stamped into the inner fender well. BBT Fabrications managed that by making a die set from plywood and using their Pullmax to form the beads within the dies.

- Advertisement -
04 The original quarter panels were removed without modifying the inner quarter panel
The original quarter panels were carefully removed while maintaining the inner quarter panel structure. This assured the rain gutters and inner braces would maintain the proper opening for the decklid.

After extensive crossbracing, the body with 1-inch box tubing, the actual fitting of the new SAR quarters to the coupe body began. The first step is removing most of the original quarter panels but leaving several inches of sheet metal behind the B-pillar and also several inches of original tin below the window body bead. The SAR repro roadster quarter panels would initially be fitted over this original sheet metal and the two pieces are then each carefully trimmed for a perfect fit.

05 Exposed now is the cross-brace holding the 1934 Ford Coupe
As you can see the coupe was extensively cross-braced before any cutting began. There are several inches of the original quarter panel remaining below the body bead and also on the B-pillar/doorjamb.

Read More: Pieced Together ‘34 Ford Highboy Coupe

The quarter panels were fit to a reproduction panel below the decklid, also from Steve’s Auto Restorations. This area would take a bit of slicing and dicing to get a perfect blend as the adapted quarters round the corner and mate with the center panel. Obviously, it was all well within the abilities of BBT Fabrications and in the end, the coupe was well quartered. But wait there’s more …

06 The rear lower bracing of the quarter panel is still intact
From the rear we can see the rain gutters remain intact along with the original lower corner quarter panel bracing panels.

No real hot rodder would just bring a chopped highboy coupe back to stock configuration. With that thought in mind, BBT Fabrications grabbed the nearest sheet of 18-gauge steel and proceeded to form a very cool rear-rolled pan. We like the fact that it is a bolt-on rear panel, as adding a seamless rolled pan can sometimes make the lower body look a bit long. The body seam breaks up what would otherwise be an expanse of sheet metal. The rear pan is actually more angular than rolled, another nice detail. The final touch is mounting a set of 1937 Ford taillights to the bottom of the pan. With the decklid latched, gapped, and fitted, the entire car is now beautifully metal finished. The final step will be finished bodywork and mile-deep black paint. MR

- Advertisement -

SOURCES
BBT Fabrications
(217) 586-5699
bbtfabrications.com

Steve’s Auto Restorations
(503) 665-2222
stevesautorestorations.com
