South City Rod and Custom: Jurado’s ’56 F100

Behind The Scenes Of Tony Jurado’s ‘56 Ford F100 Build

By Bill Ganahl   –   Photography by the Author

Surely by now most of you are familiar with South City Rod and Custom, regardless of whether you’re a regular reader or this is your first issue. Bill Ganahl and crew consistently put out a mean end product, so we figured why not get you behind the scenes on one of their latest projects—Tony Jurado’s ’56 Ford F100—to see the proof in the pudding, as it were. Mr. Bill was kind enough to provide some details regarding what their master plan is with the converted big-window Effie … take it away, sir!

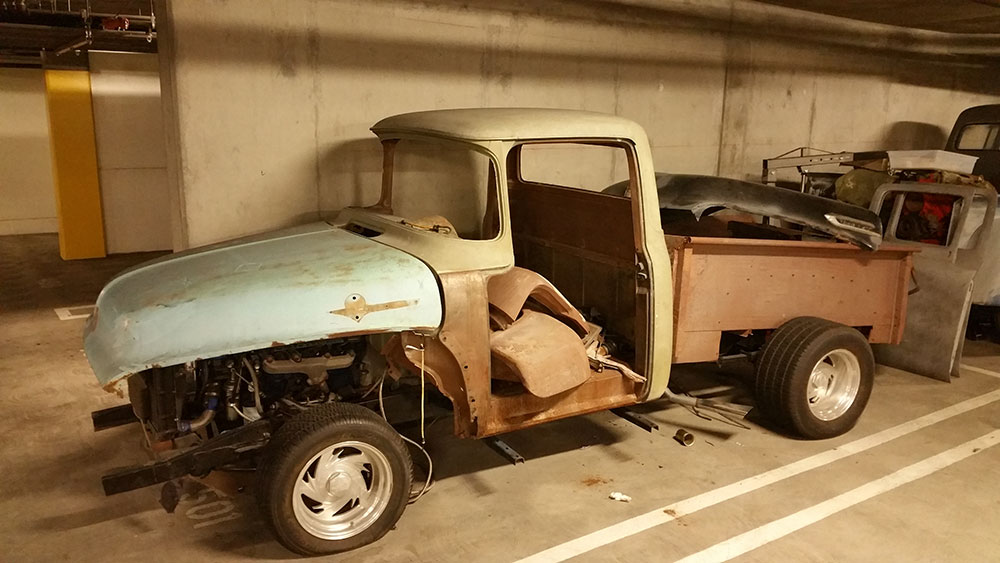

02 Tony Jurado 1956 Ford F100 upon arrival

Read More: Premier Street Rod Built 1968 C10

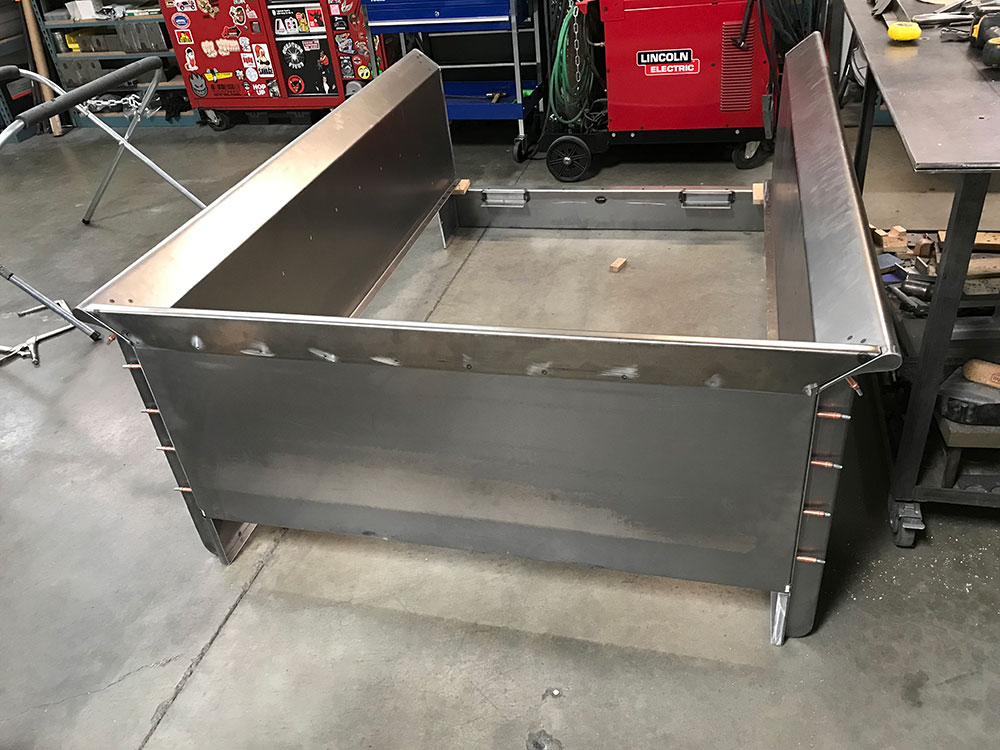

“We started with a fairly nice cab and some sheet metal and not much else. We knew we were going to use an Art Morrison chassis and a 5.0 coyote engine, so all we wanted was a good cab. We also knew we could get a completely new bed, which are always beat up on these old pickup trucks, so we ordered an aftermarket one from Dan Carpenter, which will have the floor raised 3 inches to accommodate the lowered Art Morrison suspension.

03 The Ford F100 sits on an Art Morrison Chassis

“To begin with, we patched up some rust and small body damage, including body mounts. [Jurado] also decided to convert the cab to a big rear window, so we opted to change the entire back of the cab with a replacement from LMC truck parts since there was some damage to the rear panel below. We also cut out the old firewall and fabbed a new bead-rolled panel to frame the 5.0 Coyote engine.

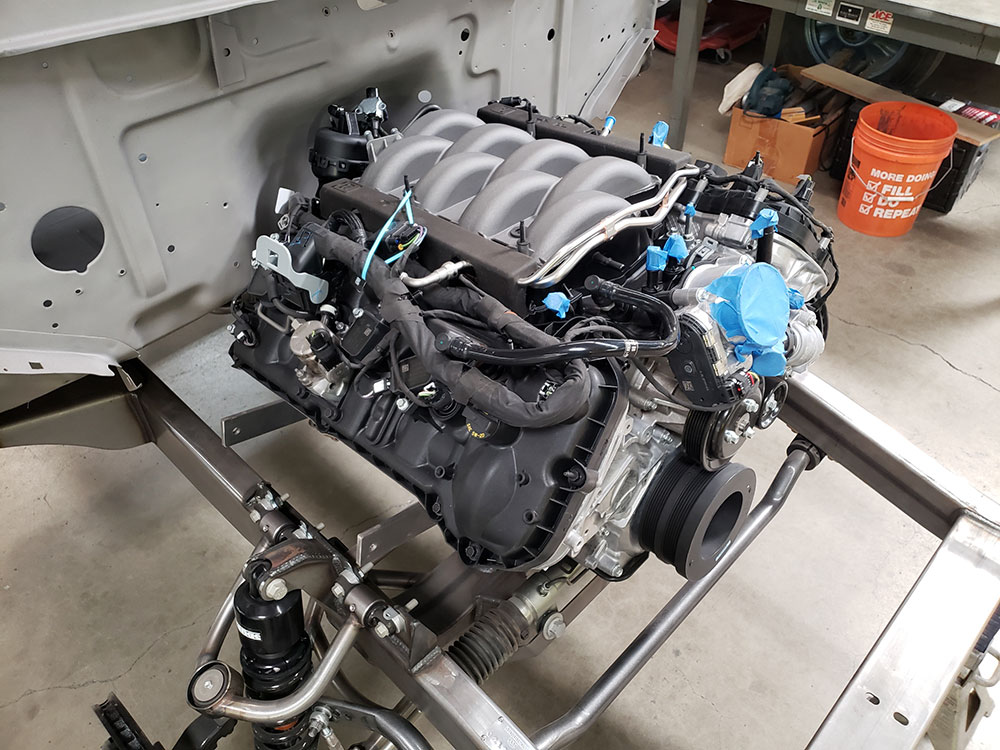

04 5 0 Coyote Engine sits in on the aftermarket chasis

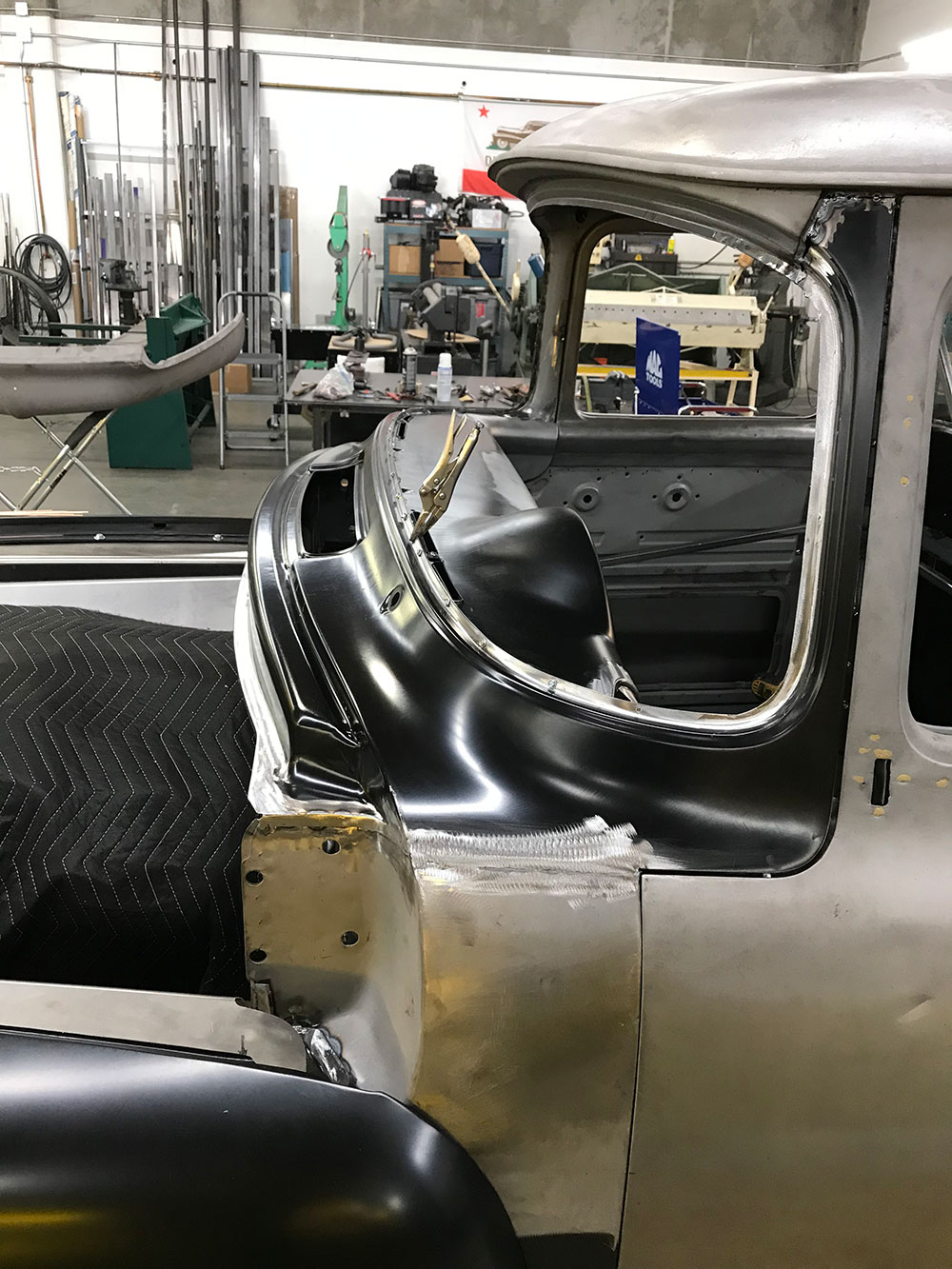

“For body mods, we channeled the cab over the frame slightly, for which we had to cut the floor and fab a transmission tunnel over the TREMEC 5 speed manual transmission. We also lowered the pedal assembly the same amount as the cab so the pedals would come through the toeboard at the stock height. We also sectioned the hood the same amount as the cab channel and raised the front fenders up, which required sectioning the front cowl sides.

06 The suspension is handled by Art Morrison

Read More: Brian Schutte’s 1951 Chevy Truck: A Look At The Metal Magic

“We converted the door latches to bear claws with a kit from Mid Fifty F-100 Parts that we modified slightly to fit. We also replaced the dashboard completely and fit the corners better than stock to the dash and doors. The original dash was hacked up pretty bad, and someone had attempted to fill the glove box door.

18 LMC truck parts provided the body panels this 56 Ford was missing

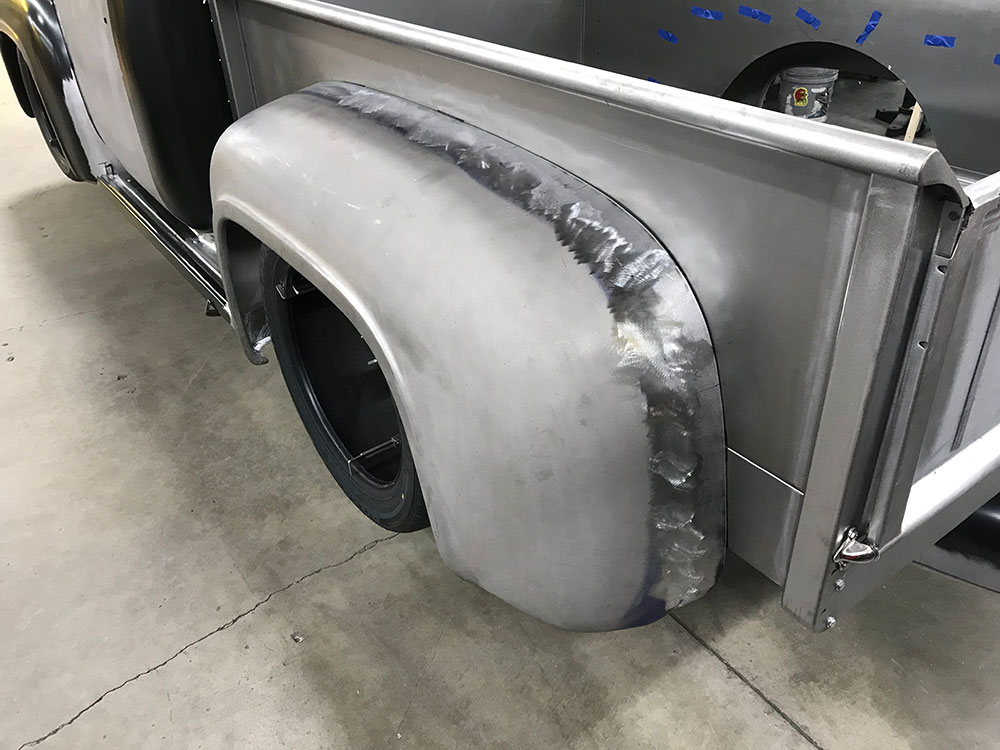

“The tailgate has a hidden latch kit installed and we fabbed angled side panels to ‘picture frame’ the insert. We also fabbed end caps for the upper side rails for a finished look. The rear fenders are widened and we added 3-inch inner tubs to accommodate 12-inch-wide Schott wheels in the rear.”

28 here s a look at the truck s custom tail gate for this project truck

Read More: Matt Girard’s 1972 F-100 Carries on a Family Tradition

Want to see more just like we do? Stay tuned for more behind-the-scenes coverage as well as the finished product once it’s all said and … done!

Source
South City Rod & Custom
(510) 783-6300
southcityrodandcustom.com
